Home >> Chrysler >> 1993 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp Control Module >> Without Daytime Running Lights

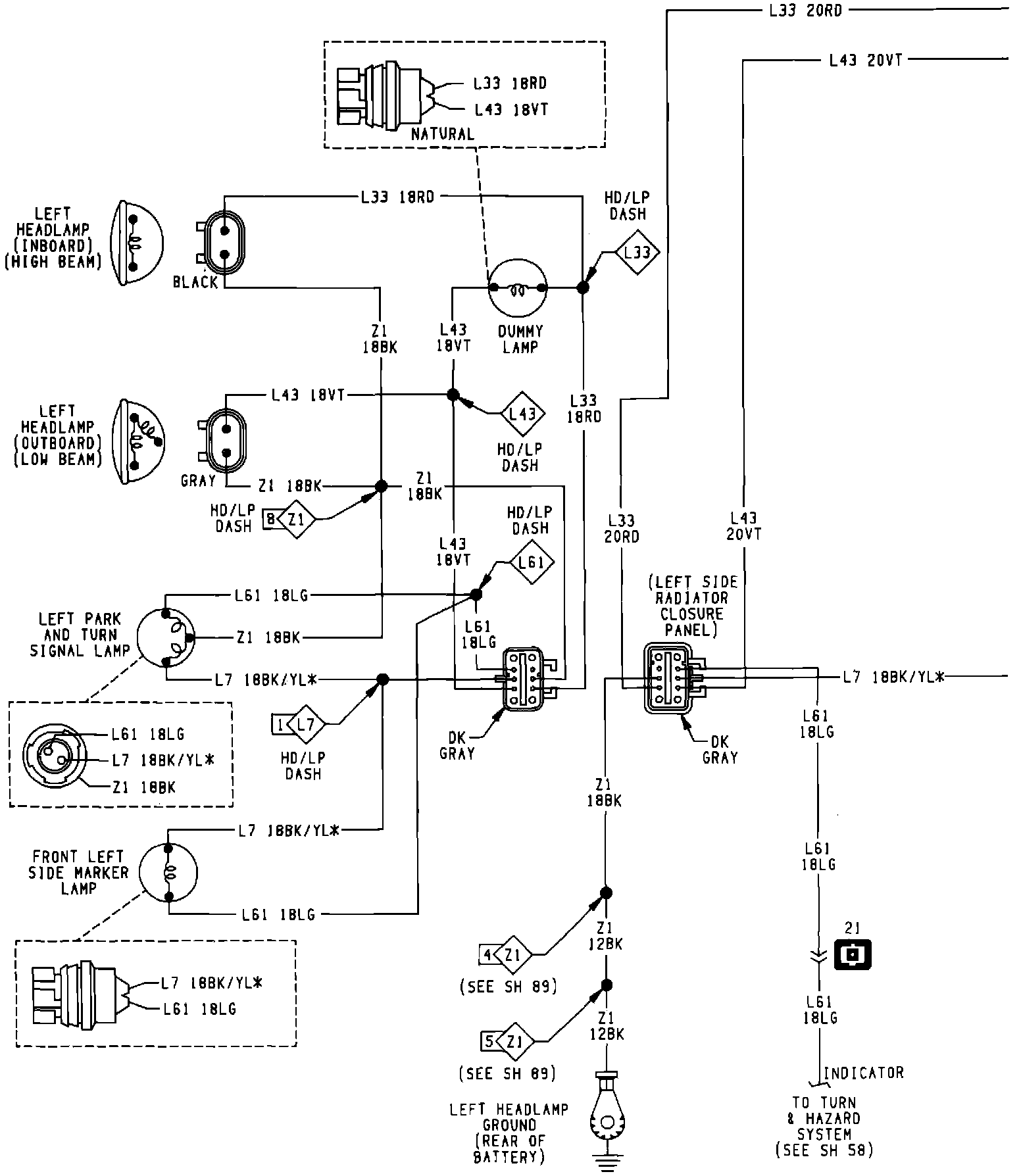

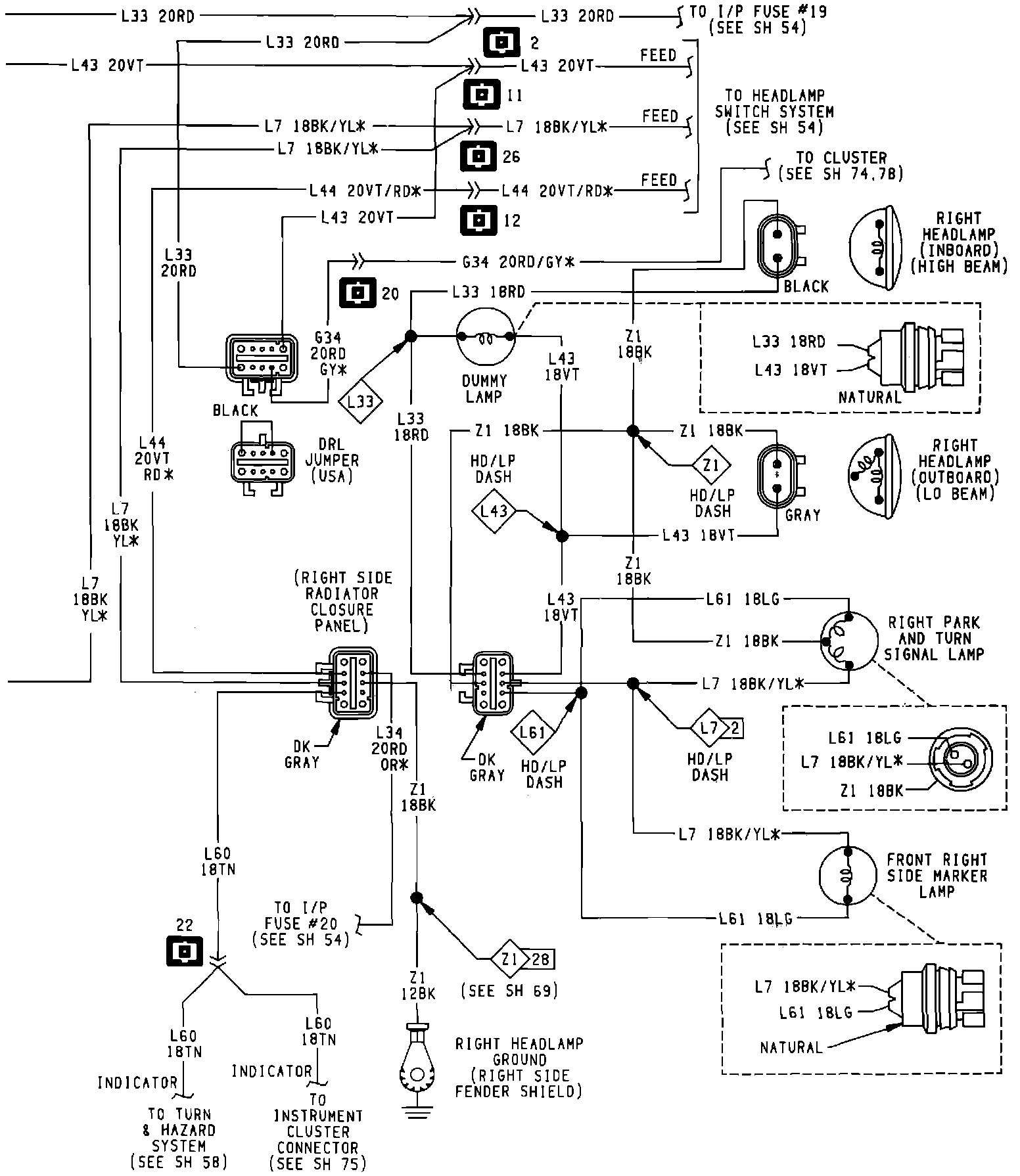

Without Daytime Running Lights
