Relay Box: Locations

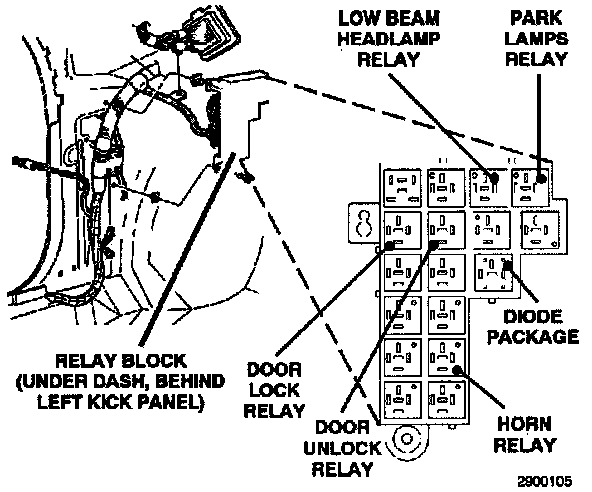

Relay Block:





The Relay Block is located behind the drivers side kick panel.
