Test 45A Diagnosing Problem During Wash Cycle

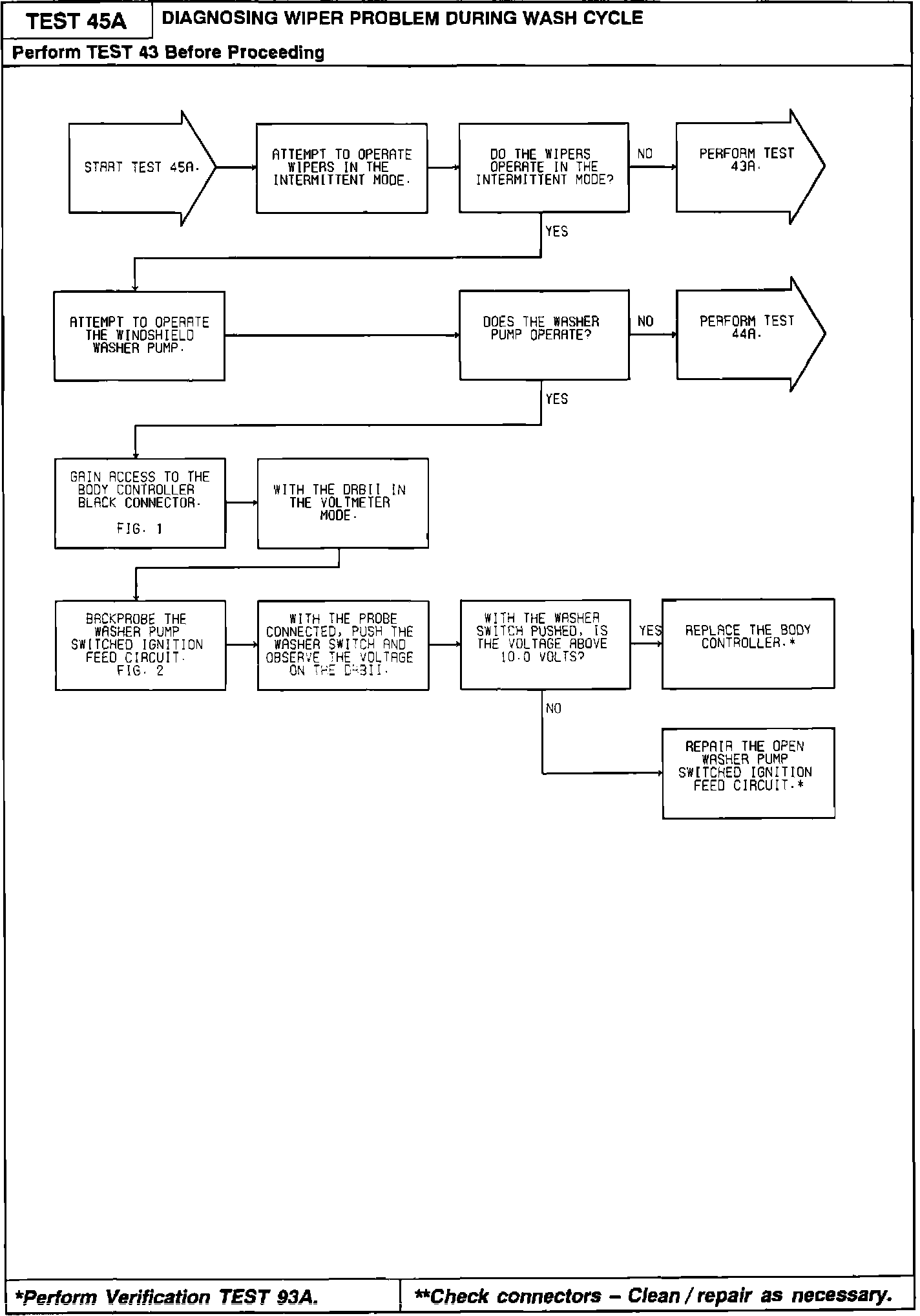

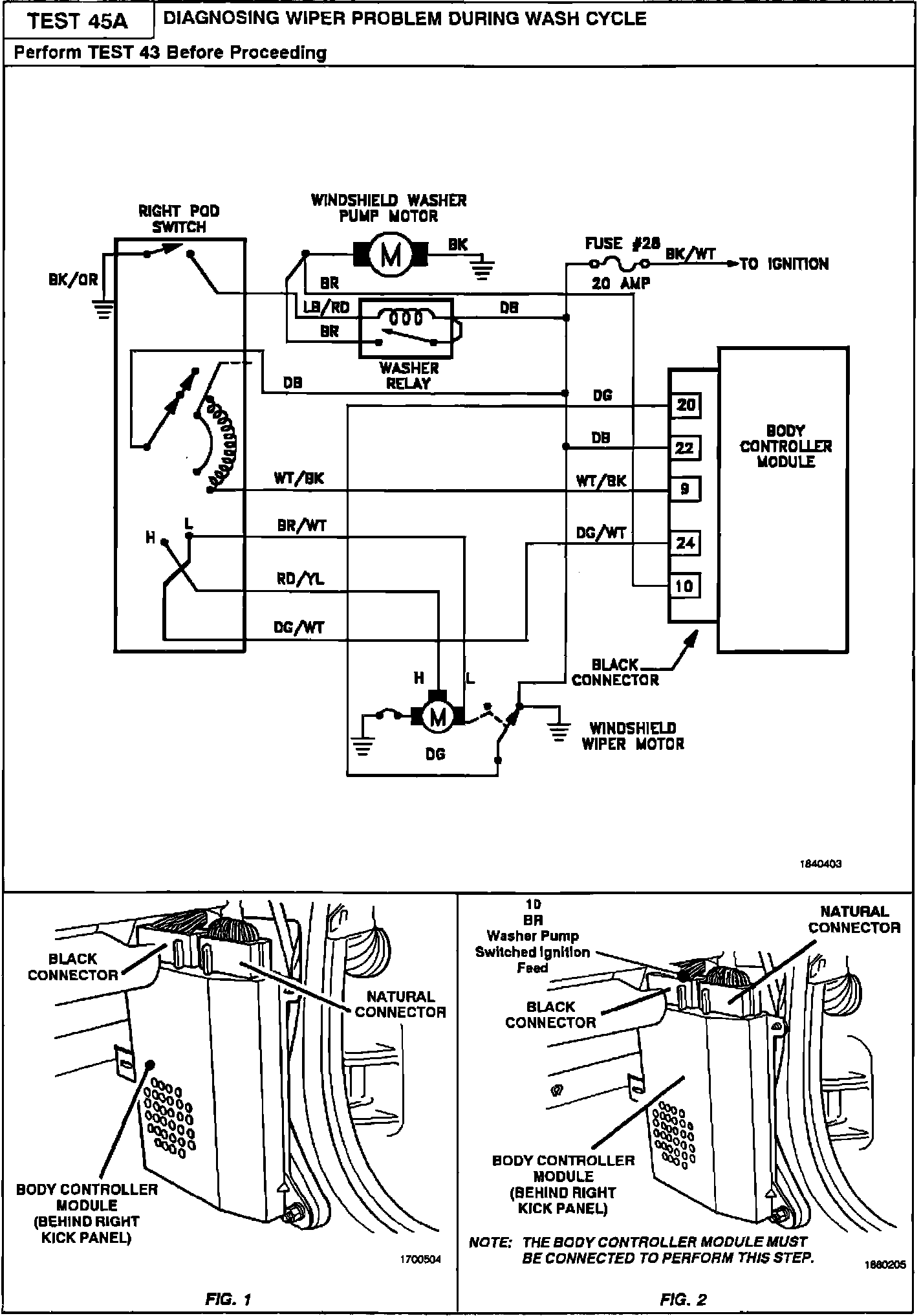

Test 45A - Diagnosing Problem During Wash Cycle (Part 1 Of 1):



Test 45A - Diagnosing Problem During Wash Cycle (Part 1 Of 1):

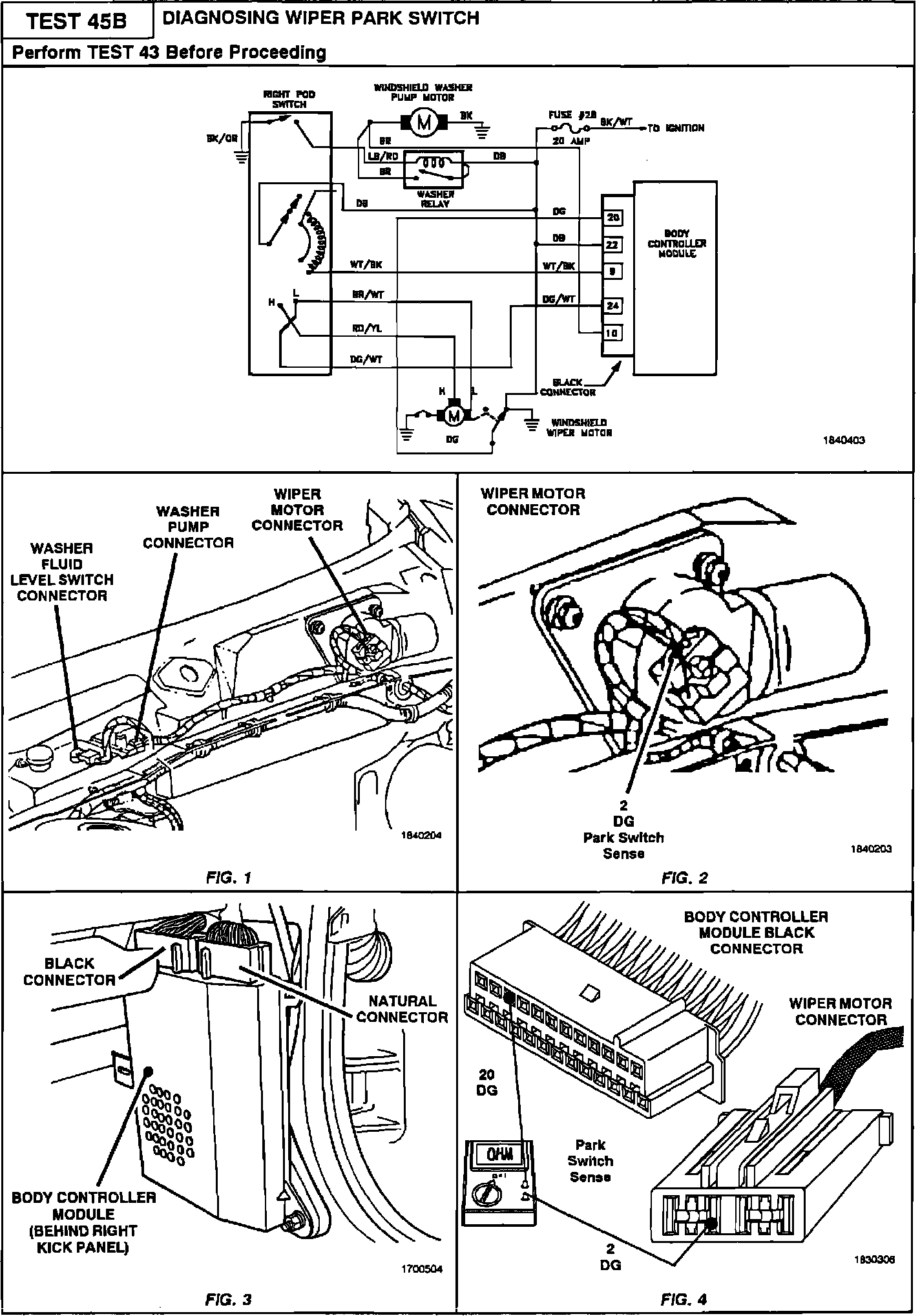

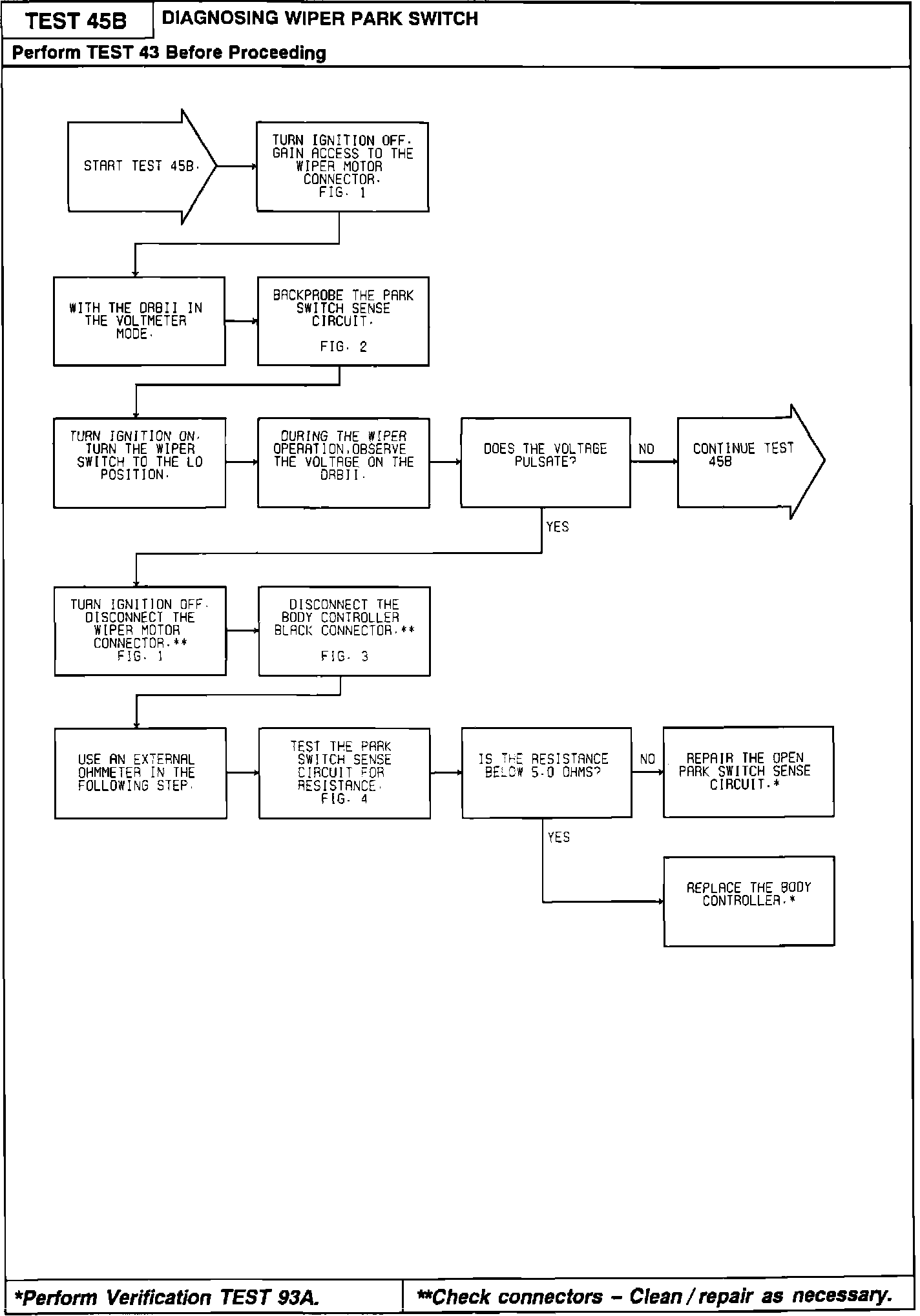

Test 45B - Diagnosing Wiper Park Switch (Part 1 Of 2):



Test 45B - Diagnosing Wiper Park Switch (Part 1 Of 2):
