Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1993
>>
Lebaron Coupe L4-135 2.2L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antitheft and Alarm Systems
>>
12A Repairing Left Door VTSS Disarm Sense Circuit
12A Repairing Left Door VTSS Disarm Sense Circuit

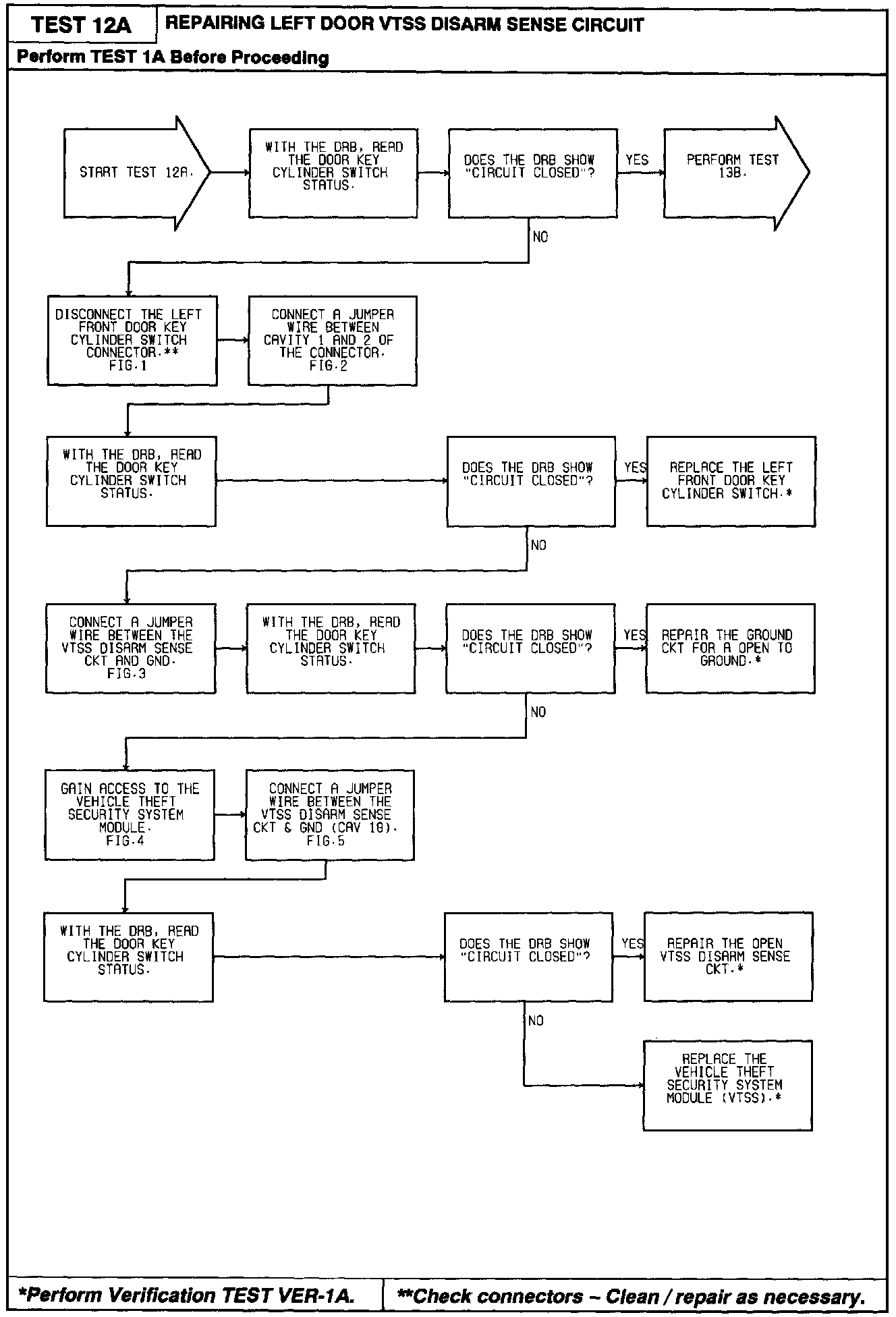

Diagnostic Chart:

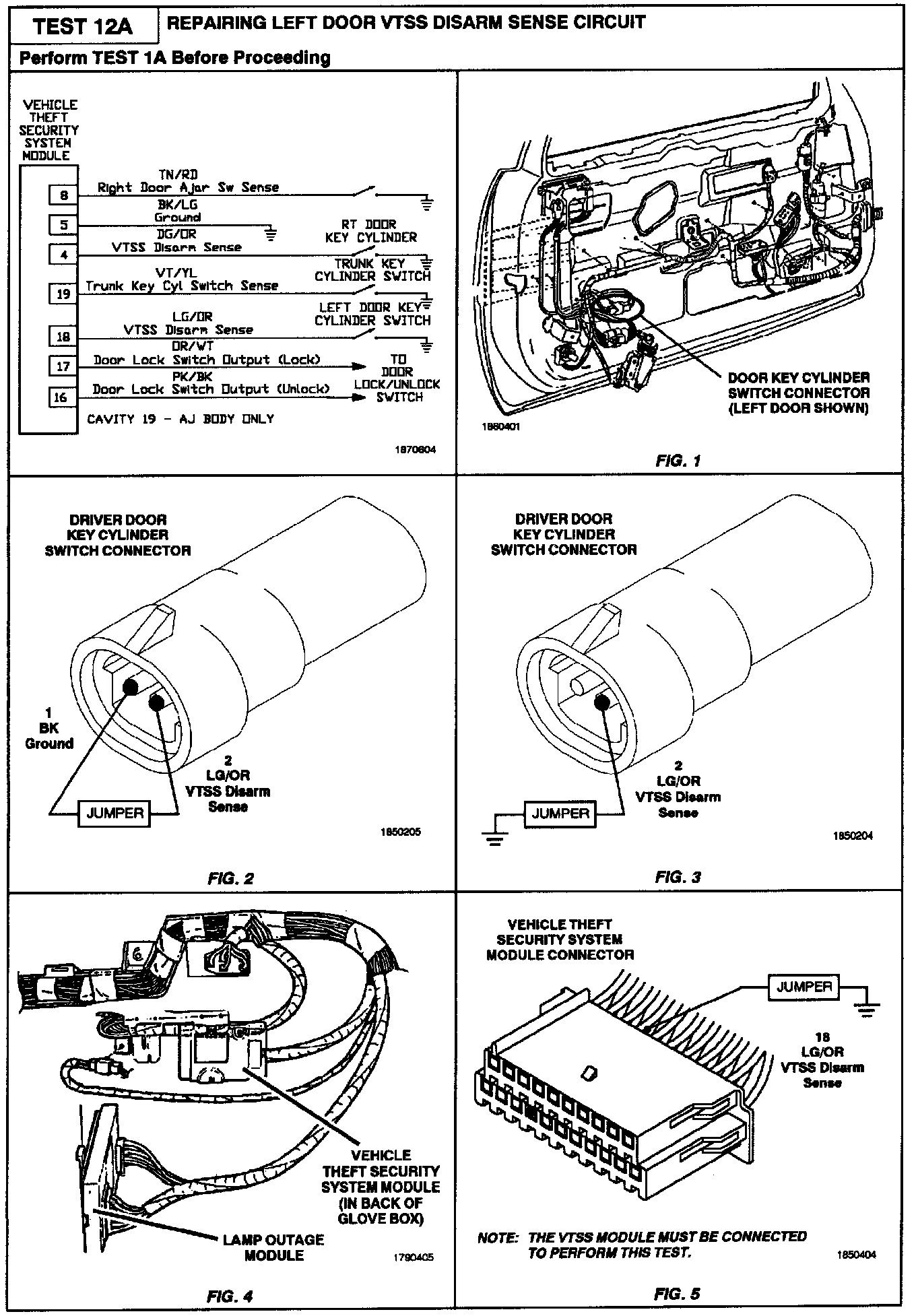

Related Images:
