Lebaron Sedan L4-153 2.5L SOHC VIN V Flex Fuel
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Harness Routing
>>

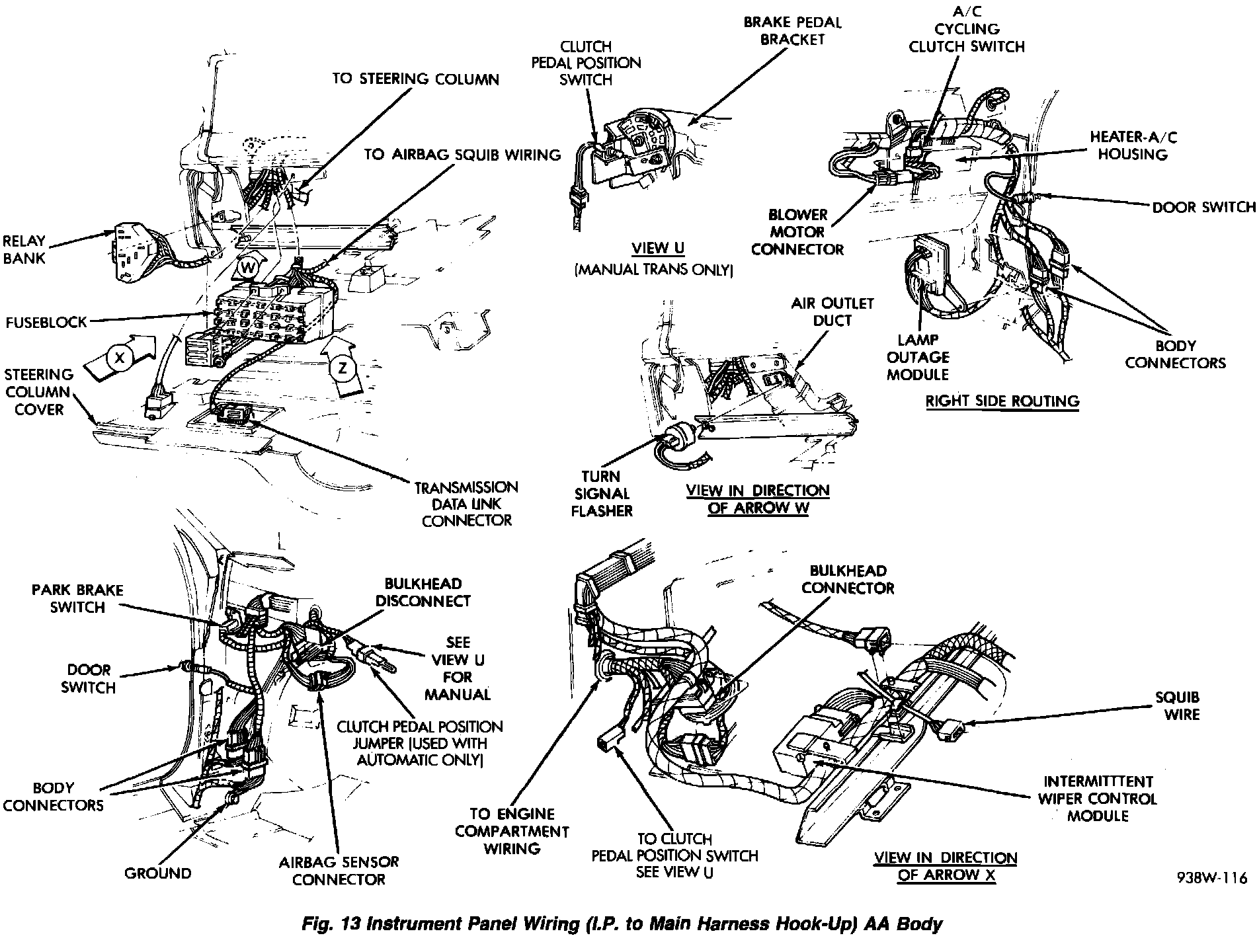

Instrument Panel to Main Harness
Instrument Panel to Main Harness
