Wiper and Washer Systems

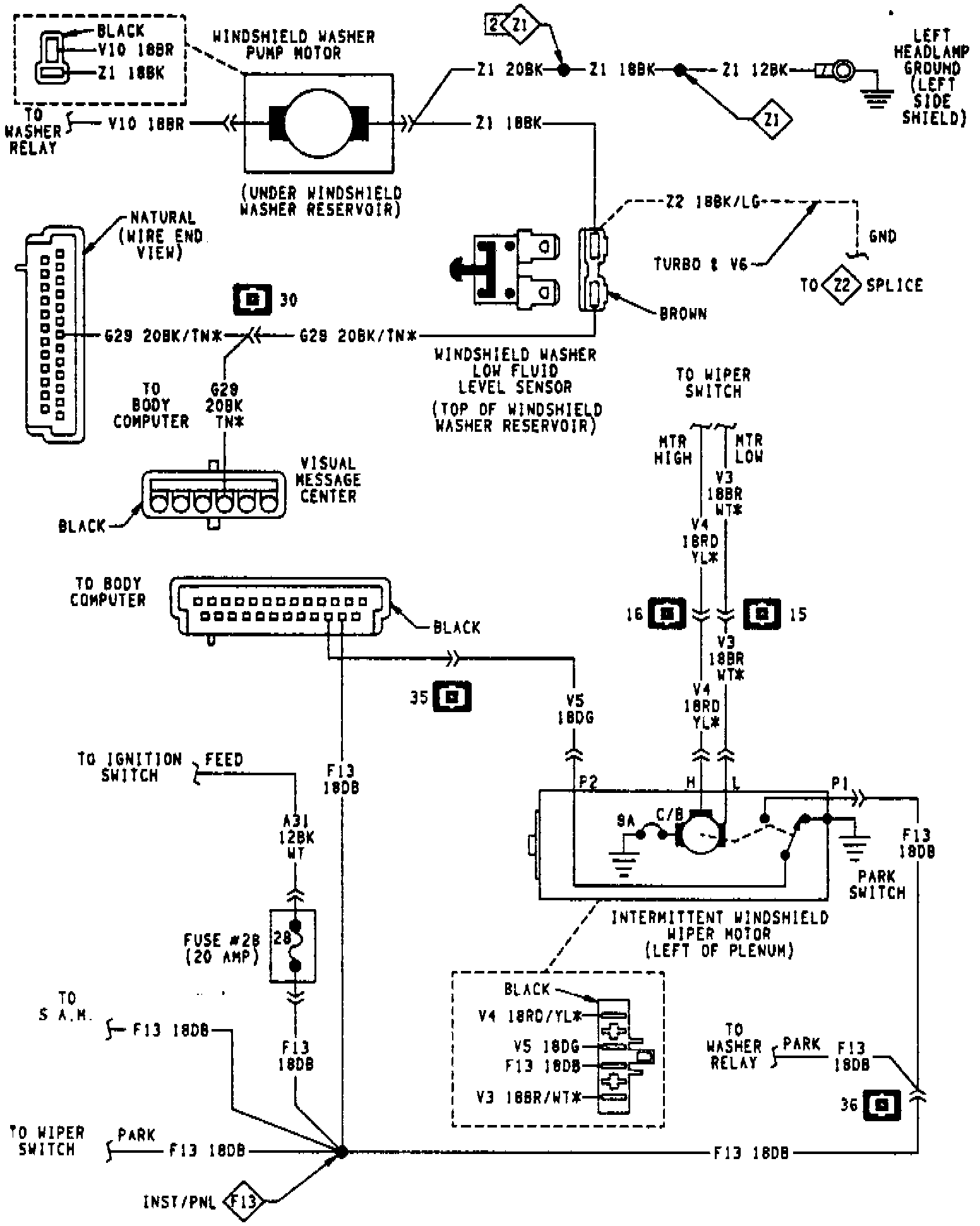

Fig.45 Wiper System Wiring Diagram Part 1 of 2:

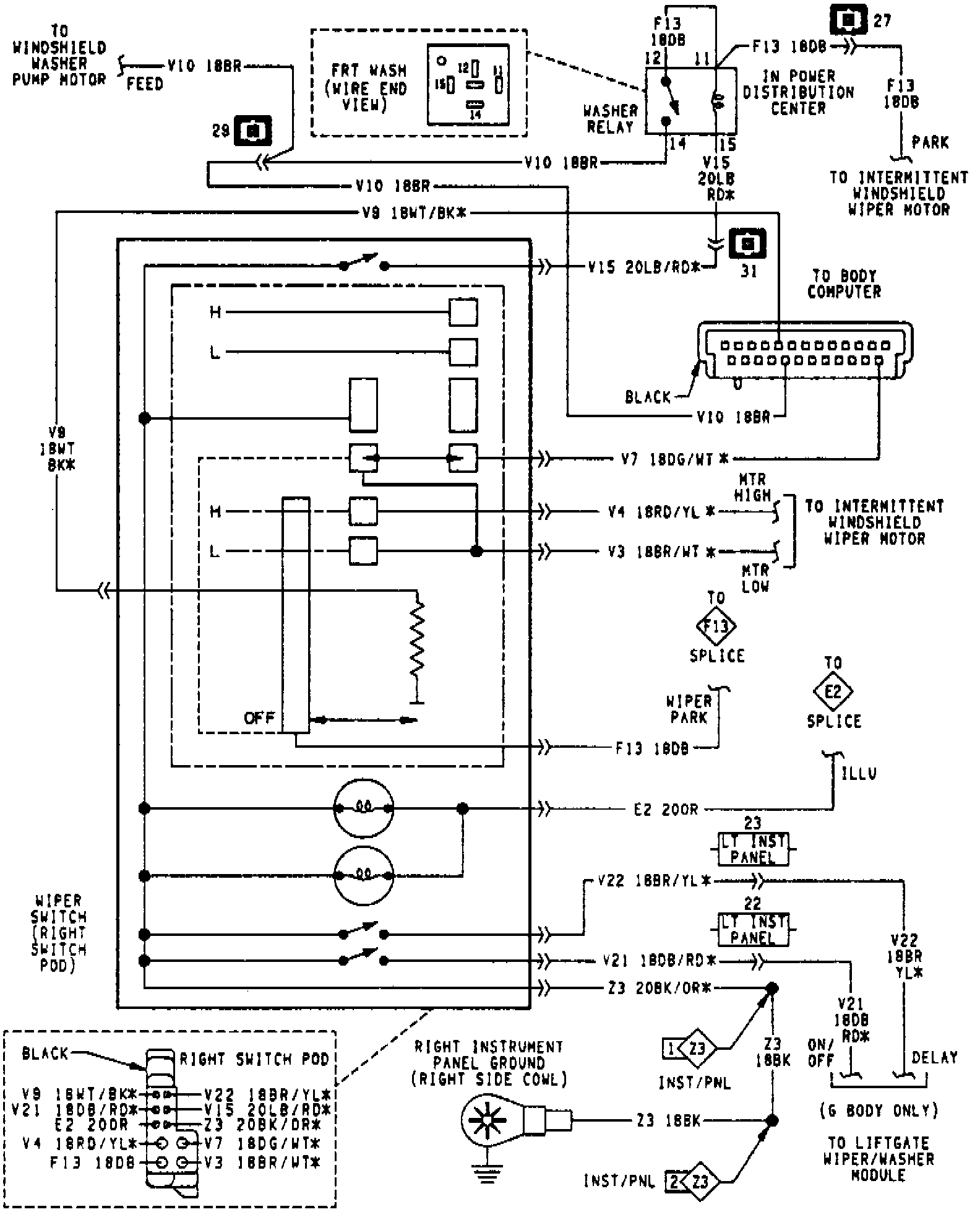

Fig.45 Wiper System Wiring Diagram Part 2 of 2:



Intermittent Wiper System -- Part 1:



Intermittent Wiper System -- Part 2:
