Home >> Chrysler >> 1994 >> Lebaron Sedan V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 6

Part 6

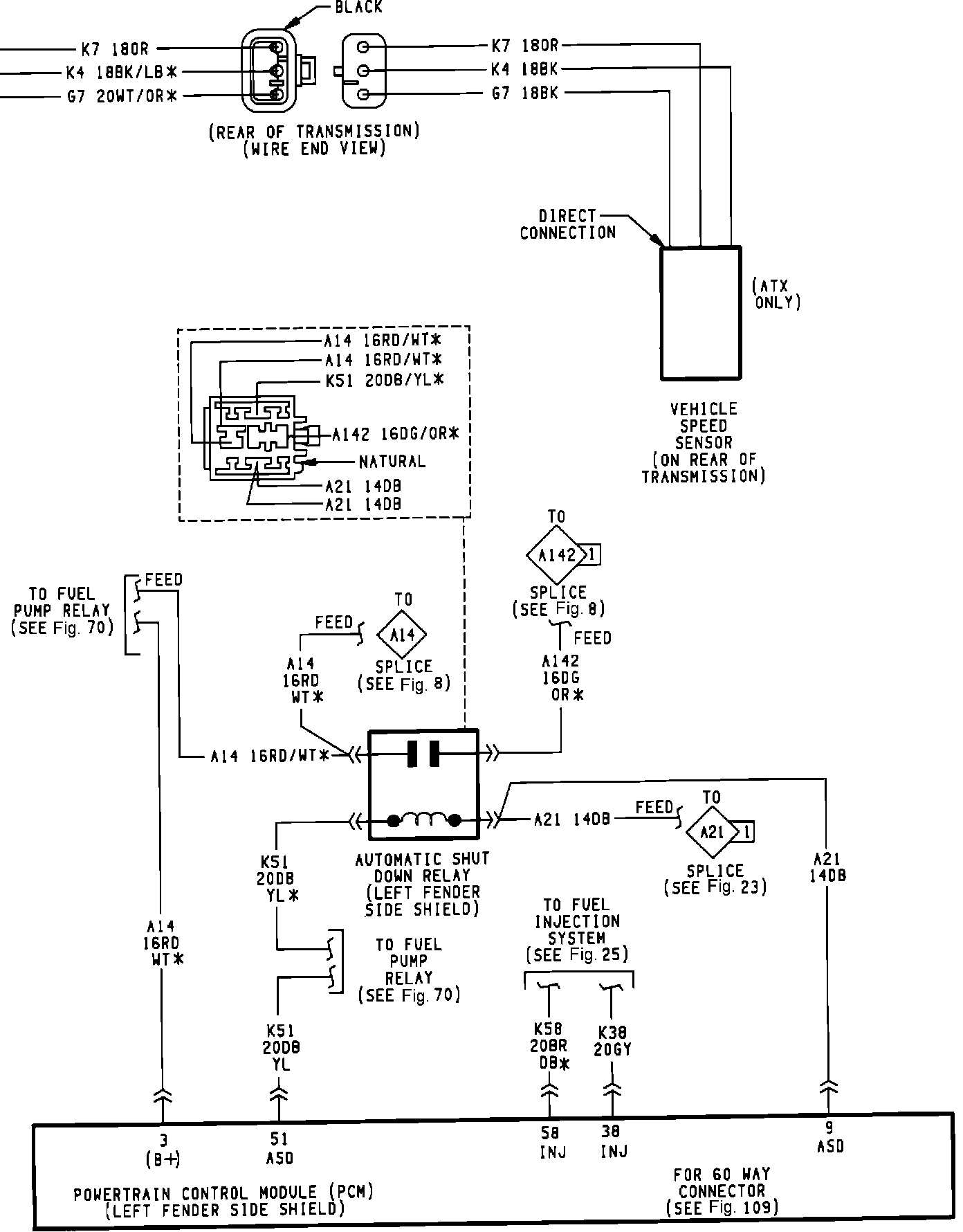

Fuel Injection And Ignition System Wiring Diagram (Part 6 Of 9):



Fuel Injection System:
