Test 44A Washer Pump System Testing
Test 44A Washer Pump System Testing

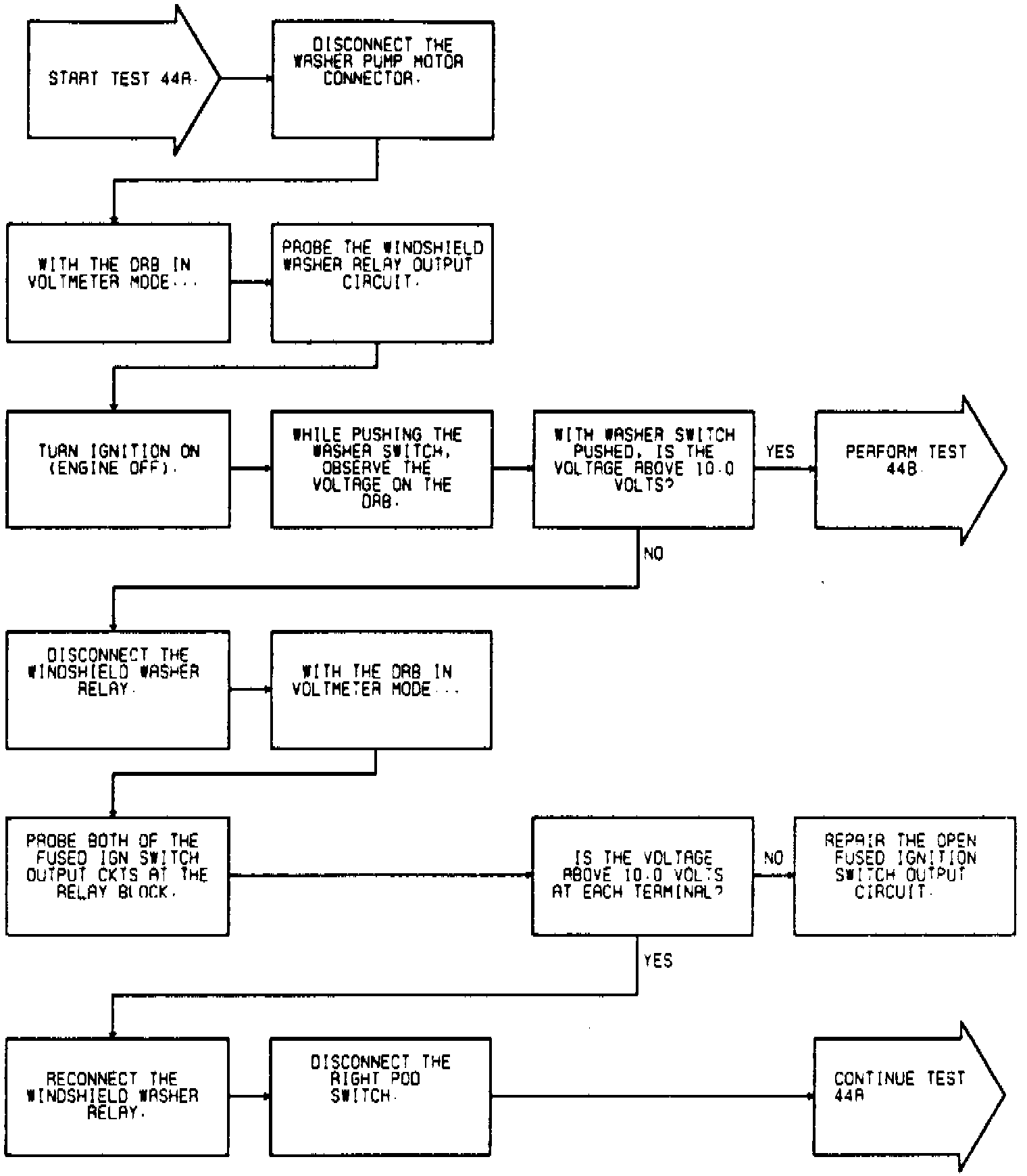

Fig.48 Test 44A: Washer Pump System Testing Part 1 of 2:
