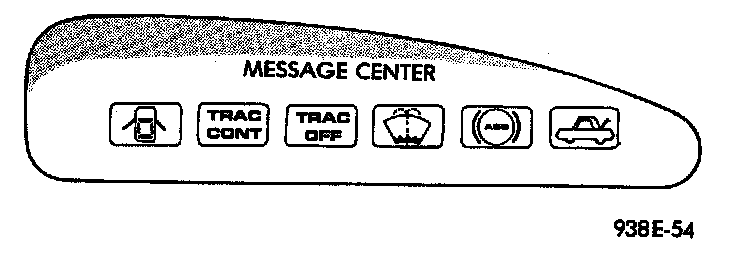

Instrument Panel Message Center Removal

1. Open front door and remove left end cover.






2. Remove headlamp switch bezel and center upper outlet bezel.

3. Remove wood grain trim bezel in center of instrument panel and move bezel out of the way.

4. Remove cluster bezel screws.

5. Pull cluster bezel straight rearward to disengage bezel attaching clips.

6. Disconnect wire connector from message center. The Message Center lamps may be service at this time.

7. For installation, reverse above procedures.
