Home >> Chrysler >> 1995 >> Cirrus V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 14

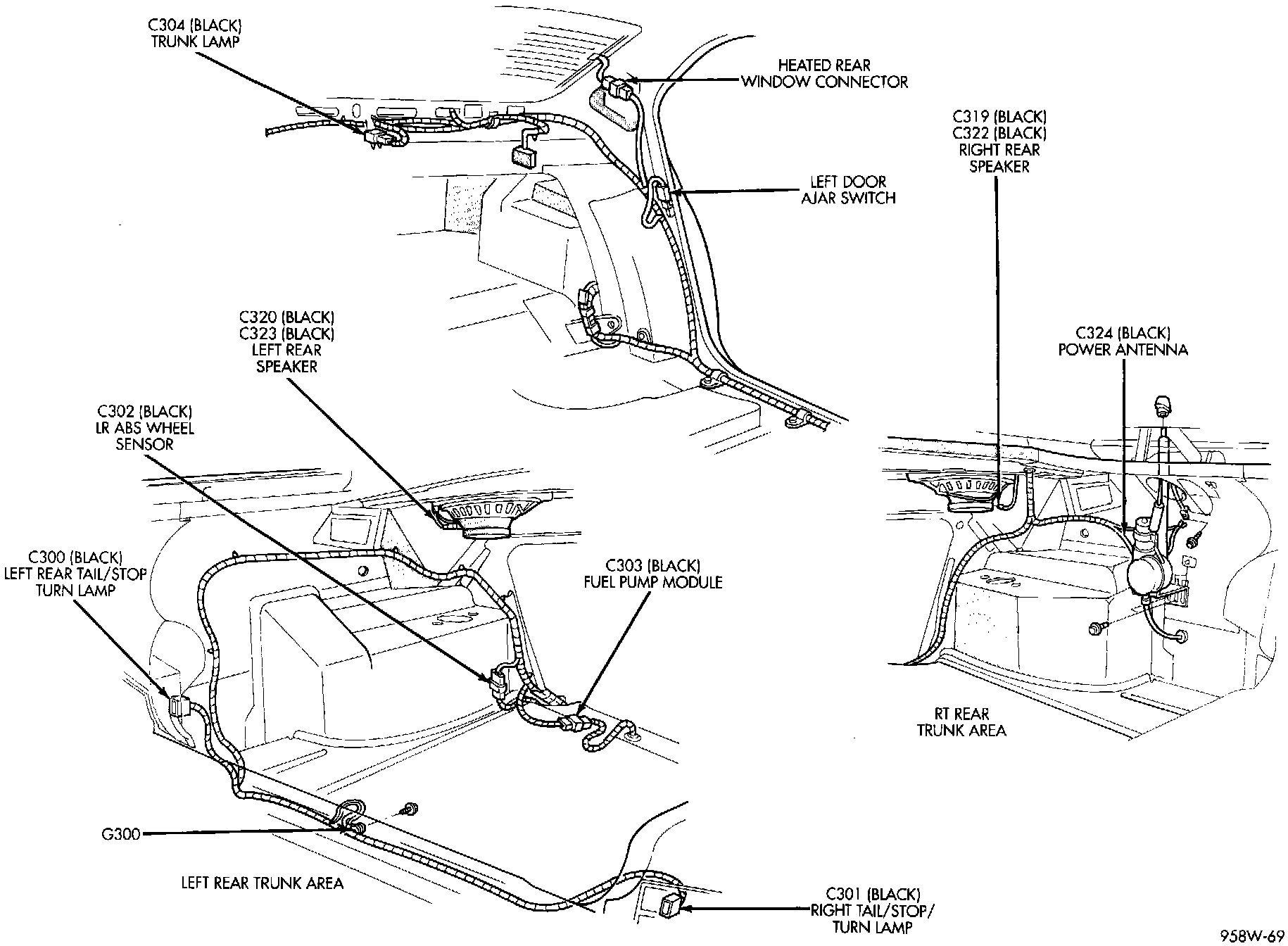

Figure 14

Body Connections (Part 3 Of 3):
