System Diagram

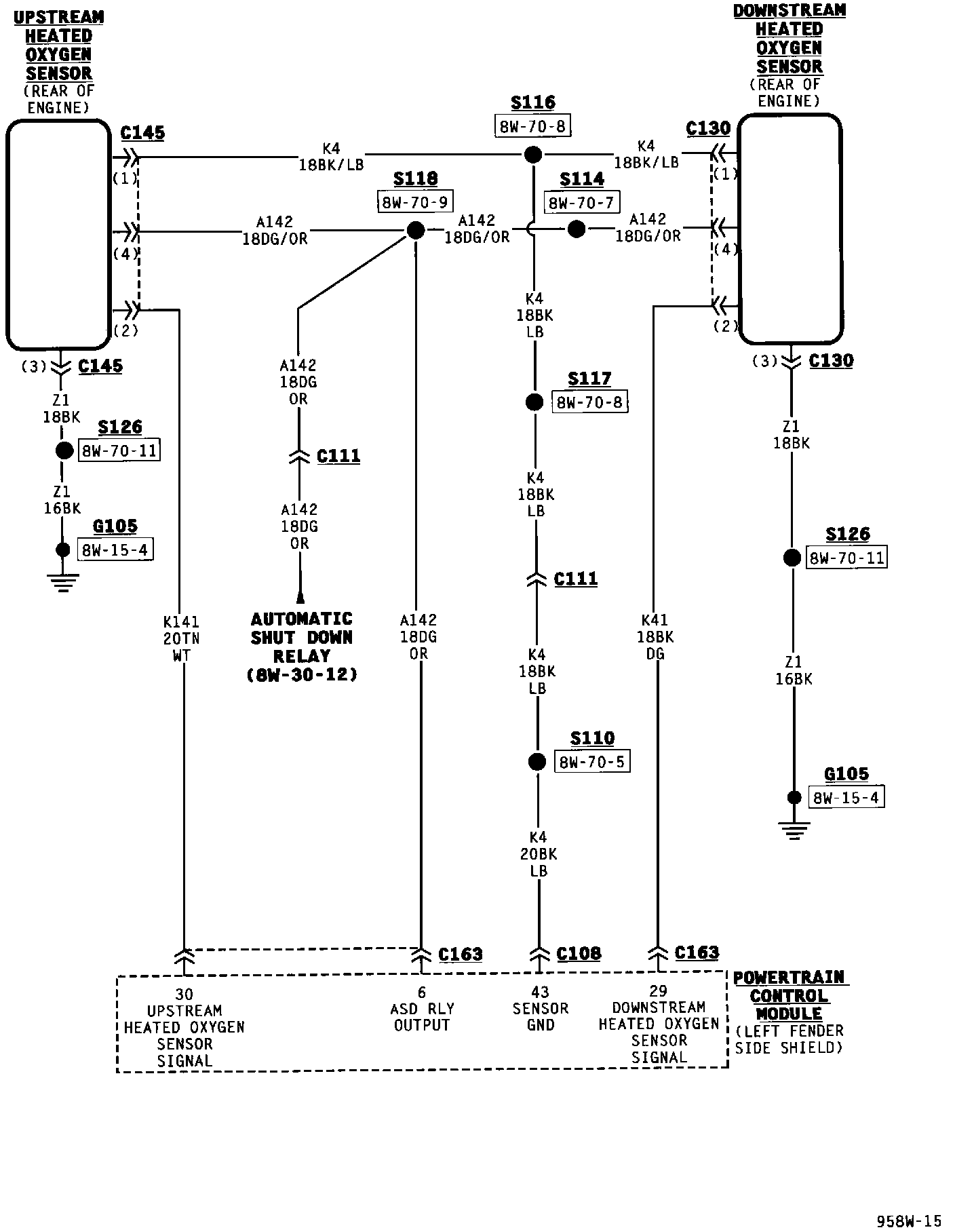

Fuel Ignition System:

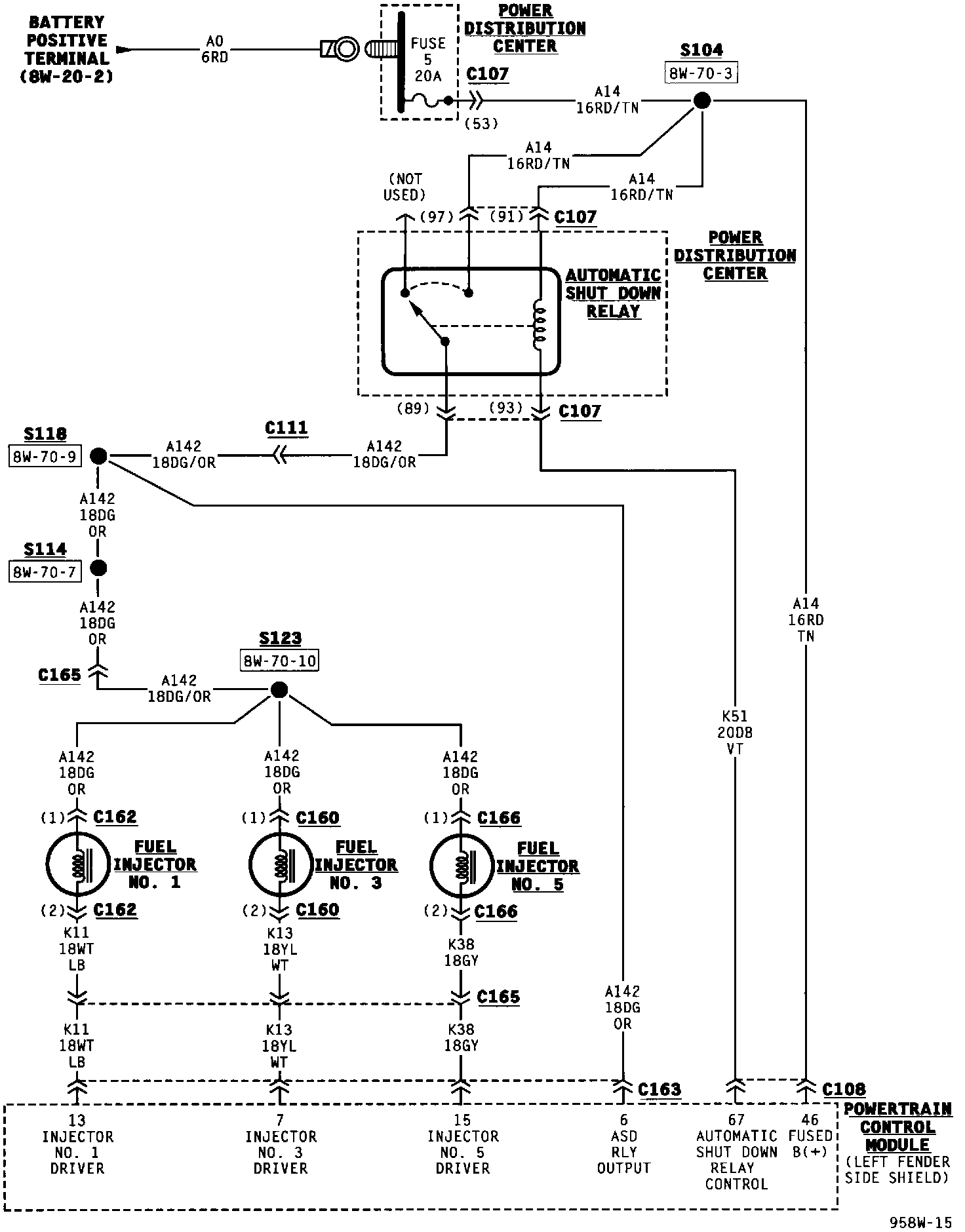

Fuel Ignition System:

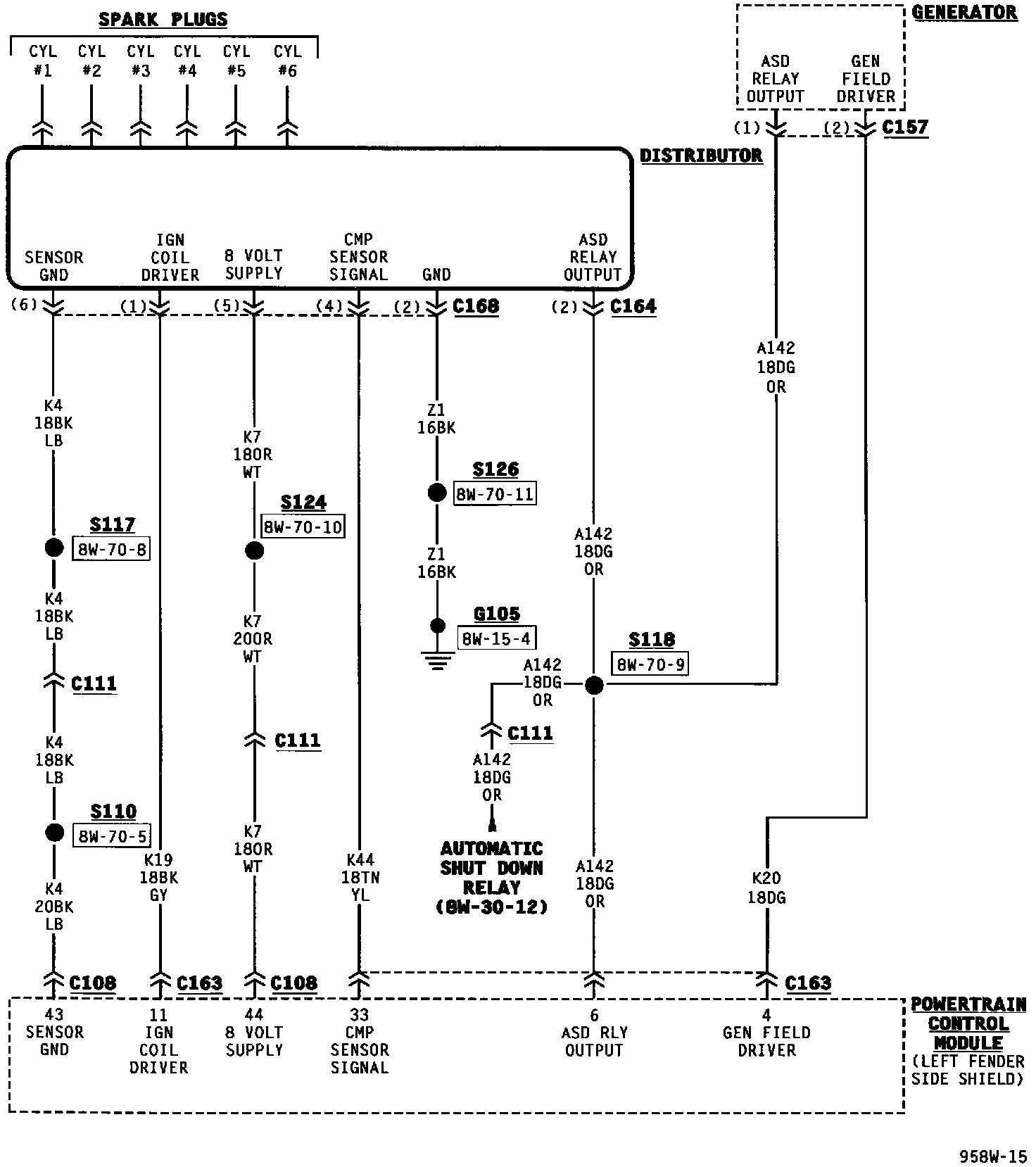

Fuel Ignition System:

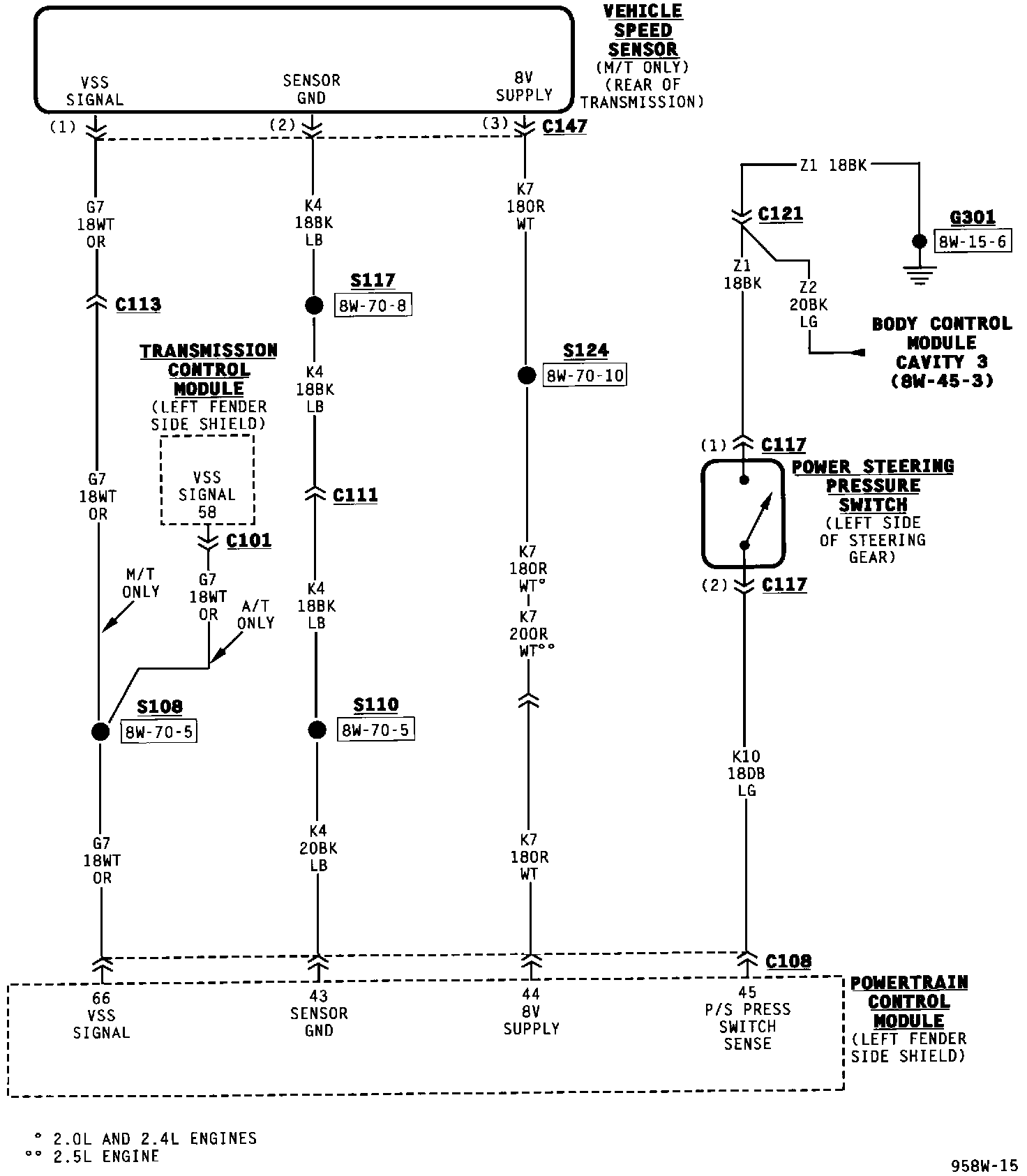

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

Fuel Ignition System:

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
