Rear Lighting

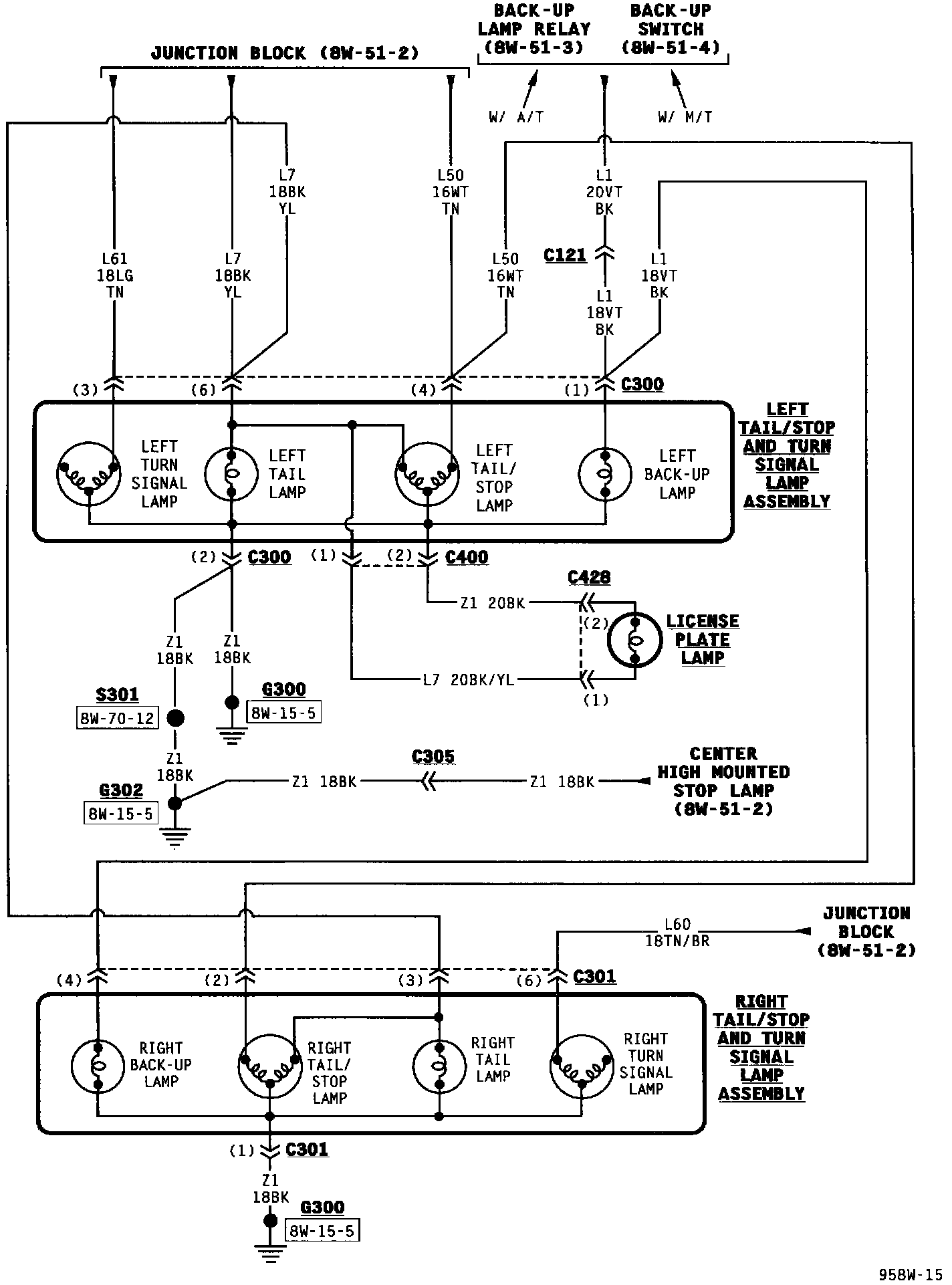

Rear Lighting:

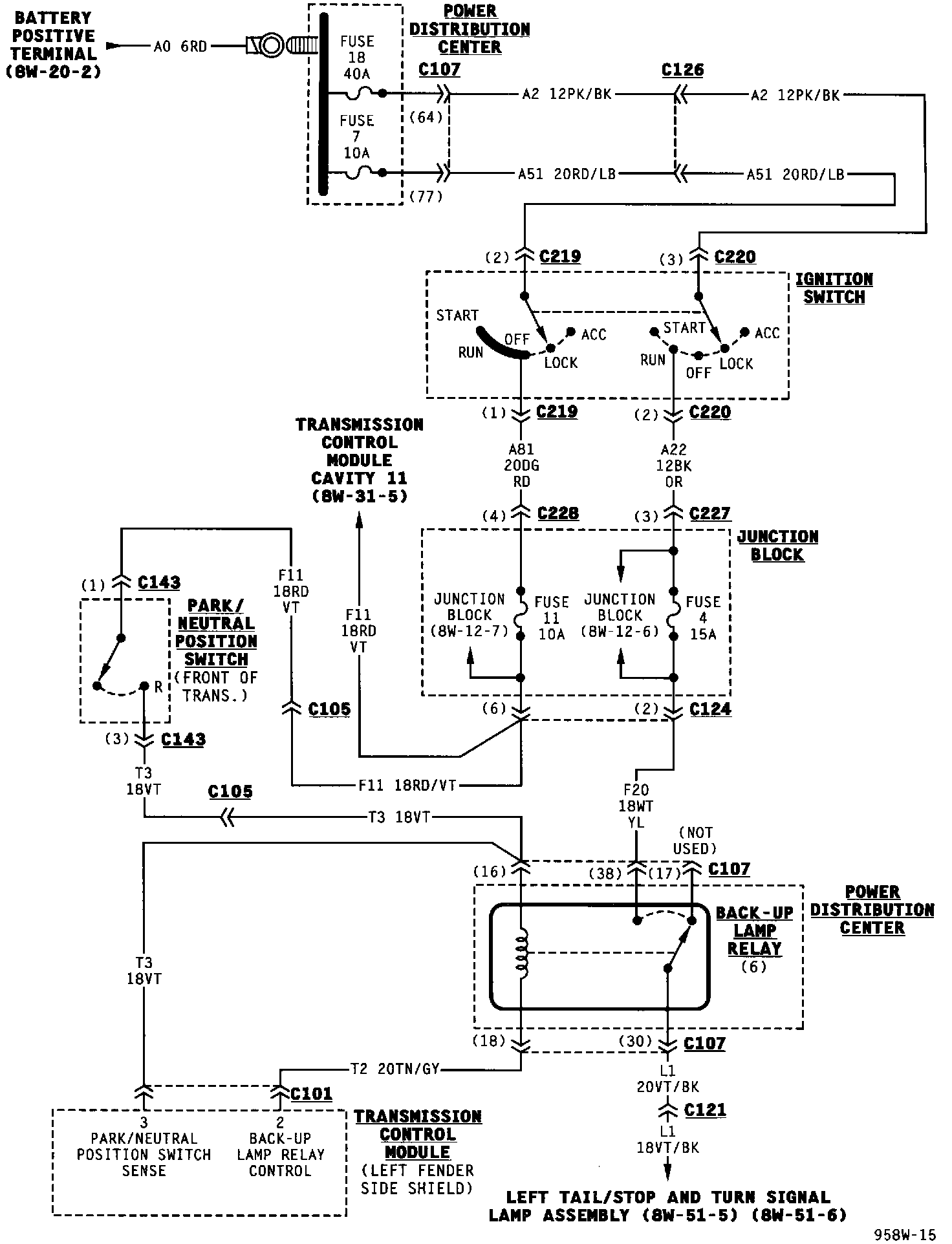

Rear Lighting - Automatic Transmission:

Rear Lighting - Manual Transmission:

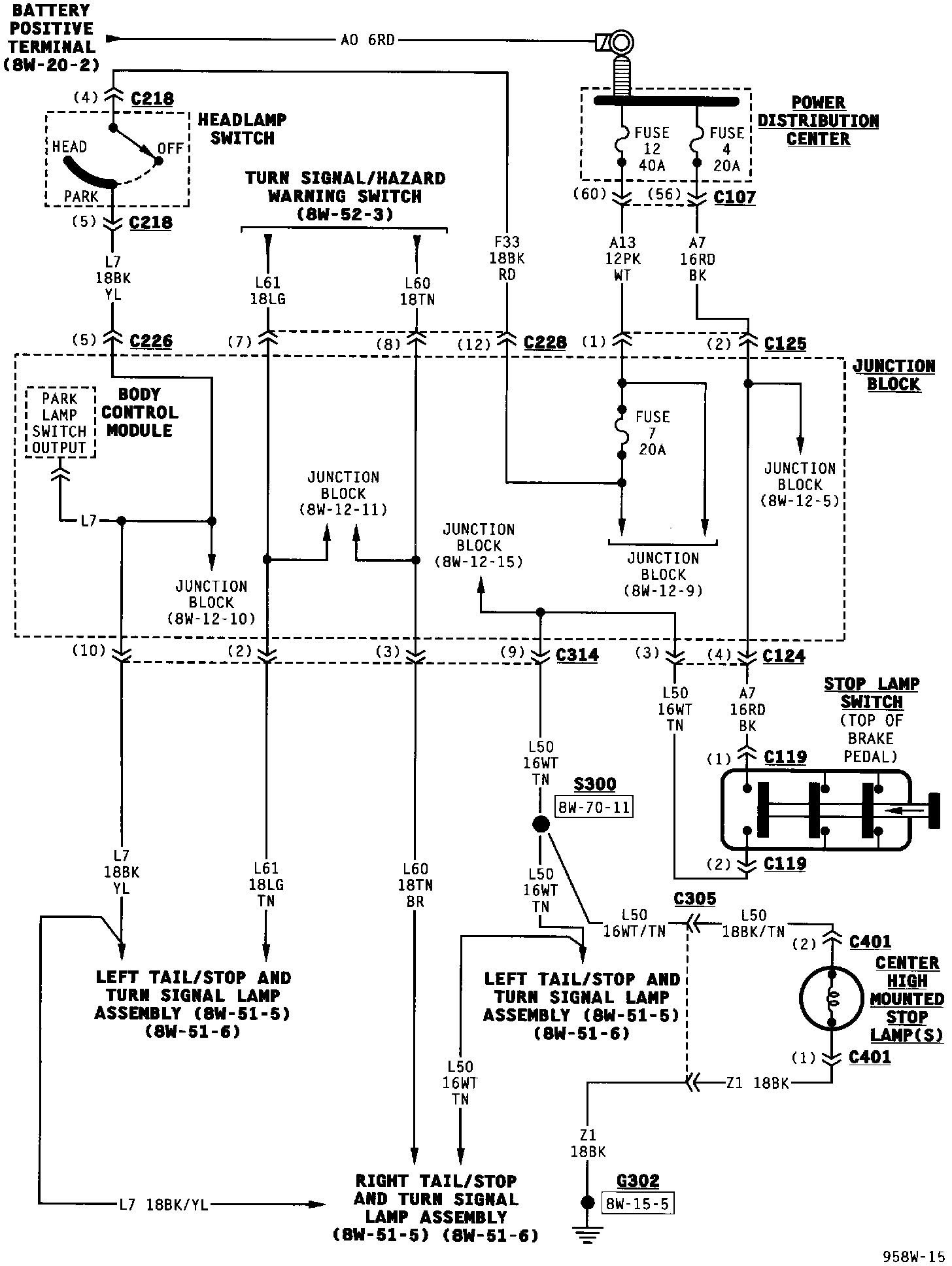

Rear Lighting Dodge:

Rear Lighting Dodge Chrysler:

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
