Engine Control Module

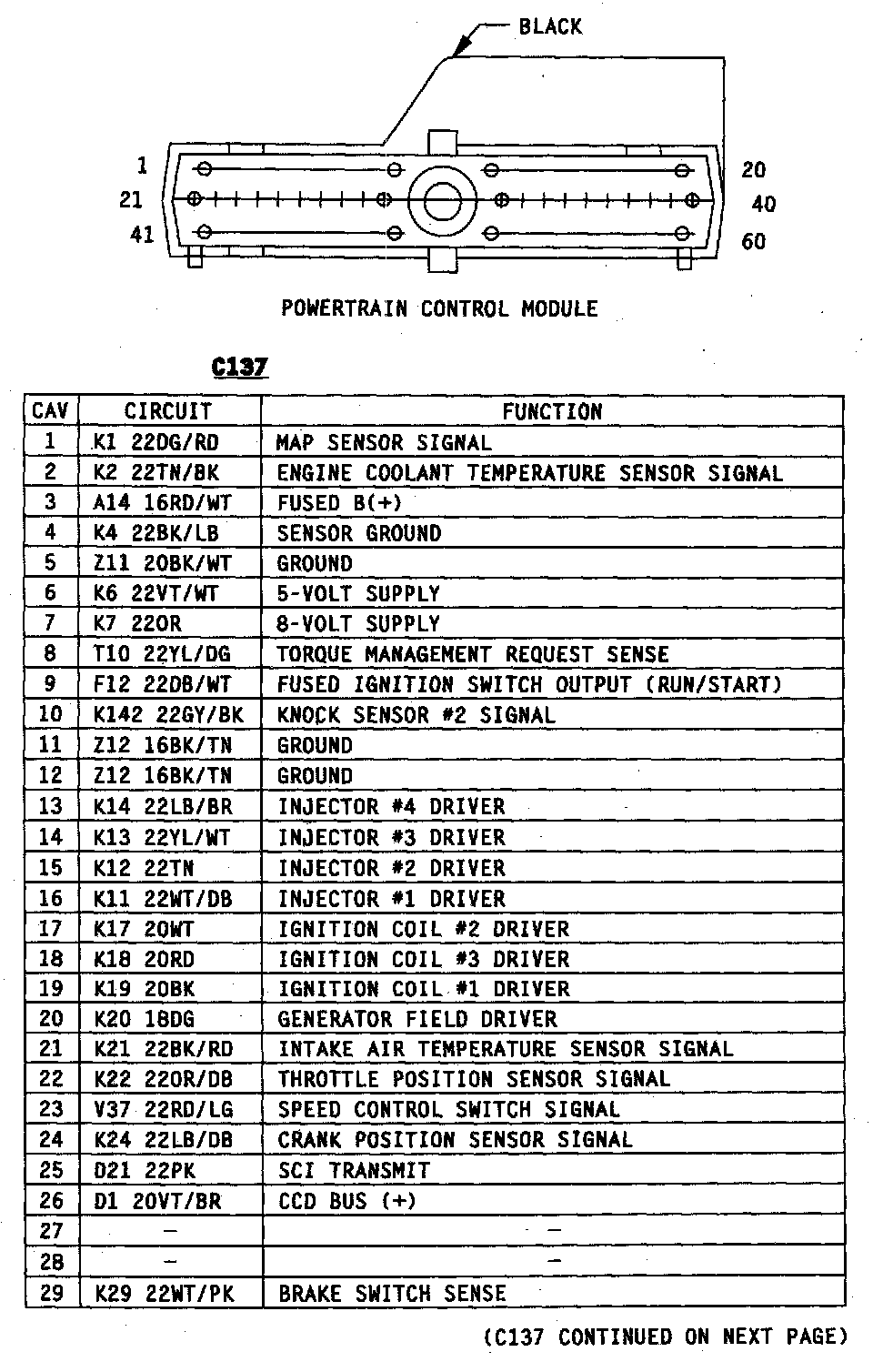

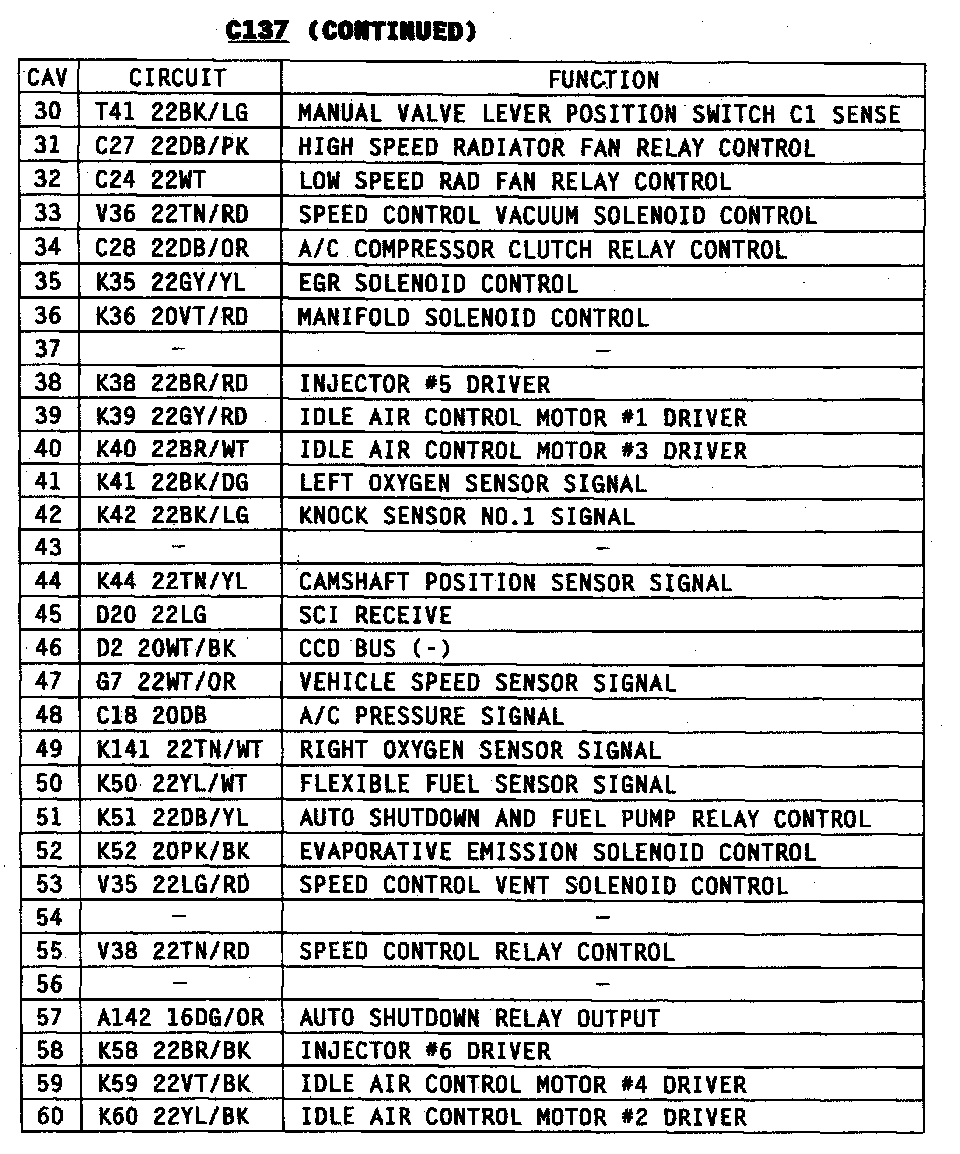

PCM Location And Pin Identification:



PCM Location and Pin Identification:



Part 1 Of 1:



Part 1 Of 1:
