Wiring Diagrams

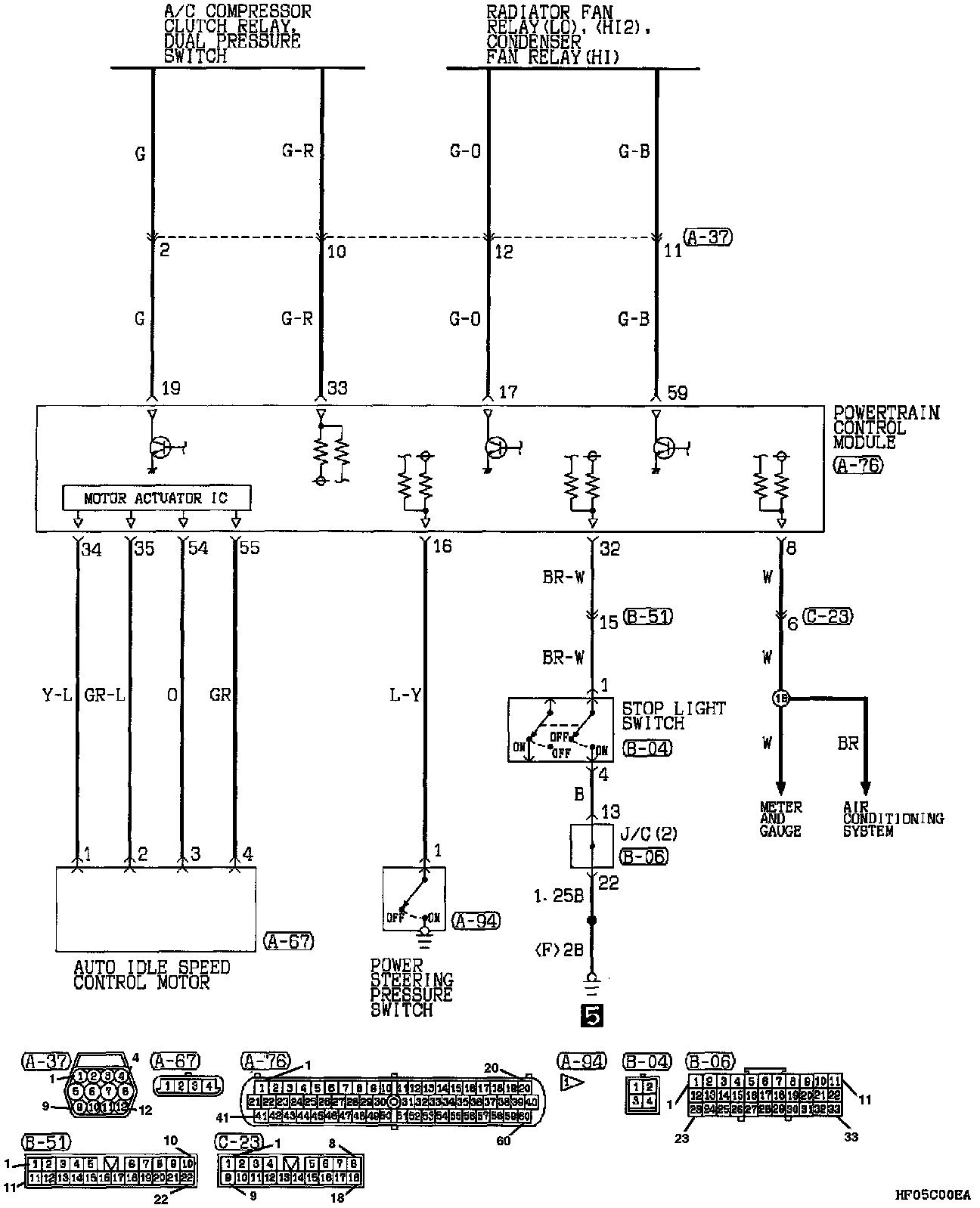

MFI Diagrams (Part 1 Of 10):

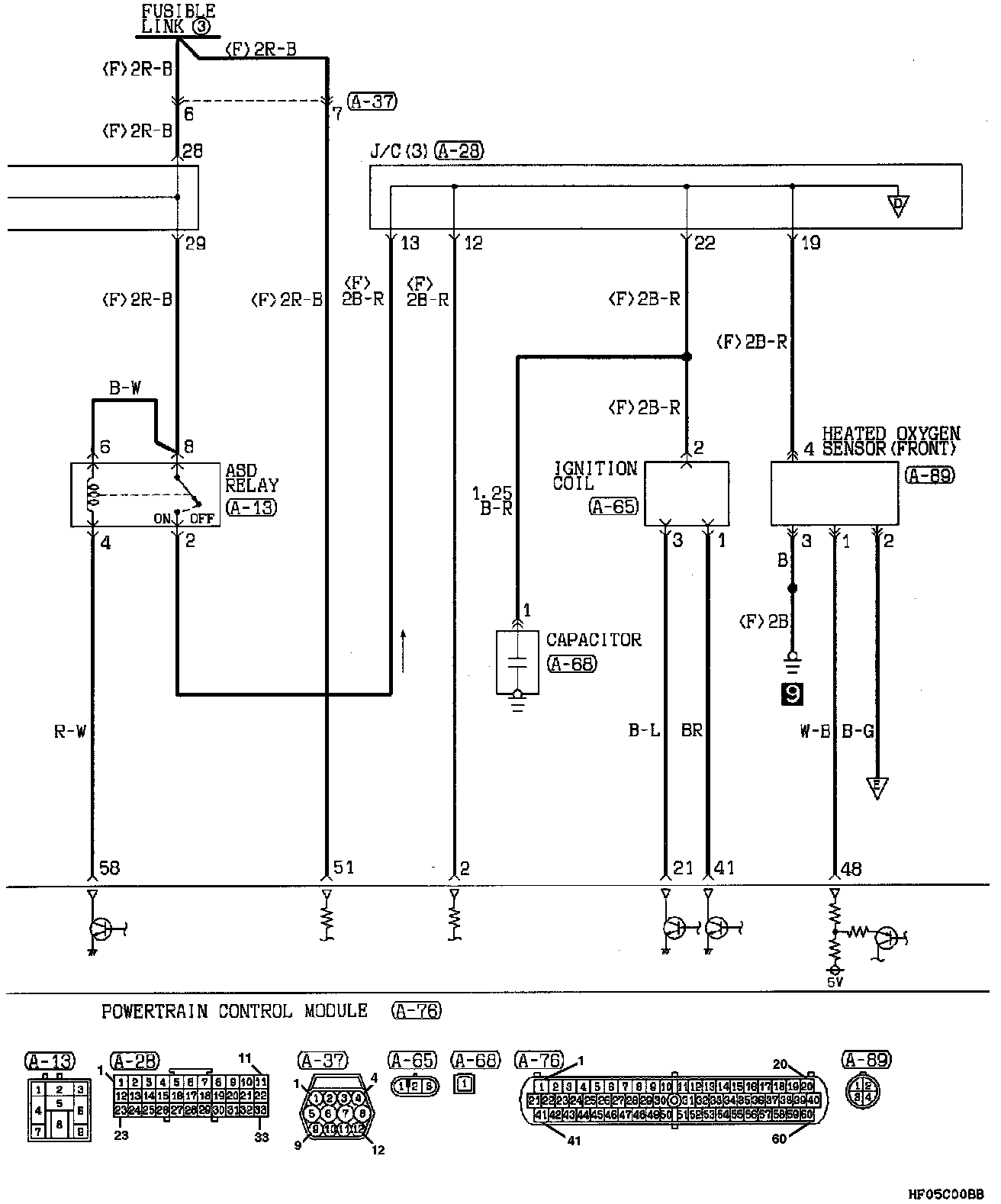

MFI Diagrams (Part 2 Of 10):

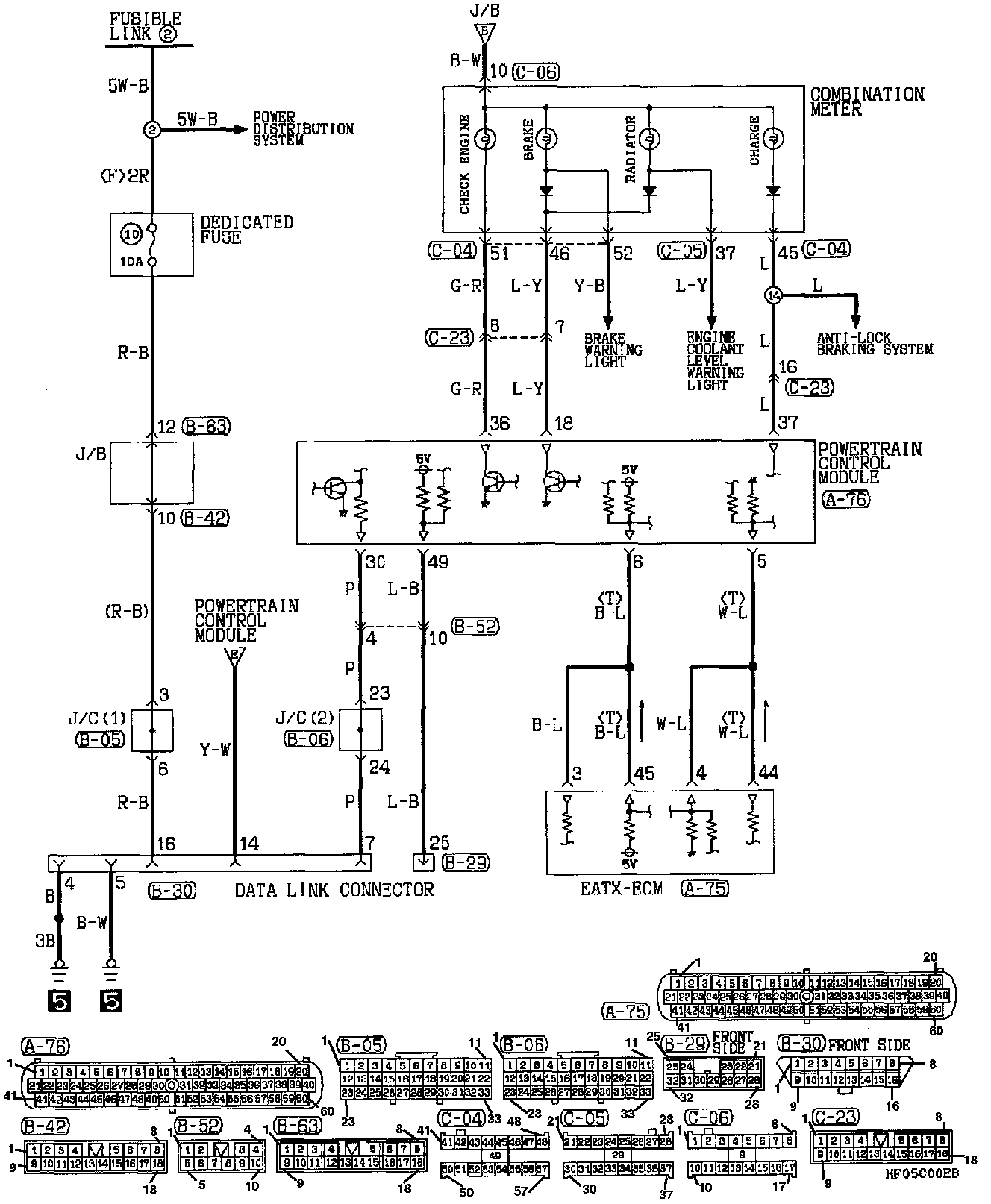

MFI Diagrams (Part 3 Of 10):

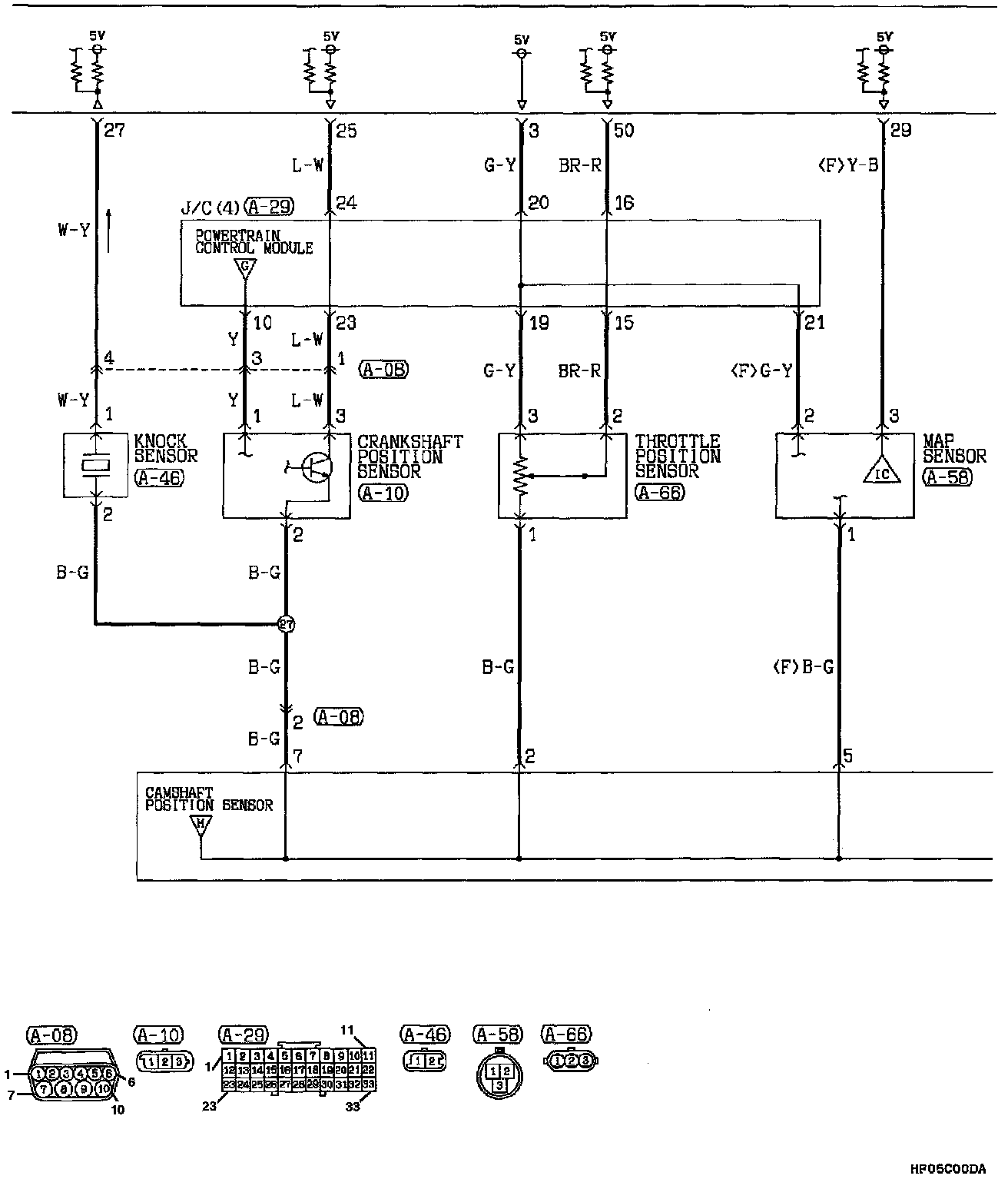

MFI Diagrams (Part 4 Of 10):

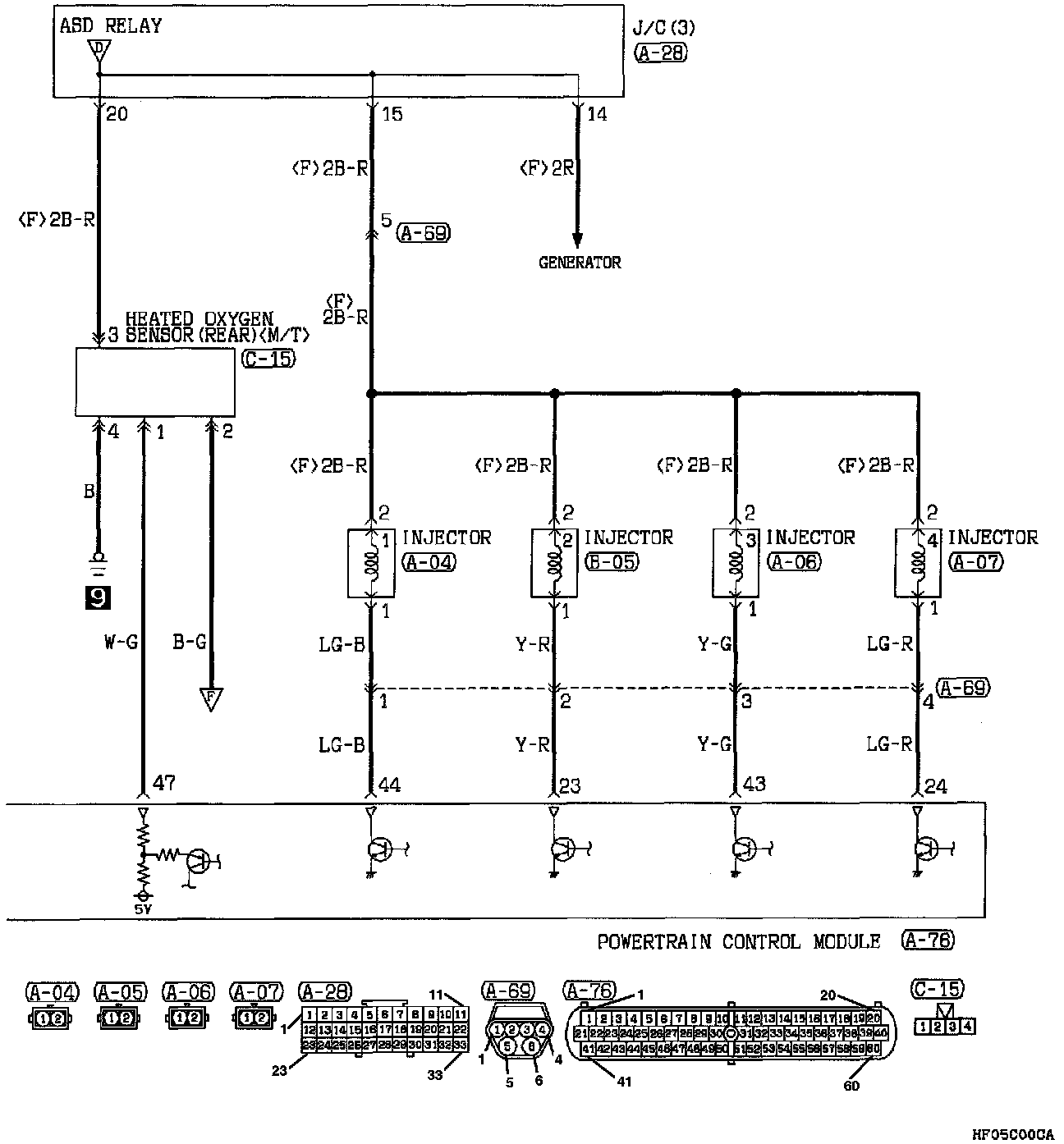

MFI Diagrams (Part 5 Of 10):

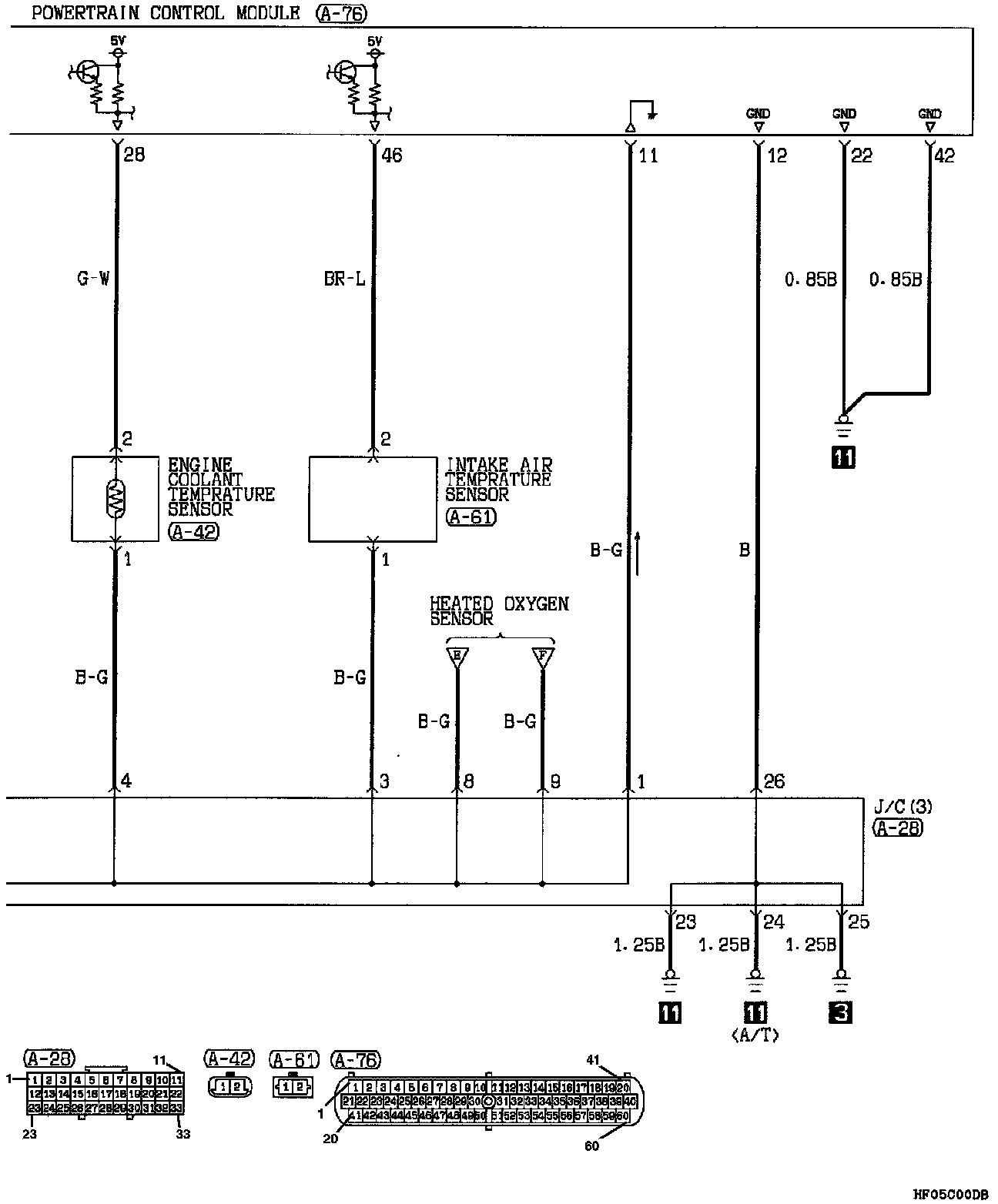

MFI Diagrams (Part 6 Of 10):

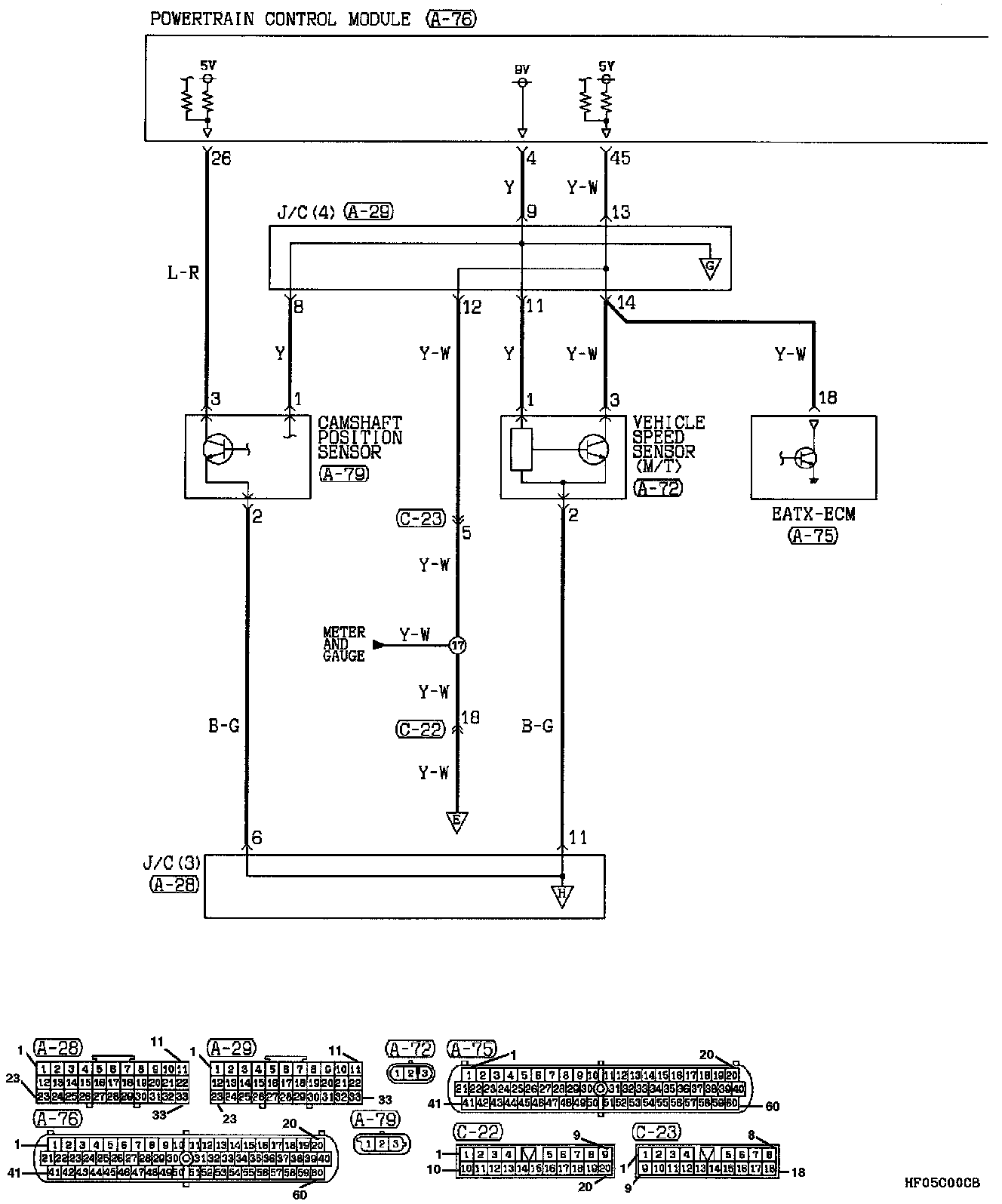

MFI Diagrams (Part 7 Of 10):

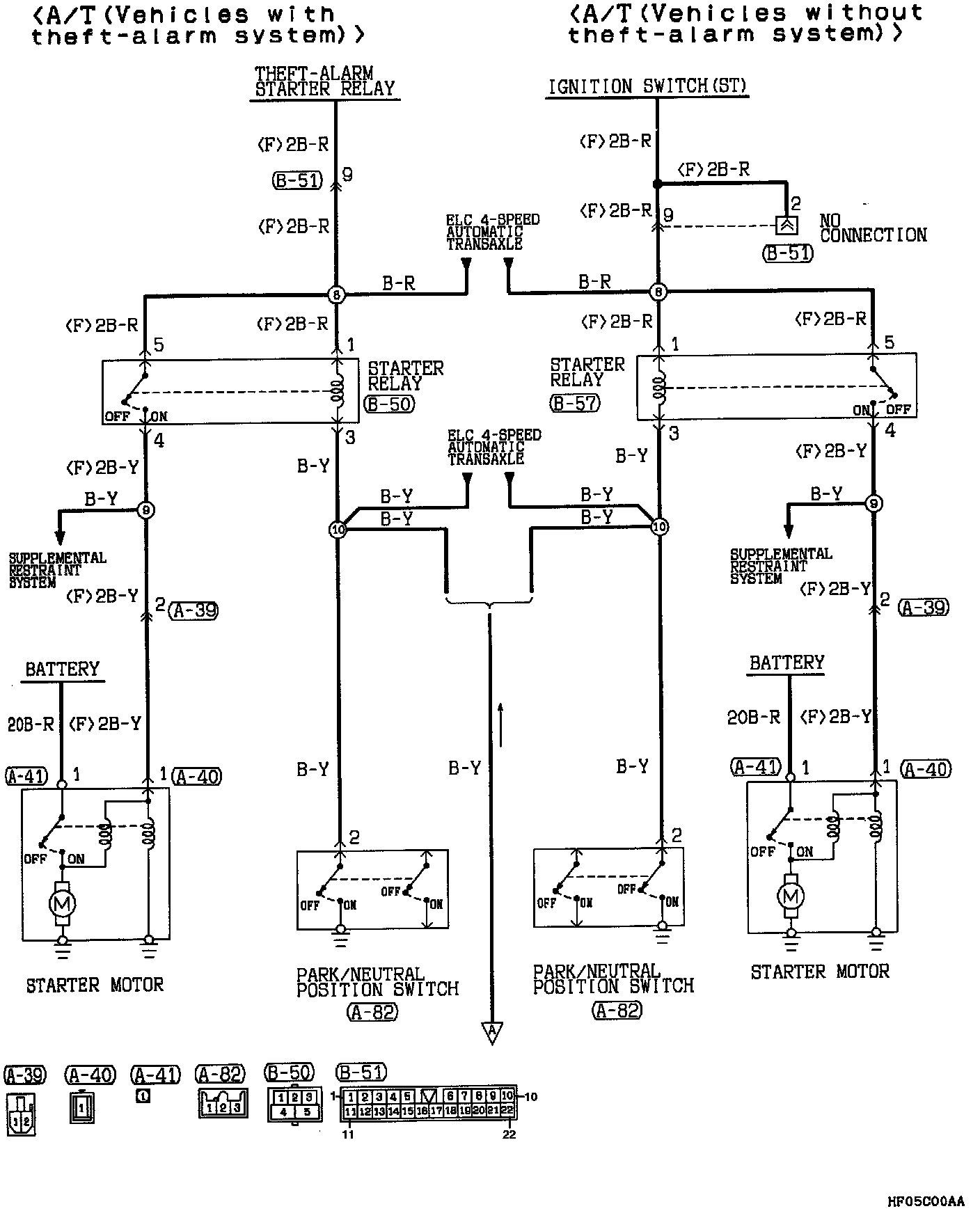

MFI Diagrams (Part 8 Of 10):

MFI Diagrams (Part 9 Of 10):

MFI Diagrams (Part 10 Of 10):
