Electrical Diagrams

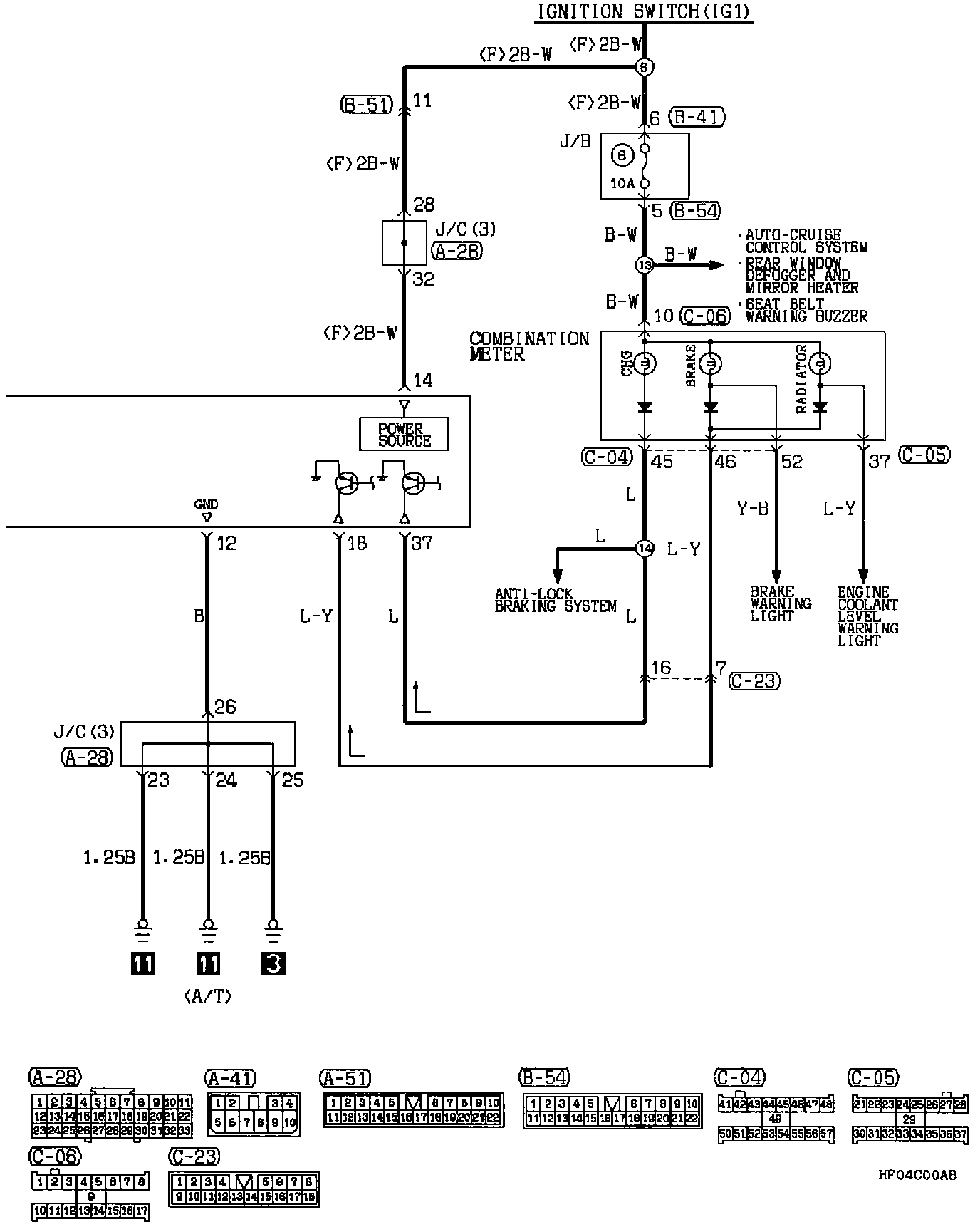

Troubleshooting Circuit Diagrams (Part 1 Of 2):



Troubleshooting Circuit Diagrams (Part 2 Of 2):
