Home >> Chrysler >> 1995 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Connectors >> Vehicle Connector Locations >> C Connectors - Instrument Panel And Floor Console Harness

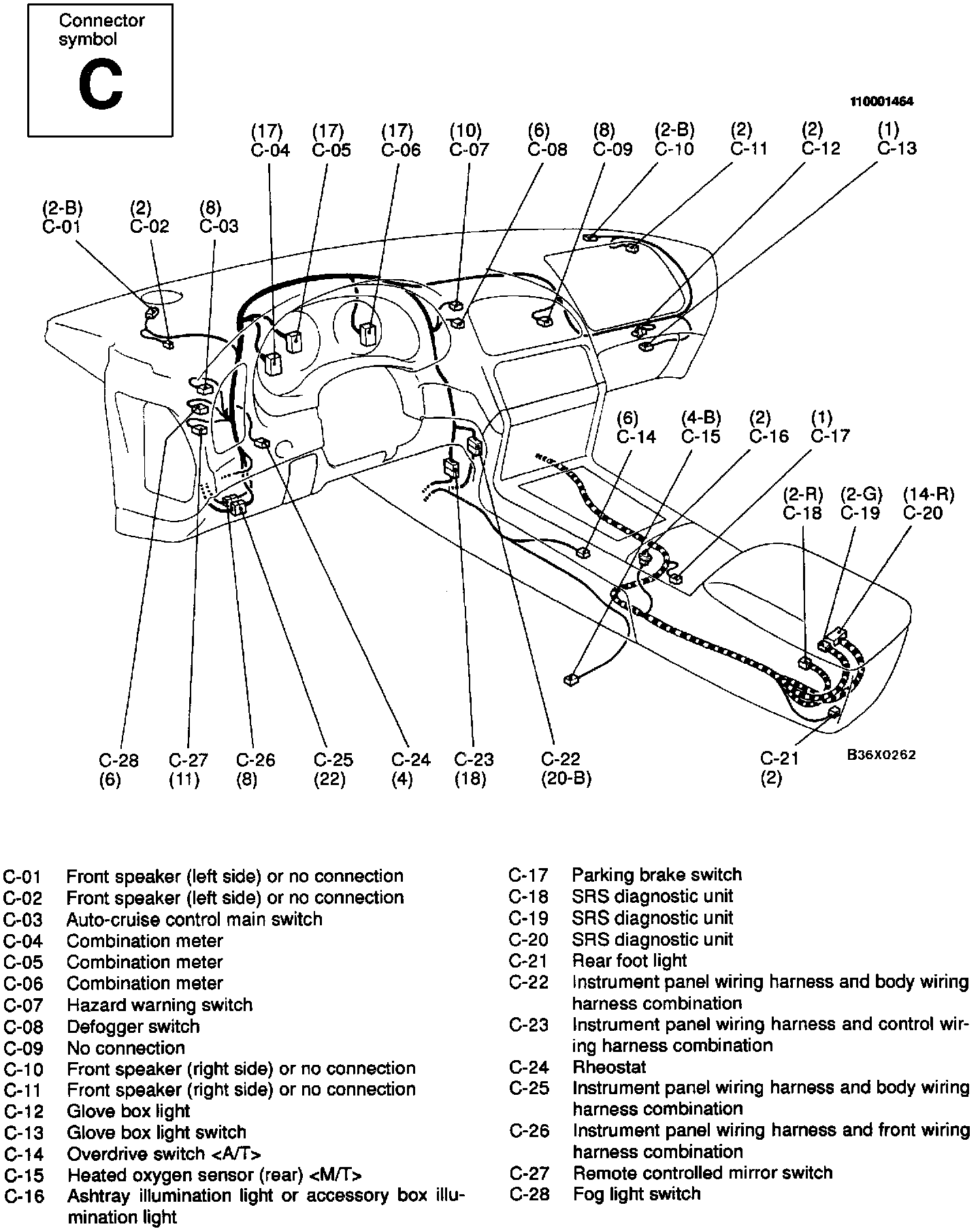

C Connectors - Instrument Panel And Floor Console Harness

C Connectors - Instrumental Panel And Floor Console:
