Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Vehicle Connector Locations
>>

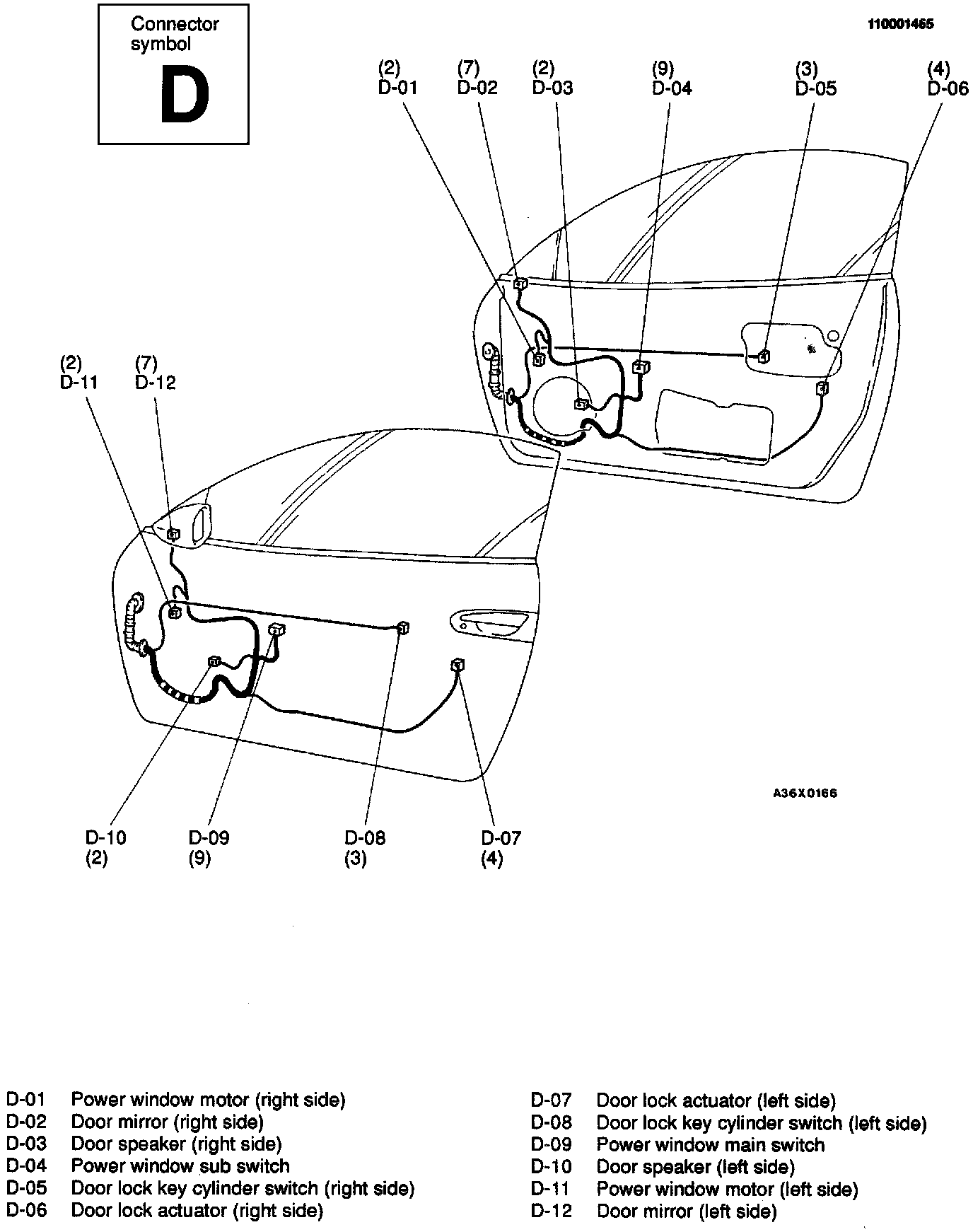

D Connectors - Door Harness
D Connectors - Door Harness
D Connectors - Door:
