Overall Configuration Harness Diagram
Overall Configuration Harness Diagram

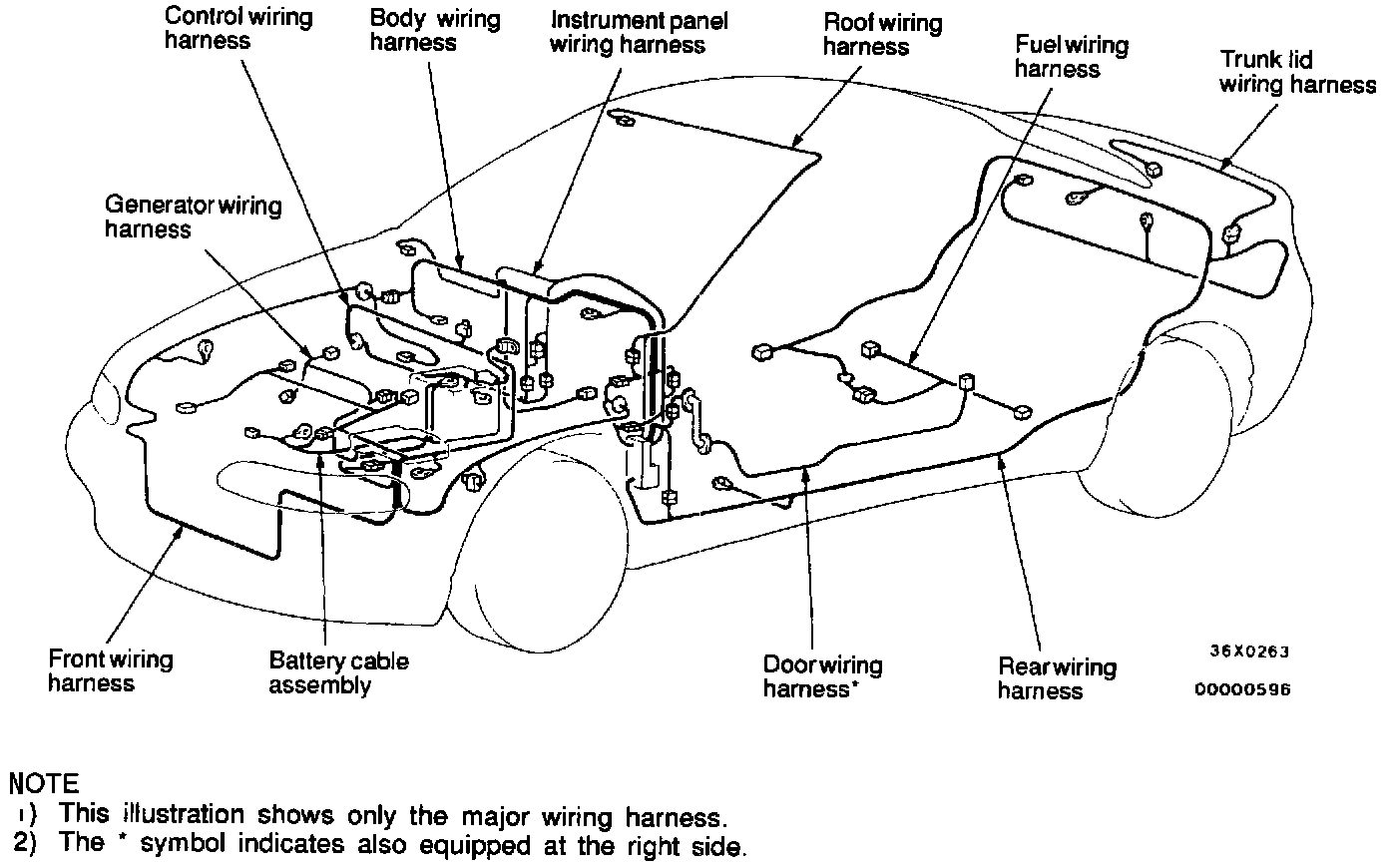

Overall Configuration Diagram:
