Antilock Brakes / Traction Control Systems

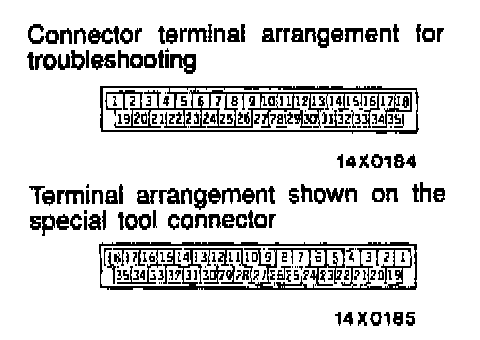

ANTI-LOCK BRAKE SYSTEMS - ELECTRONIC CONTROL UNIT (ABS-ECU) CONNECTOR TERMINAL ARRANGEMENT

CAUTION:
1. Use the special tool (MB991 356) to check the ABS-ECU terminal voltage and resistance.
2. The ABS-ECU connector terminal arrangement for troubleshooting is different from that on the special tool connector. So take the readings from the terminal numbers of the special tool when checking.

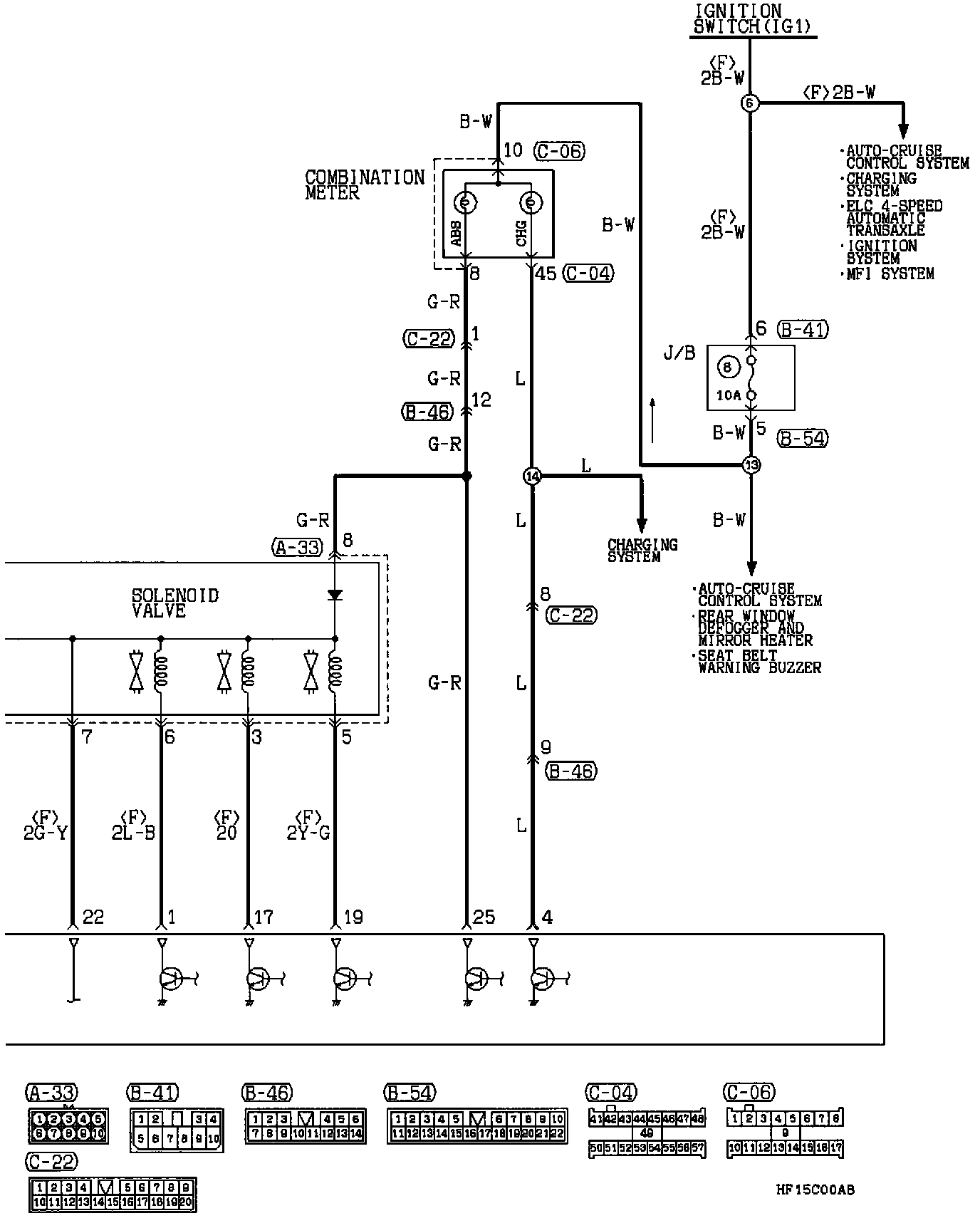

Anti Lock Braking System (ABS) (Part 1 Of 5):

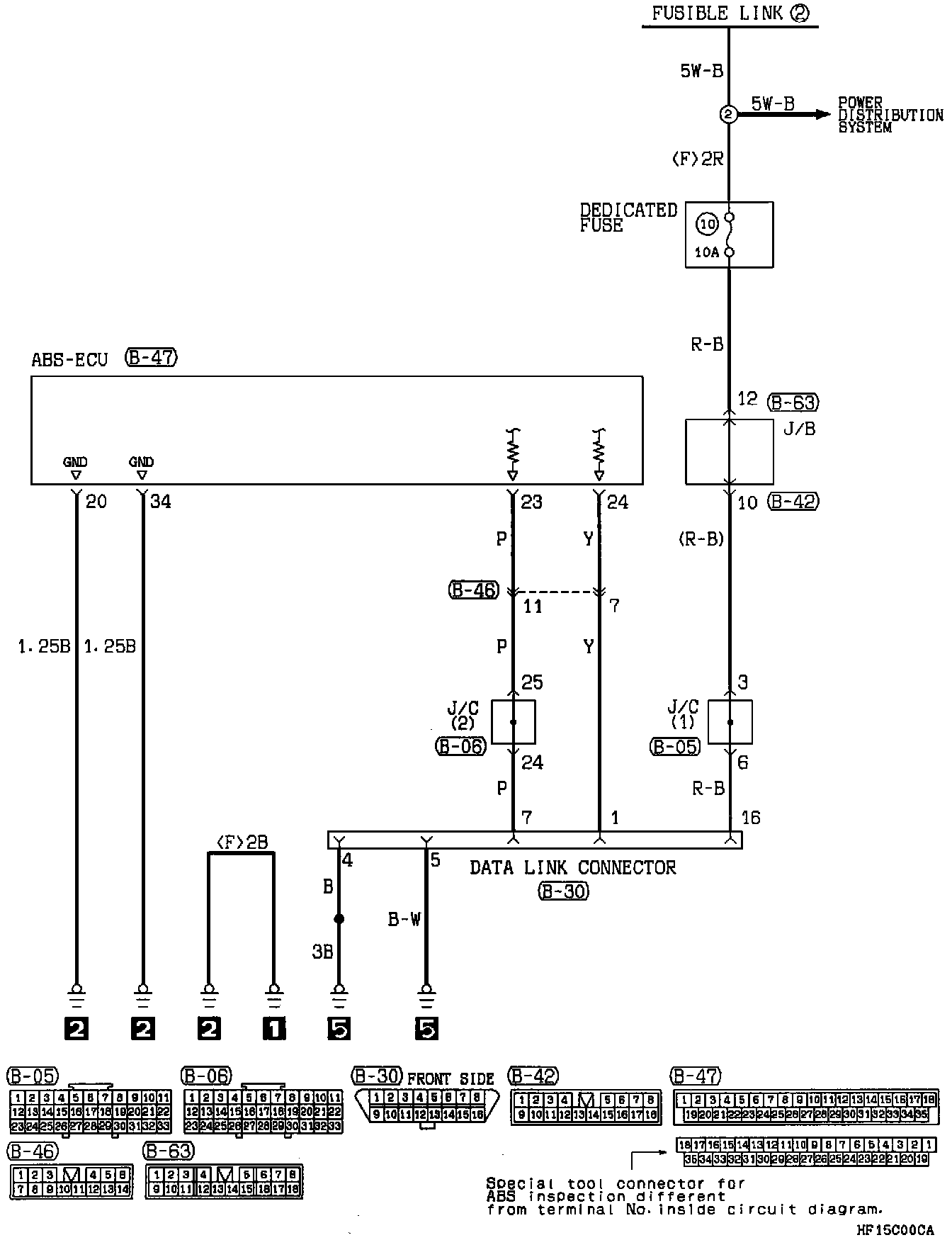

Anti Lock Braking System (ABS) (Part 2 Of 5):

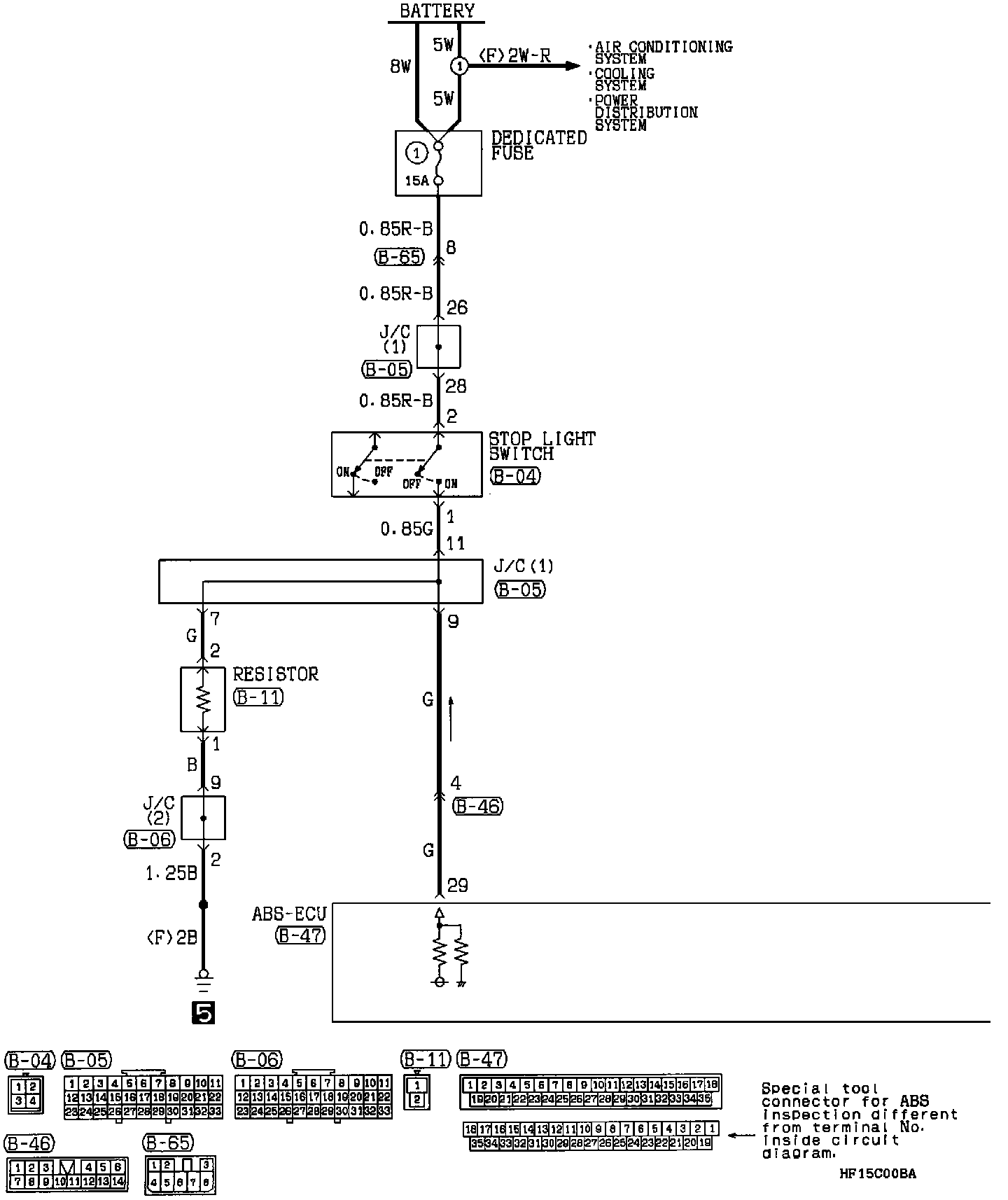

Anti Lock Braking System (ABS) (Part 3 Of 5):

Anti Lock Braking System (ABS) (Part 4 Of 5):

Anti-Lock Braking System (ABS) (Part 5 Of 5):
