Compact Disc Player (CD)

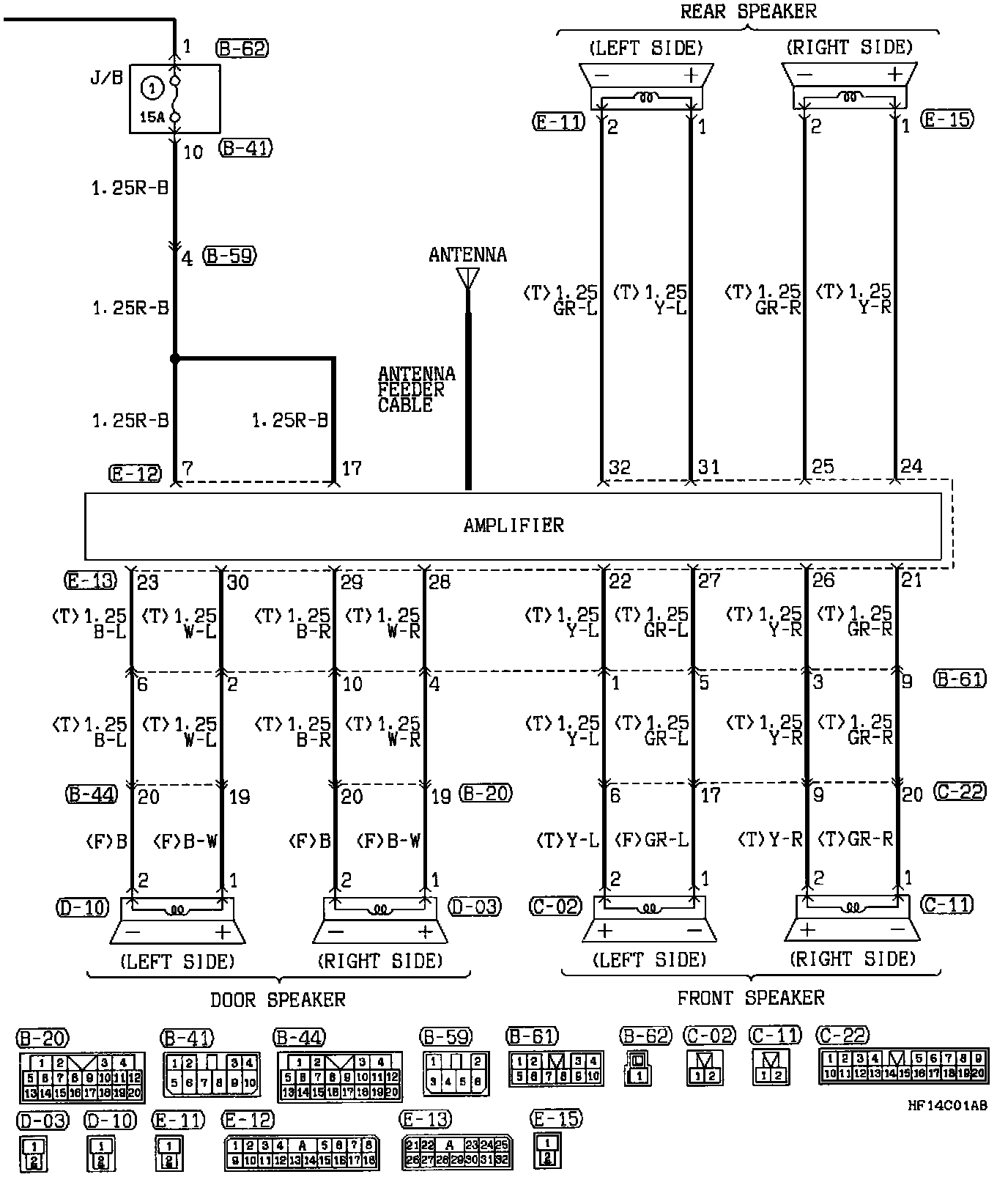

Radio With Tape Player And CD Player Circuit (Part 1 Of 2):



Radio With Tape Player And CD Player Circuit (Part 2 Of 2):
