Coolant Level Indicator Lamp

Brake Warning, Engine Coolant Level Warning, Oil Pressure Warning And Low Fuel Level Warning Light Circuit (Part 1 Of 2):

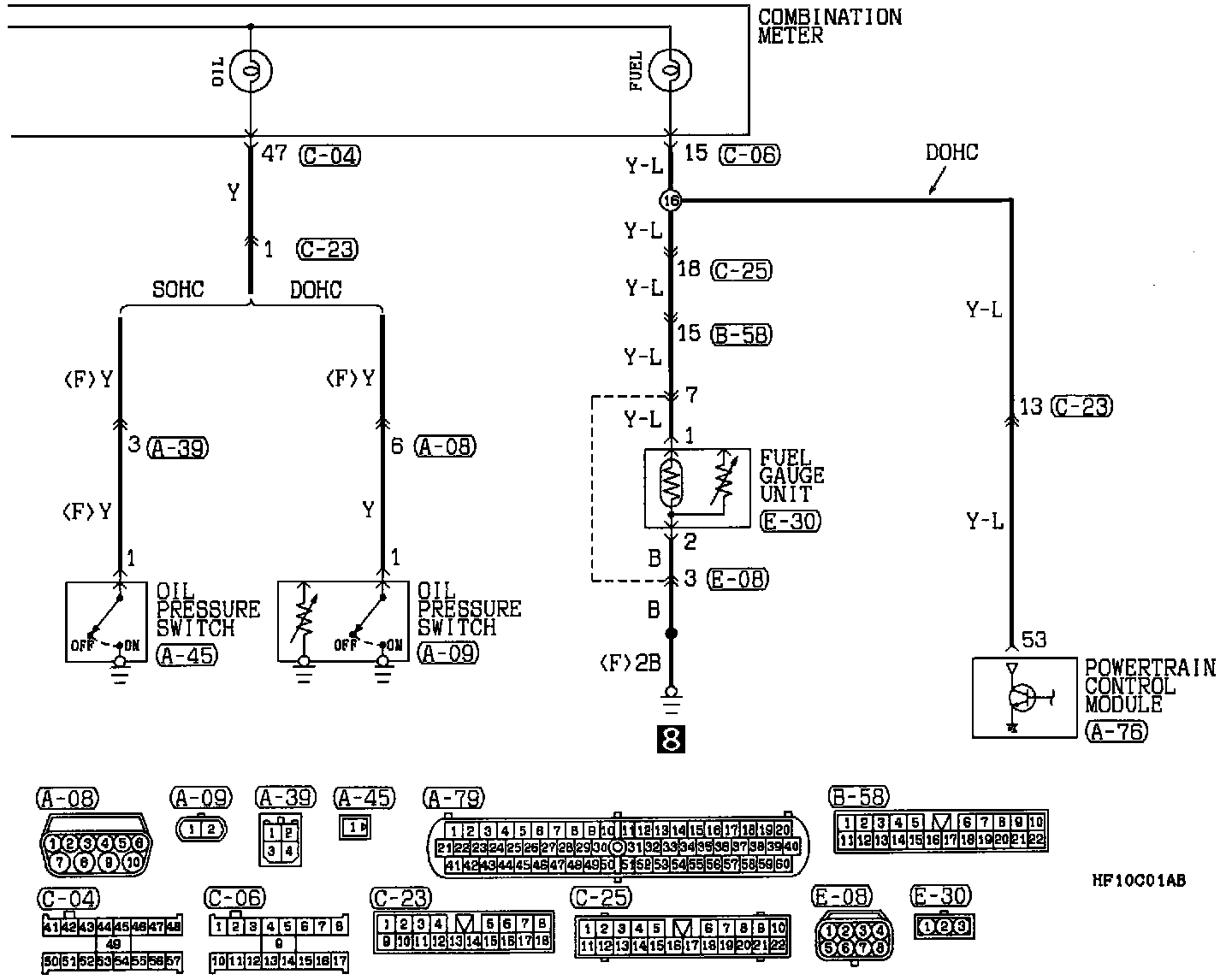

Brake Warning, Engine Coolant Level Warning, Oil Pressure Warning And Low Fuel Level Warning Light Circuit (Part 2 Of 2):
