Tail Lamp

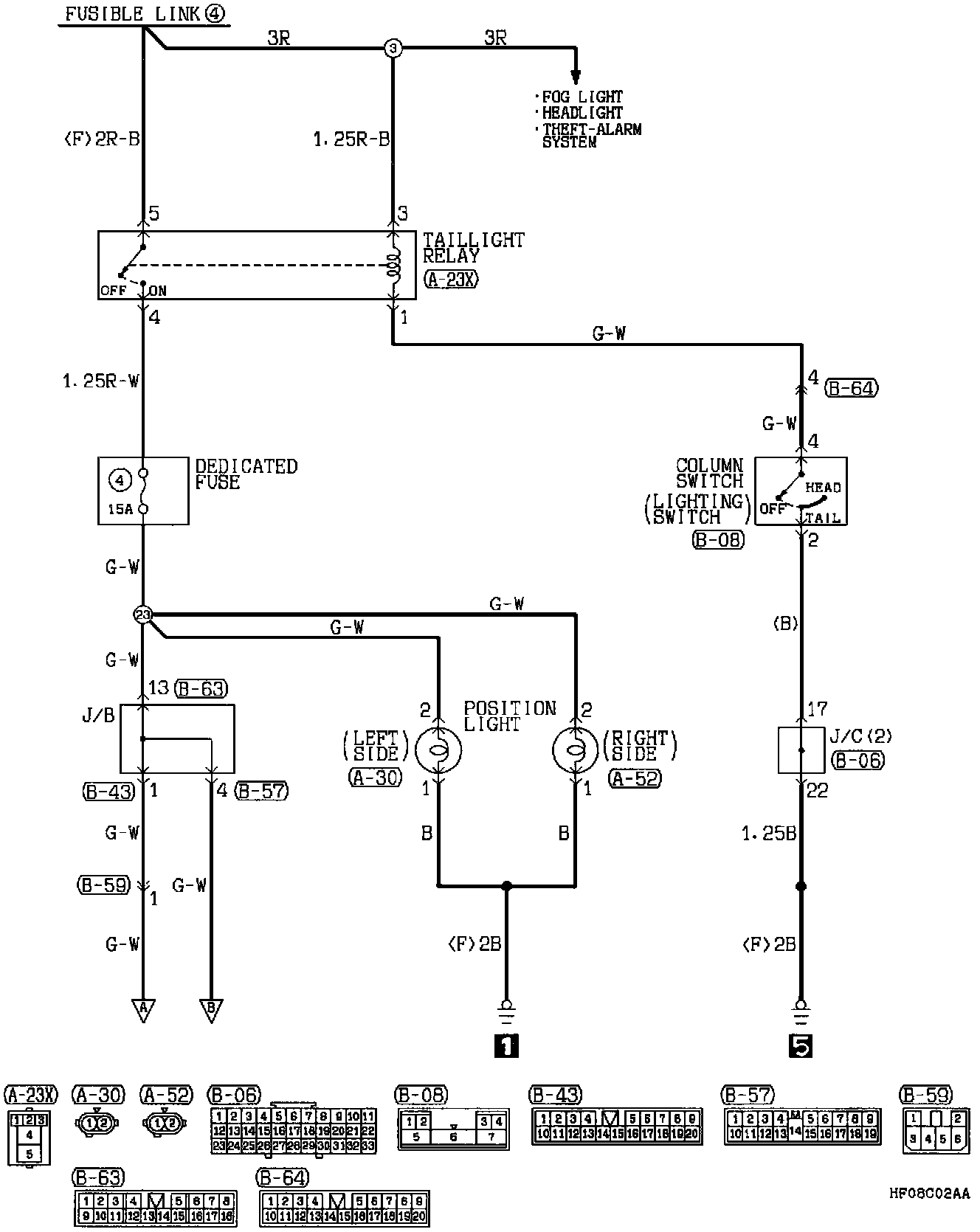

Taillight, Position Light And License Plate Light Circuit (Part 1 Of 2):

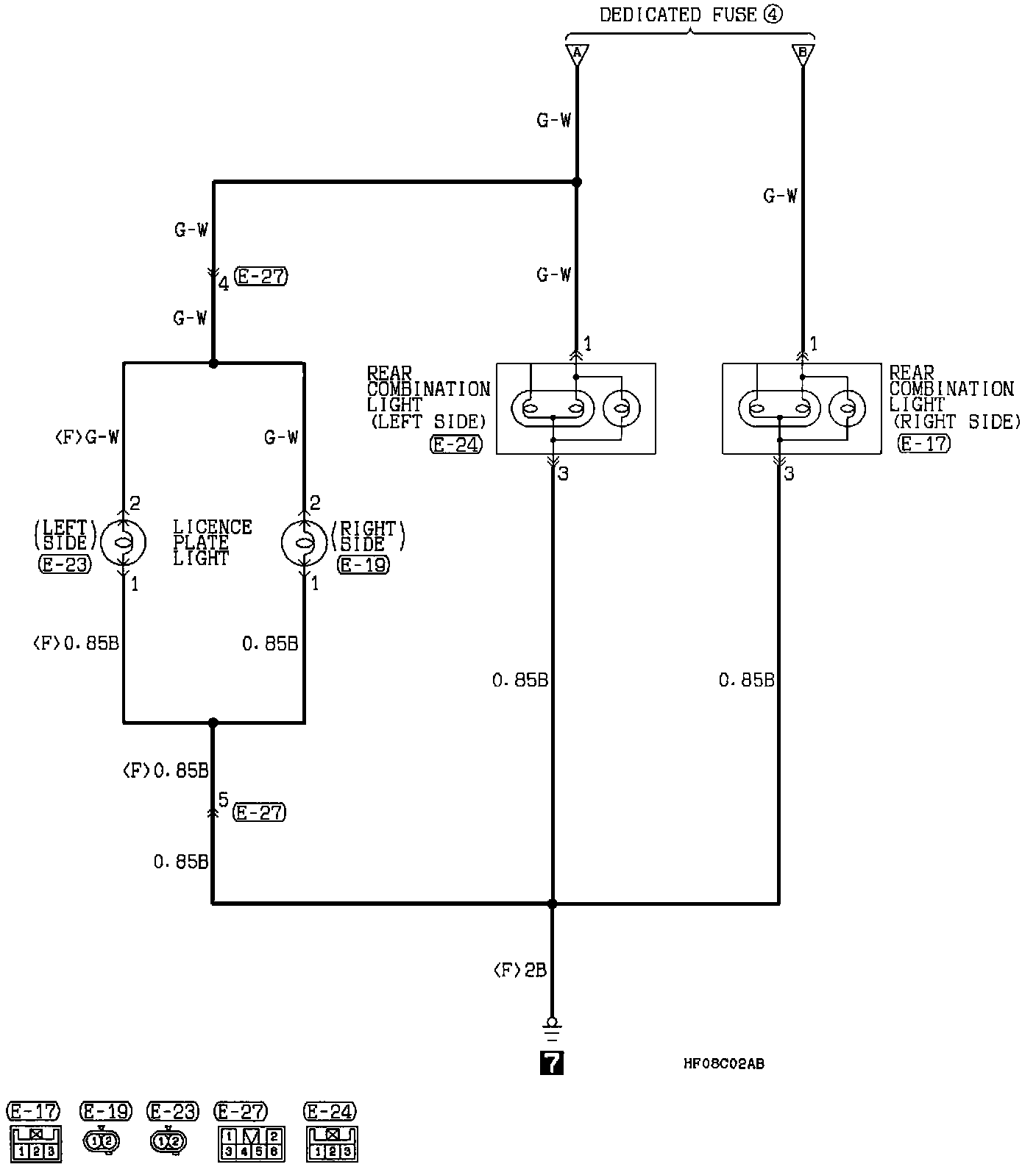

Taillight, Position Light And License Plate Light Circuit (Part 2 Of 2):
