Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
System Diagram

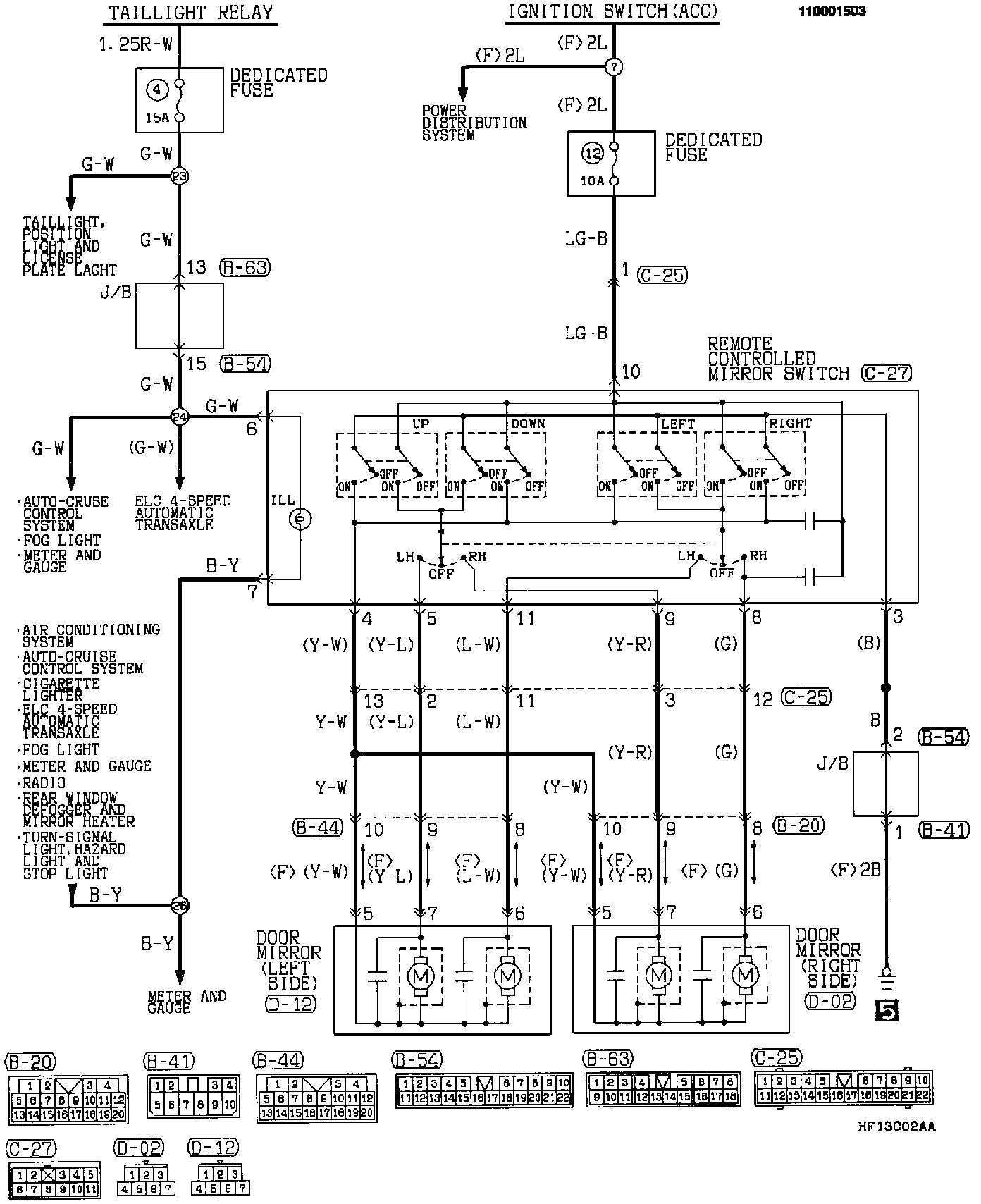

Remote Controlled Mirror:
