Electrical Diagrams
Electrical Diagrams

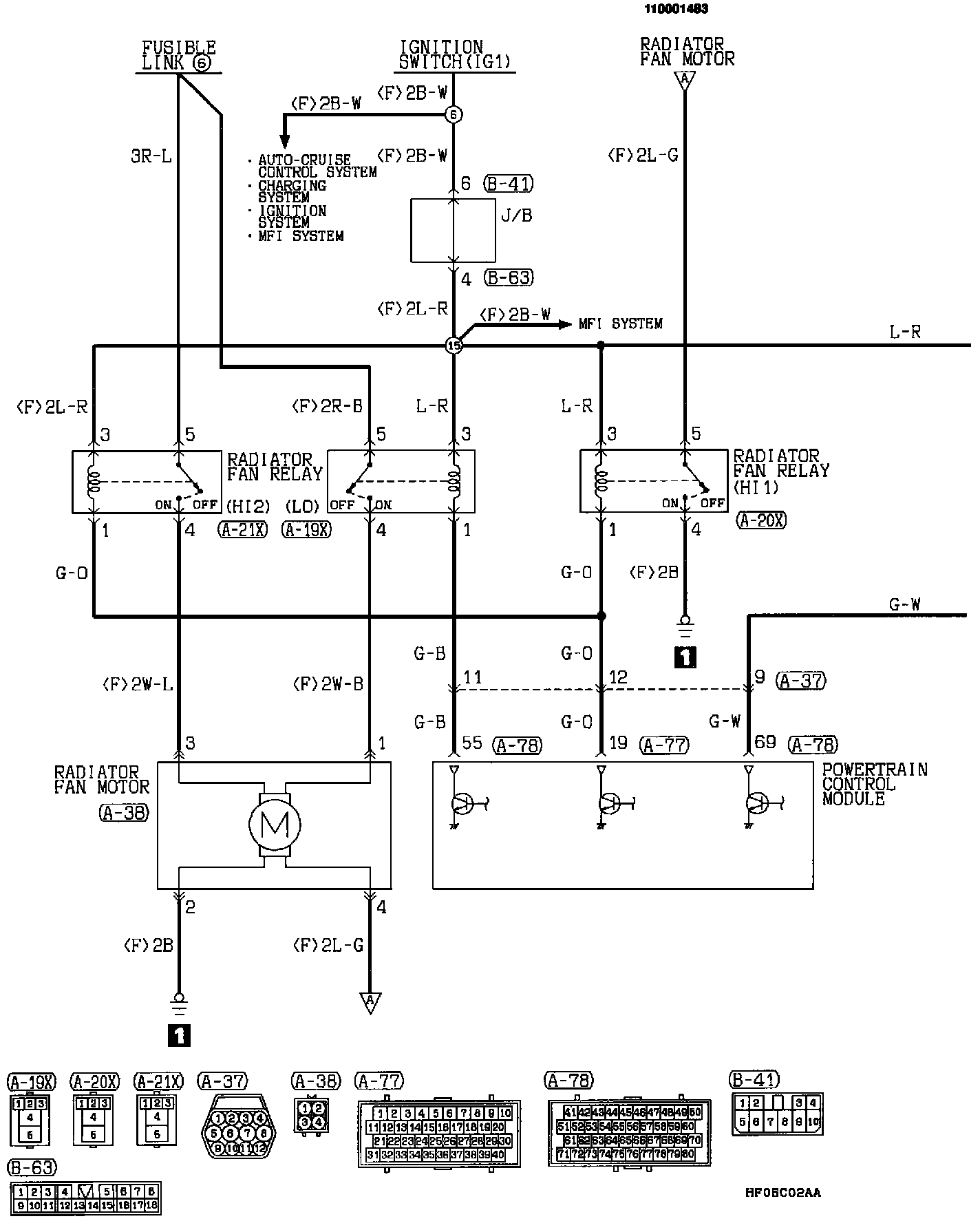

Cooling System Part 1 Of 3:

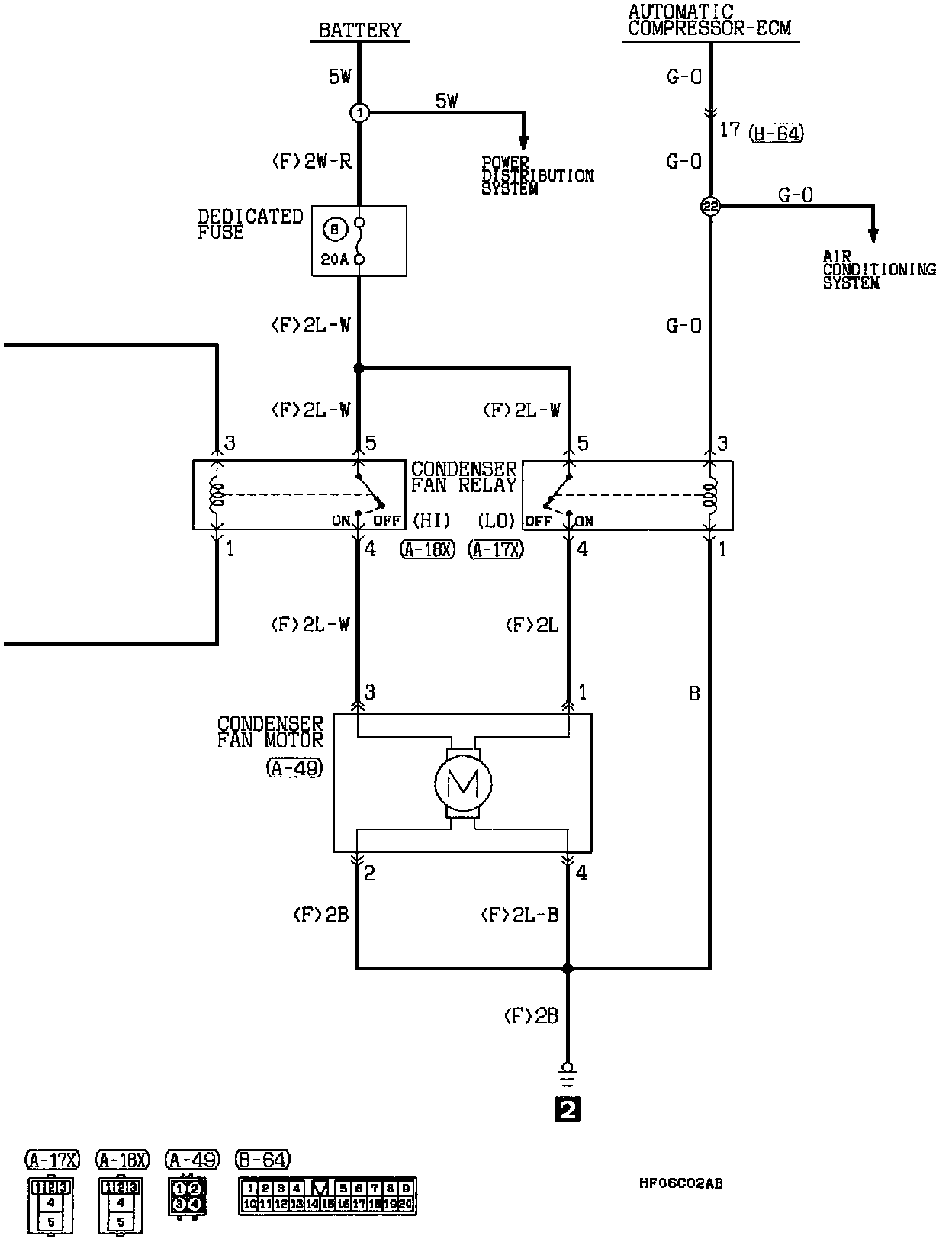

Cooling Fan Part 2 Of 3:

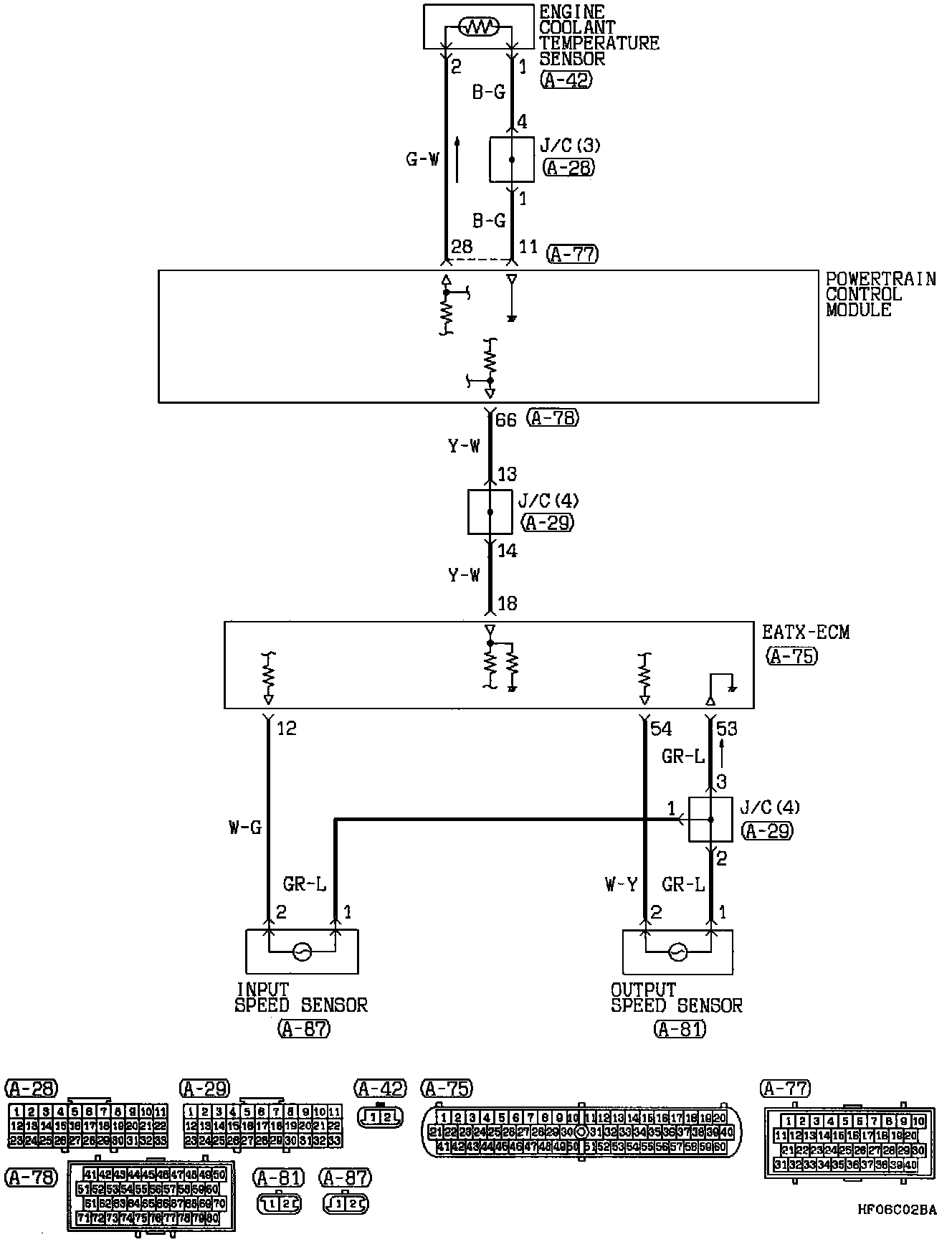

Cooling System Part 3 Of 3:
