Belt Tightening/Tension

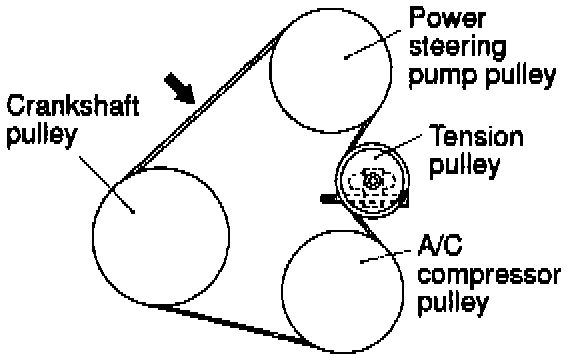

Fig. 4 Belt Tension Instpection:

1. Install a suitable belt tension gauge in the middle of belt span.
2. Correct belt tension is 66-86 lbs.
3. Adjust belt tension as follows:
a. Loosen tension pulley nut.
b. Adjust tension using adjusting bolt.
c. Adjust new belt to 110-132 lbs. and used belt to 66-86 lbs. [01]
d. Tighten pulley nut.


[01] -- A belt which has been installed and run for 15 minutes is considered "used".
