Home >> Chrysler >> 1996 >> Cirrus L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Complete Body and Chassis Connector Views >> Sheet 8W-80-43

Sheet 8W-80-43

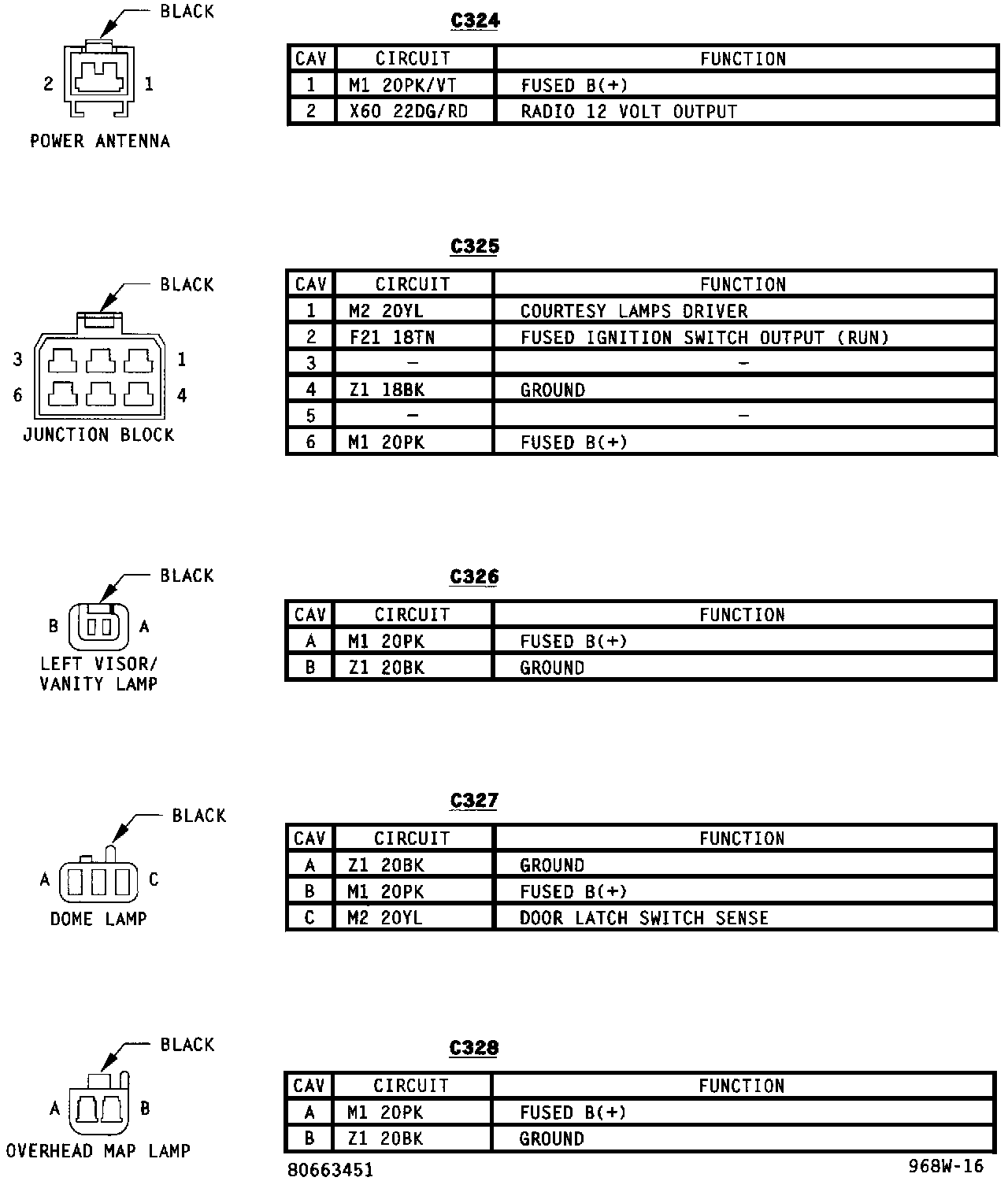

Connector Pin Outs (Part 40 Of 47):
