NTC-7B Checking For Oxygen Sensor Switching
NTC-7B Checking For Oxygen Sensor Switching
Related Images:

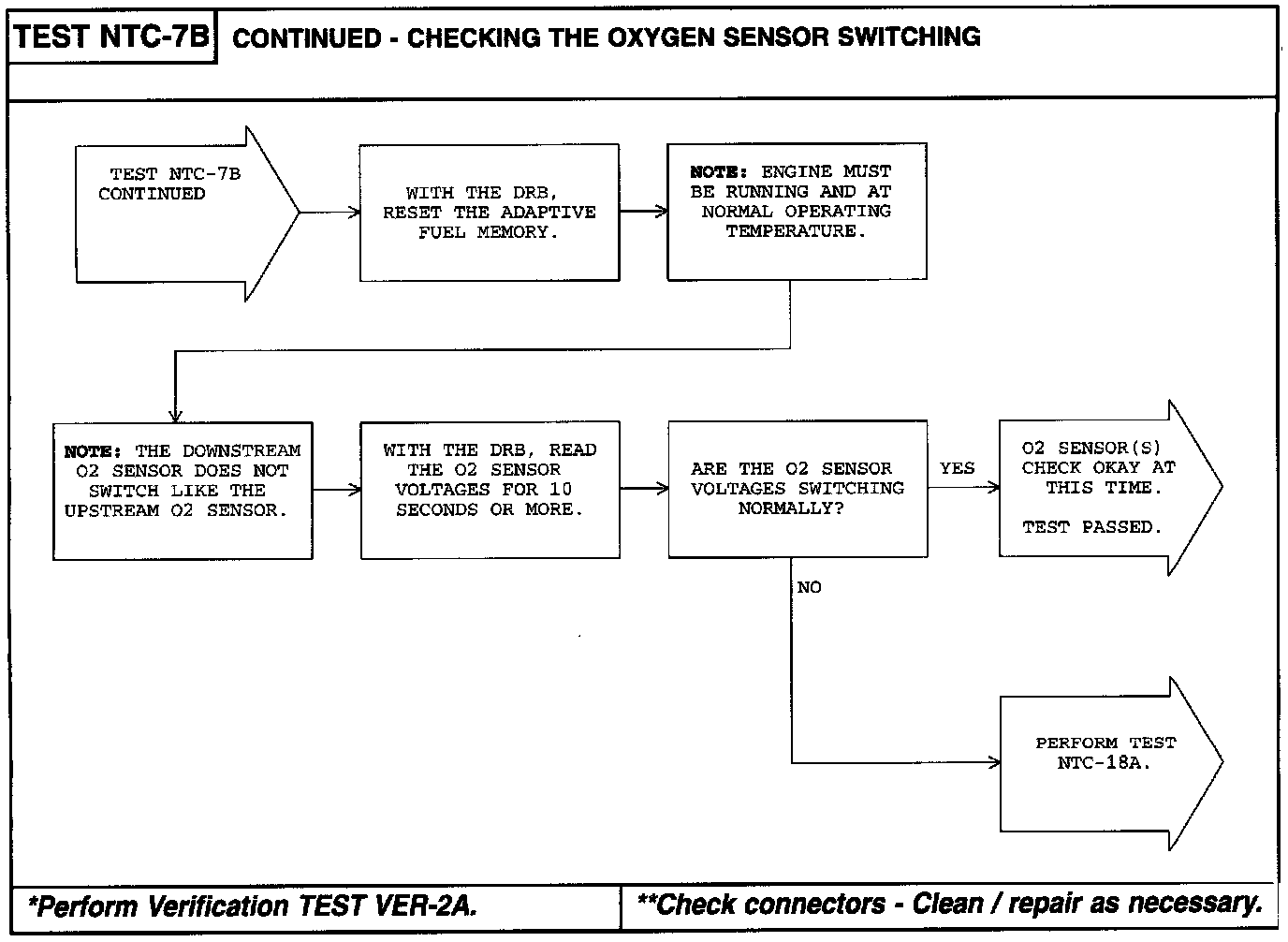

Flow Chart:
Related Images:
Flow Chart:
