SC-4A Checking Park/Neutral Position Switch
SC-4A Checking Park/Neutral Position Switch

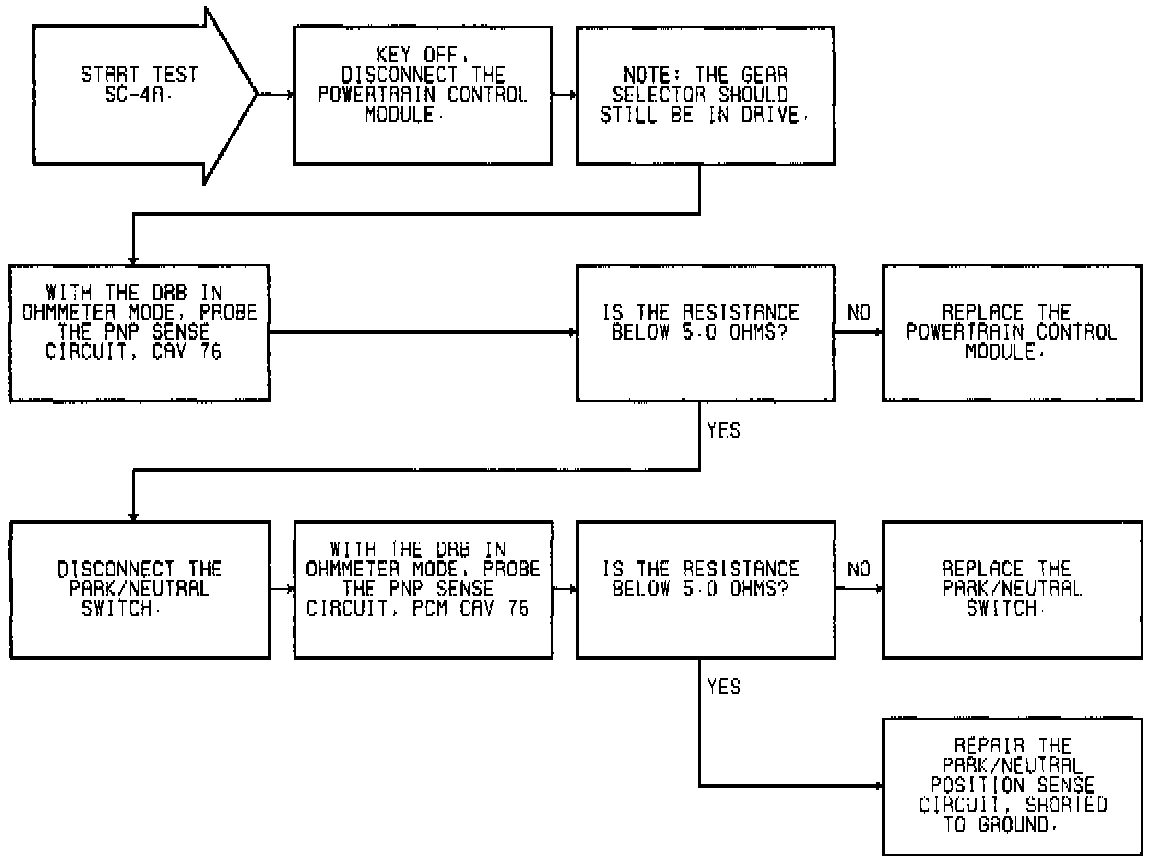

Fig. 63 Test SC-4A: Park/Neutral Position Switch Inspection:
