SC-5A Checking Speed Control Denied Message
SC-5A Checking Speed Control Denied Message

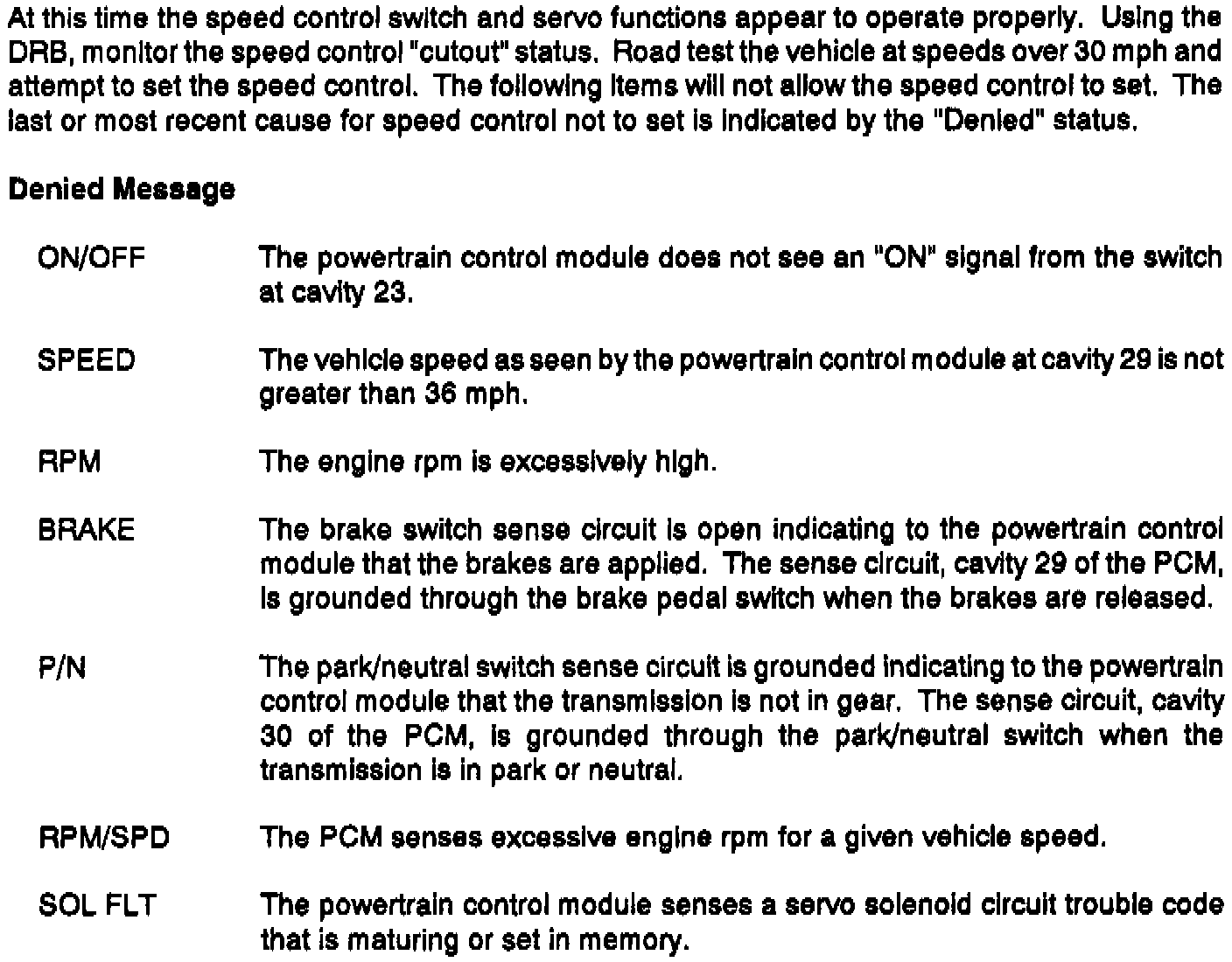

Fig. 65 Test SC-5A: Speed Control Denied Message Inspection:
