Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1996
>>
Sebring L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Testing and Inspection
>>
B Charts - Radio
>>

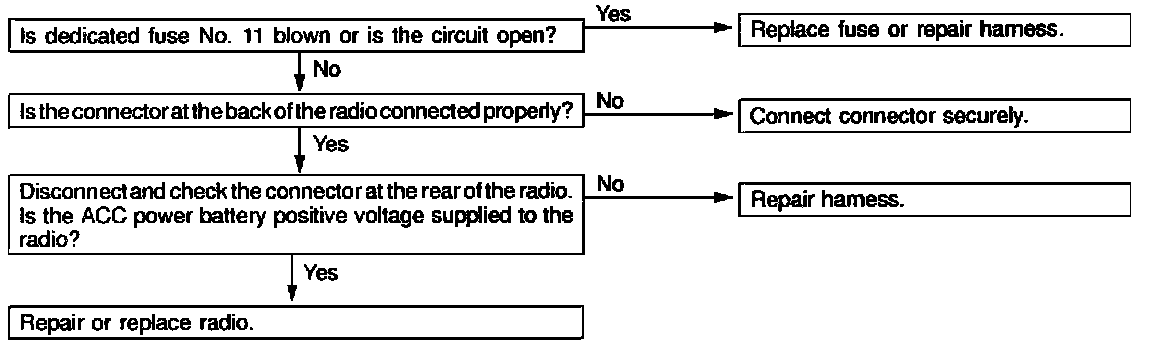

Chart B-1 No Power Is Supplied When the Switch Is Set to ON
Chart B-1 No Power Is Supplied When the Switch Is Set to ON
Chart B 1:
No power is supplied when the switch is set to ON.
