Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Vehicle Connector Locations >> C Connectors - Instrument Panel And Floor Console Harness

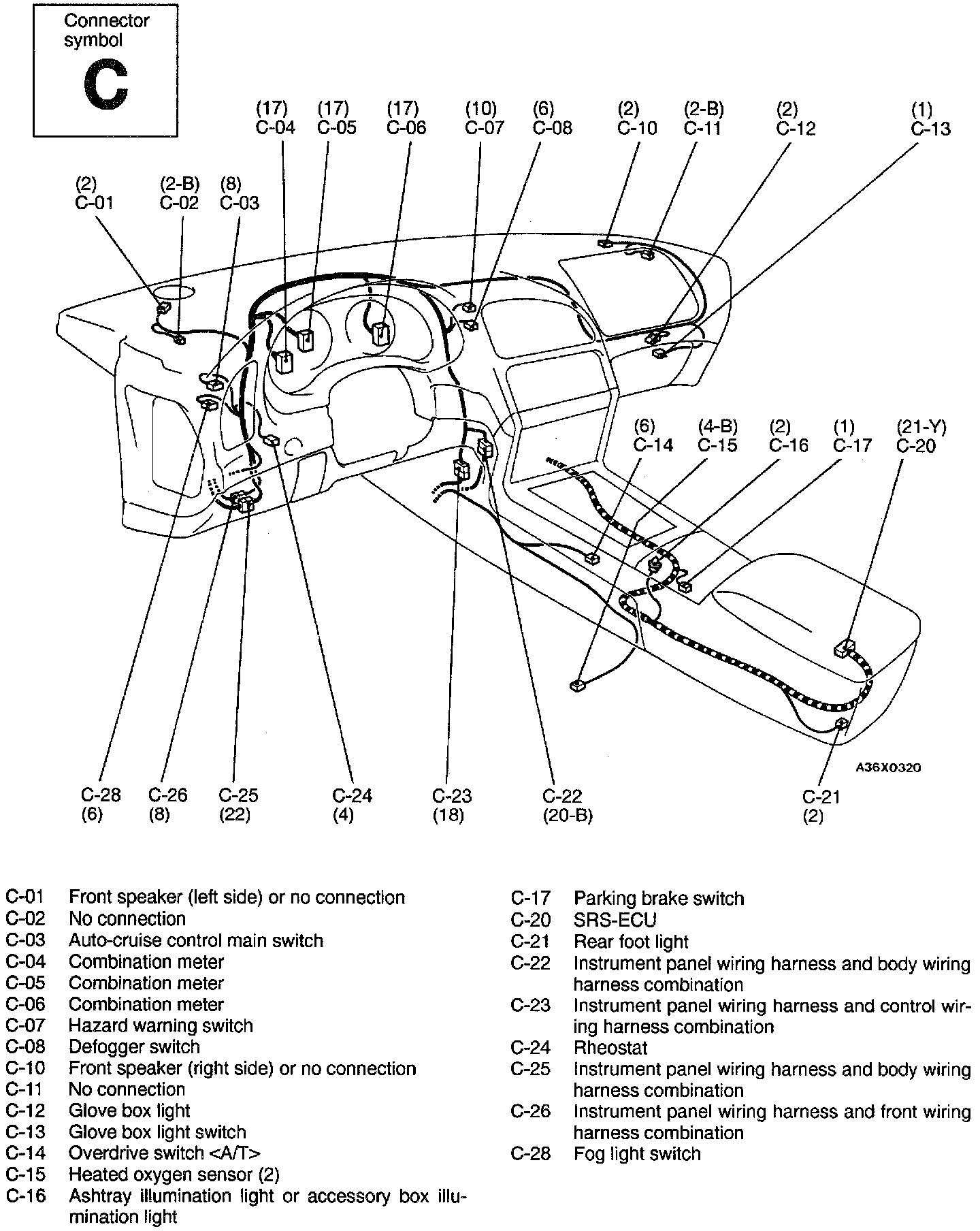

C Connectors - Instrument Panel And Floor Console Harness

C Connectors - Instrument Panel And Floor Console Harness:
