Electrical Diagrams

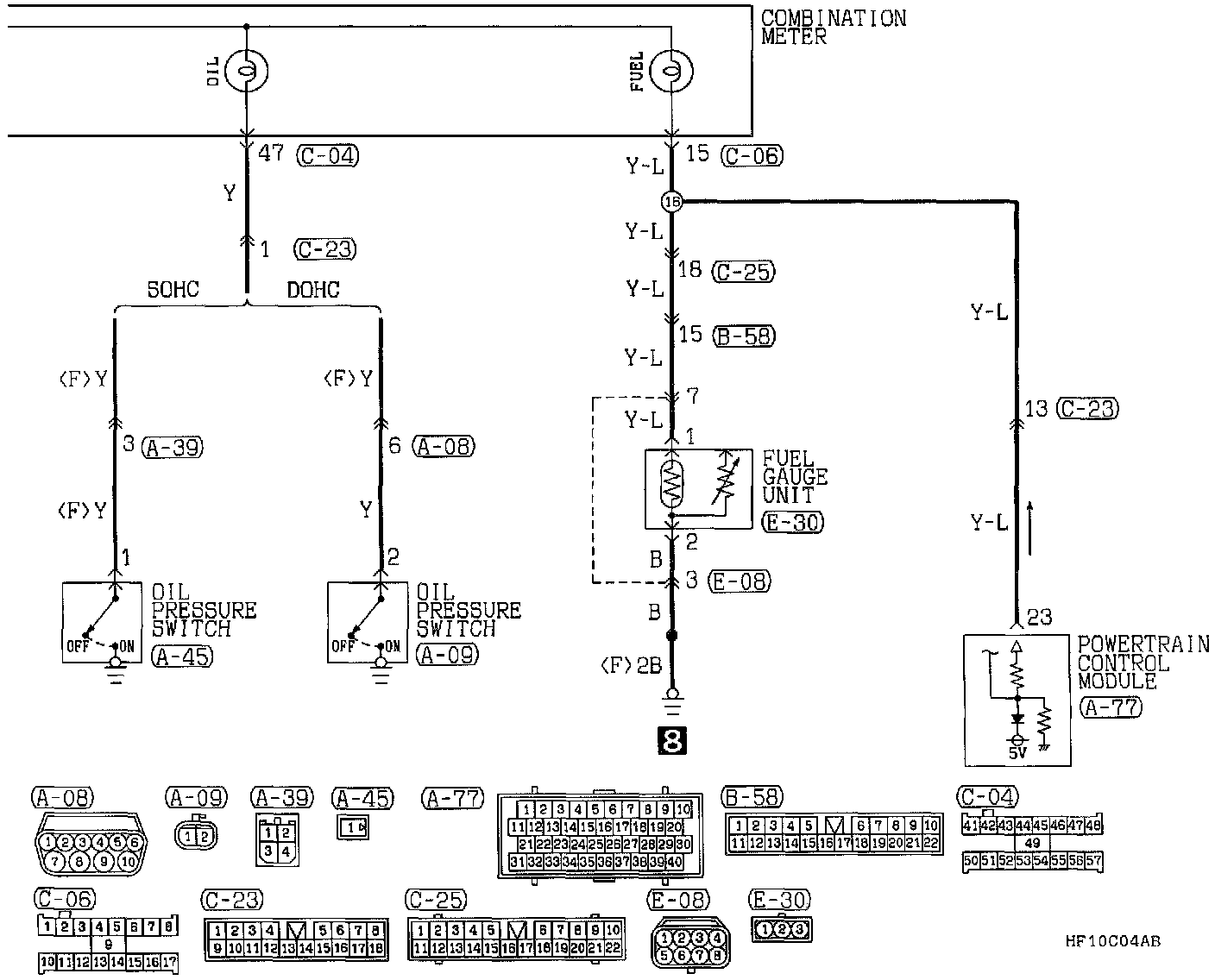

Brake, Oil Pressure And Low Fuel Level Warning Light (Part 1 Of 2):

Brake, Oil Pressure And Low Fuel Level Warning Light (Part 2 Of 2):
