Chrysler
>>
1996
>>
Sebring V6-2.5L SOHC 24 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Control Motor Locations
Control Motor Locations

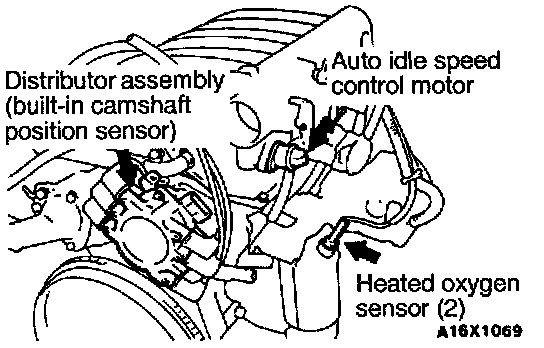

Auto Idle Speed Control Motor:
Idle Air Control Motor:
