Cooling System
Cooling System

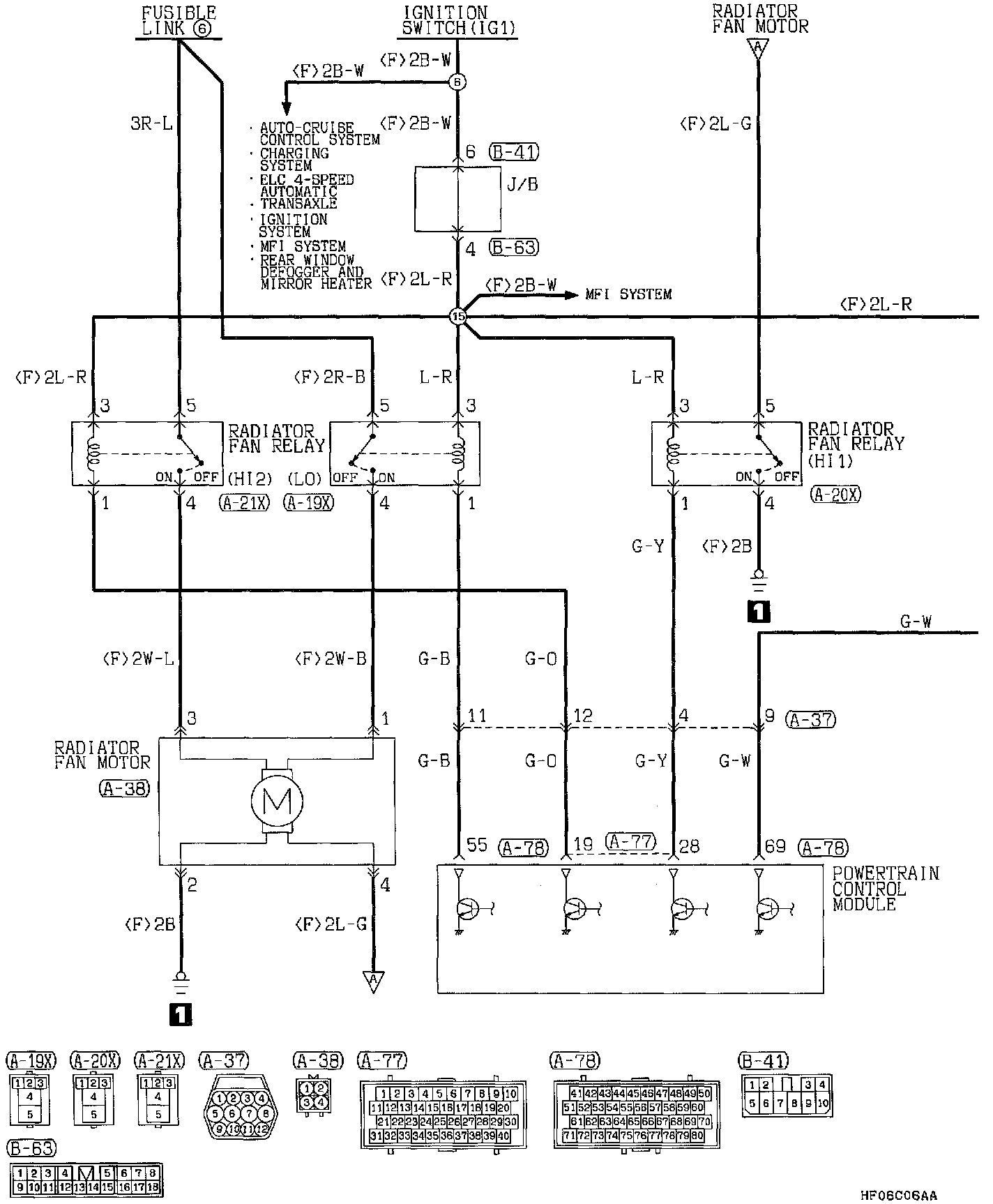

Cooling System Part 1 Of 3:

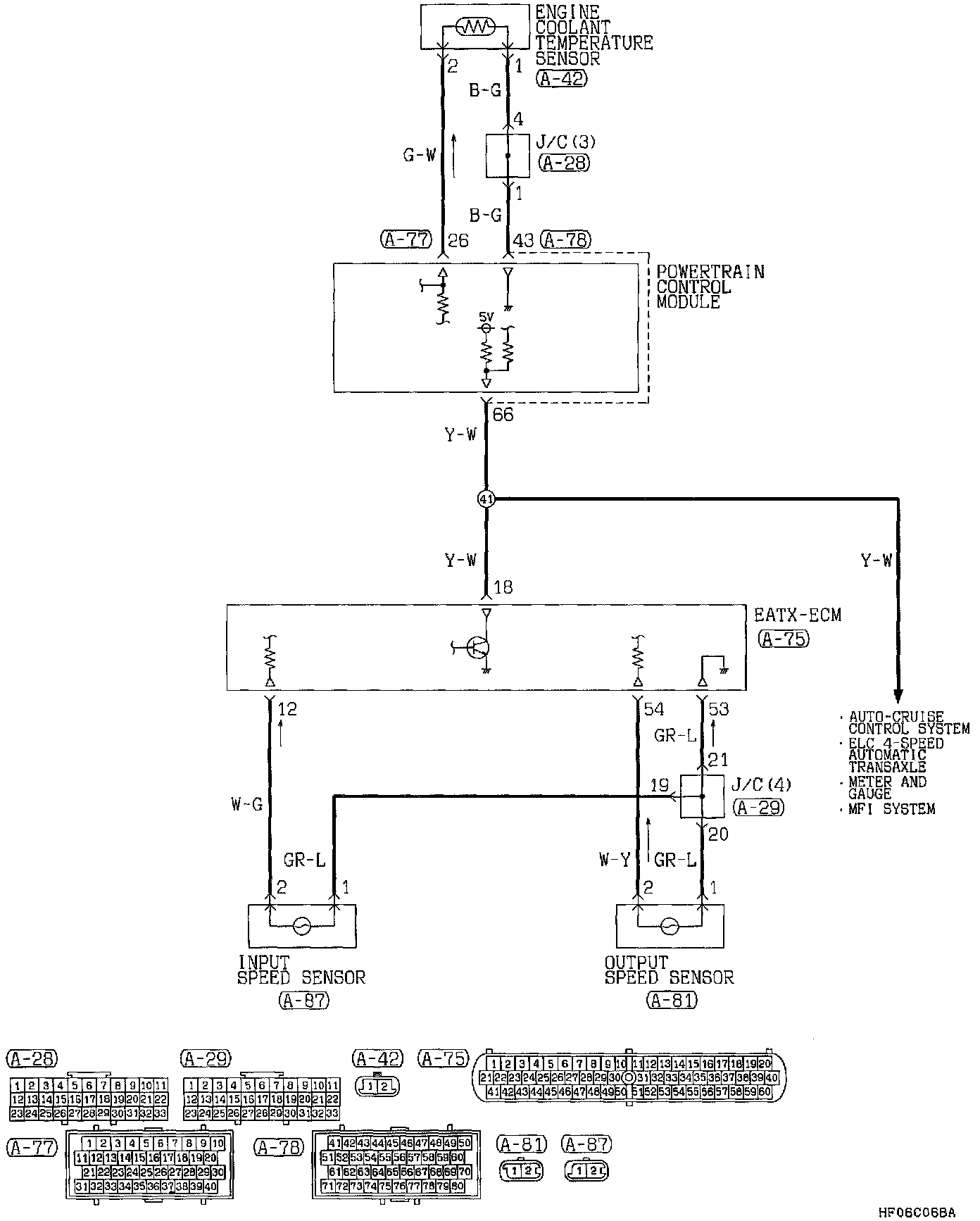

Cooling System Part 2 Of 3:
Cooling System Part 3 Of 3:
