Wiring Diagrams

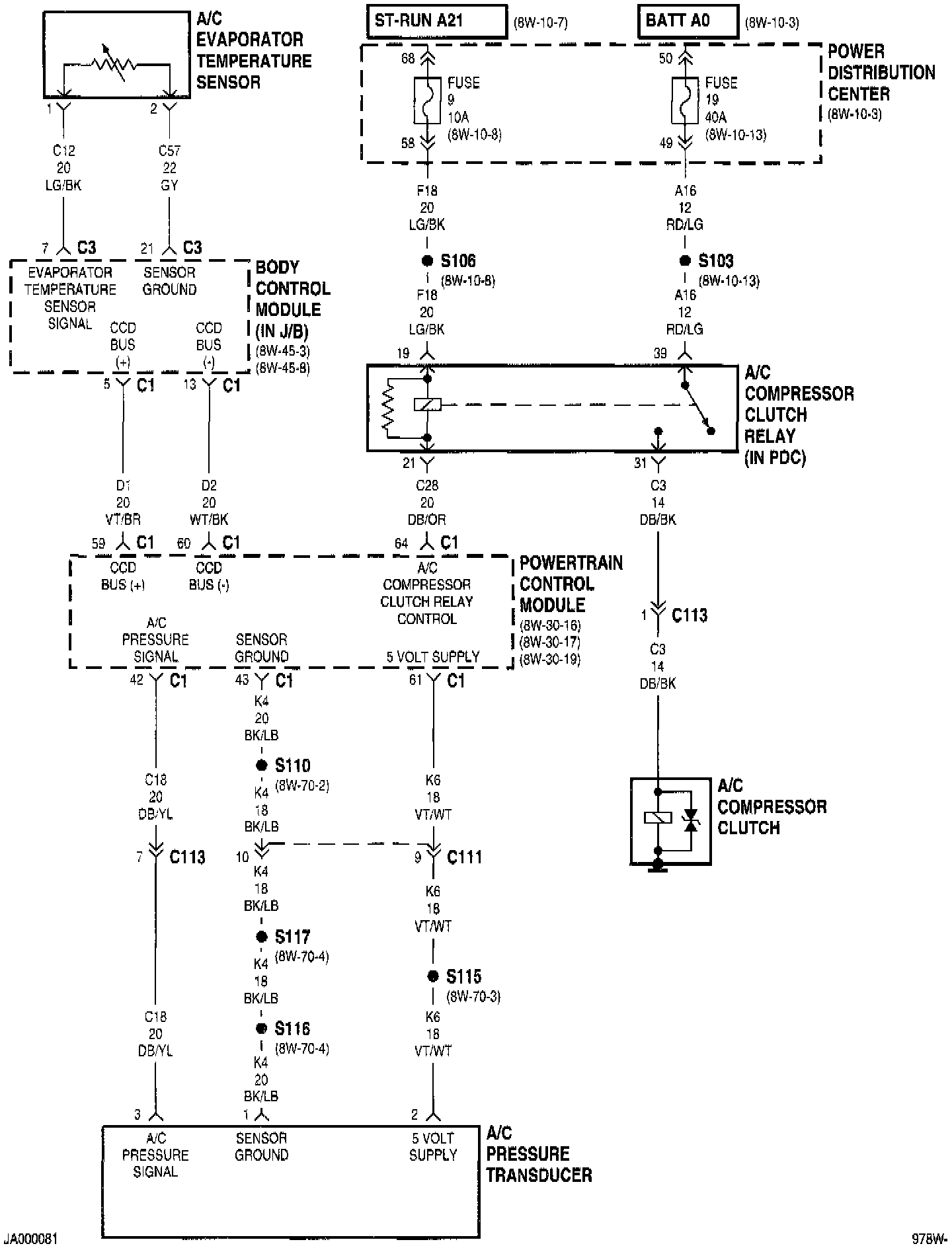

Air Conditioning - Heater (Part 1 Of 3):

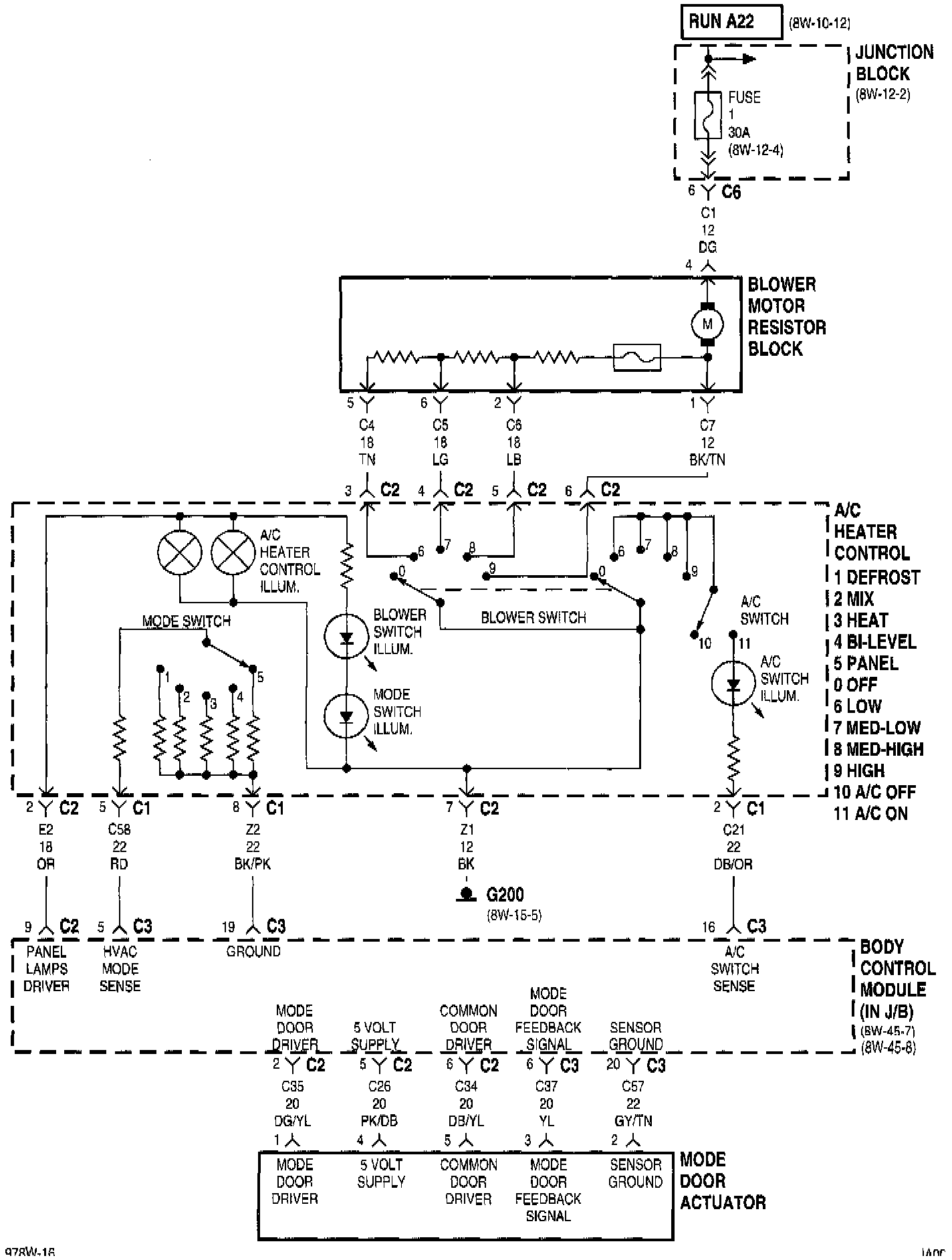

Air Conditioning - Heater (Part 2 Of 3):

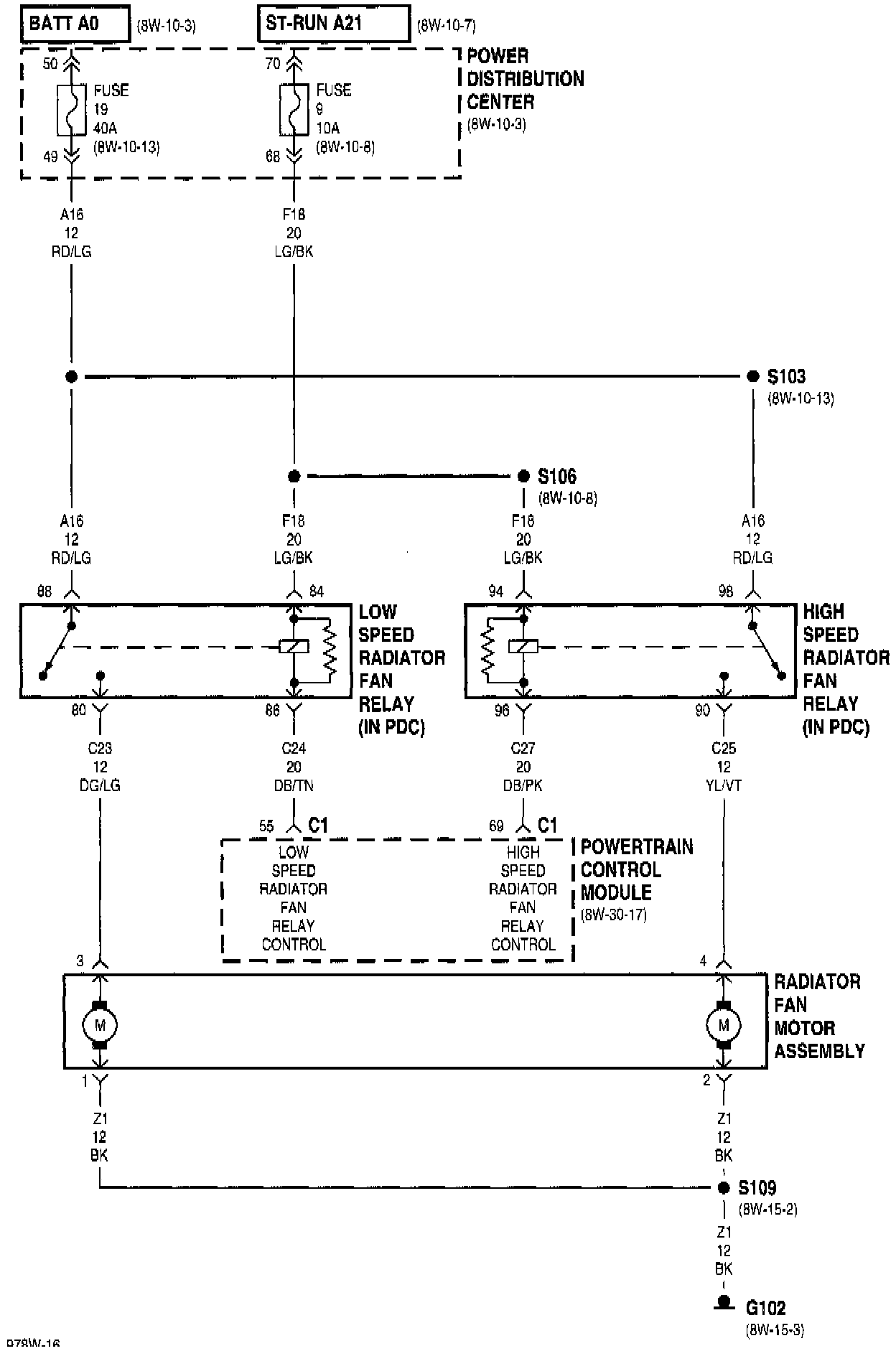

Air Conditioning - Heater (Part 3 Of 3):







NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
