Home >> Chrysler >> 1997 >> Cirrus L4-2.4L VIN X >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ** Symptom Charts

** Symptom Charts

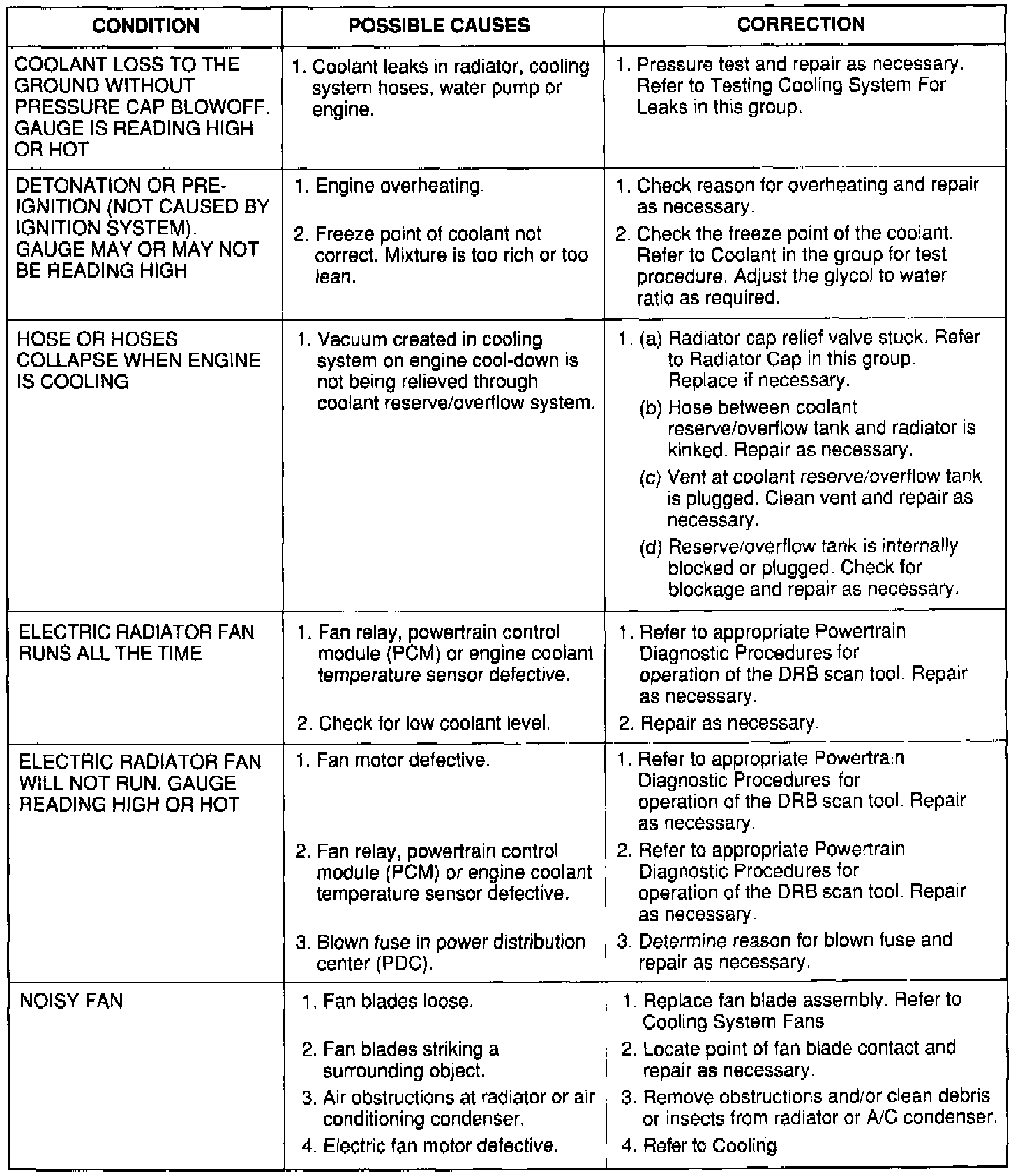

(Part 1 Of 6):

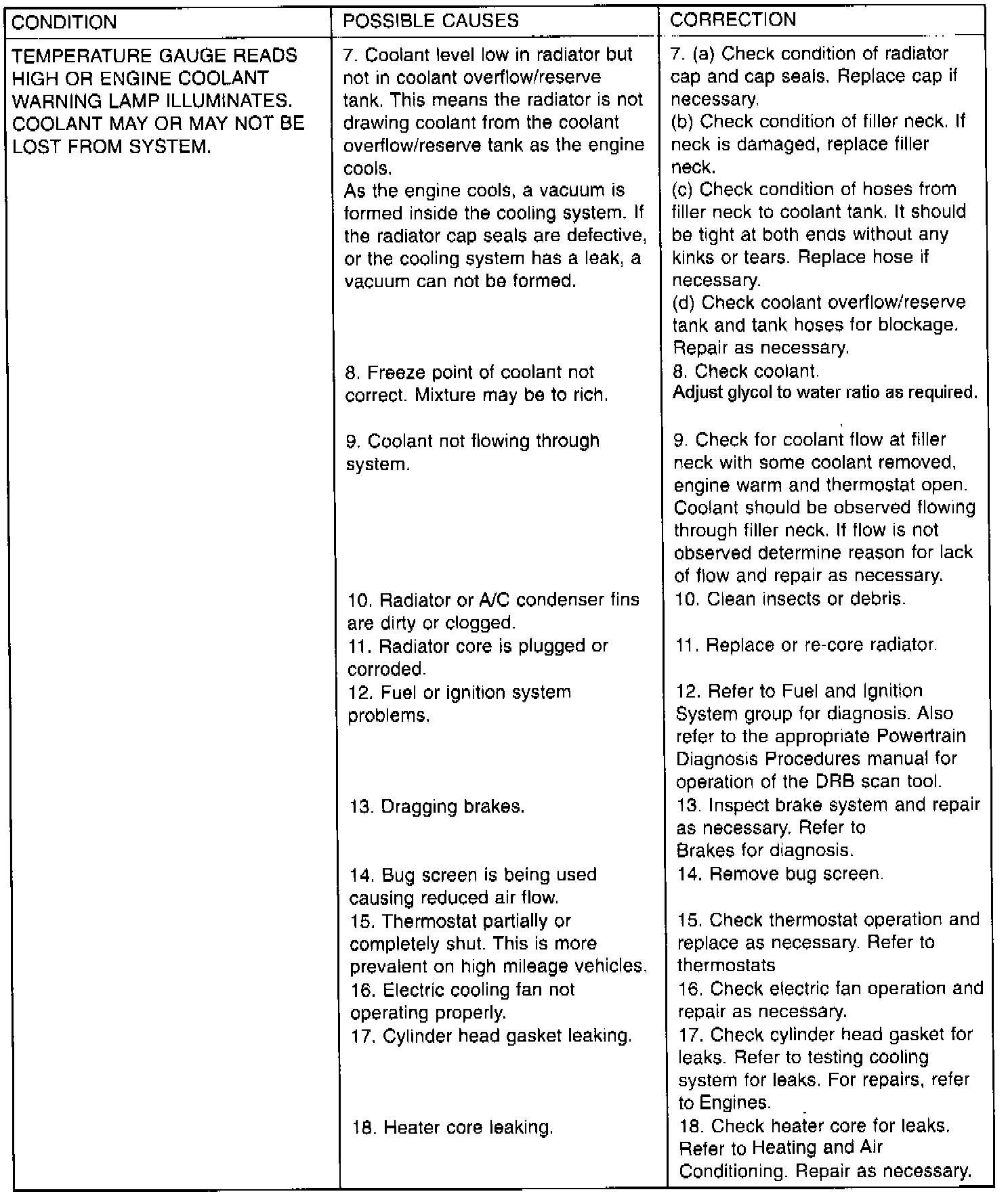

(Part 2 Of 6):

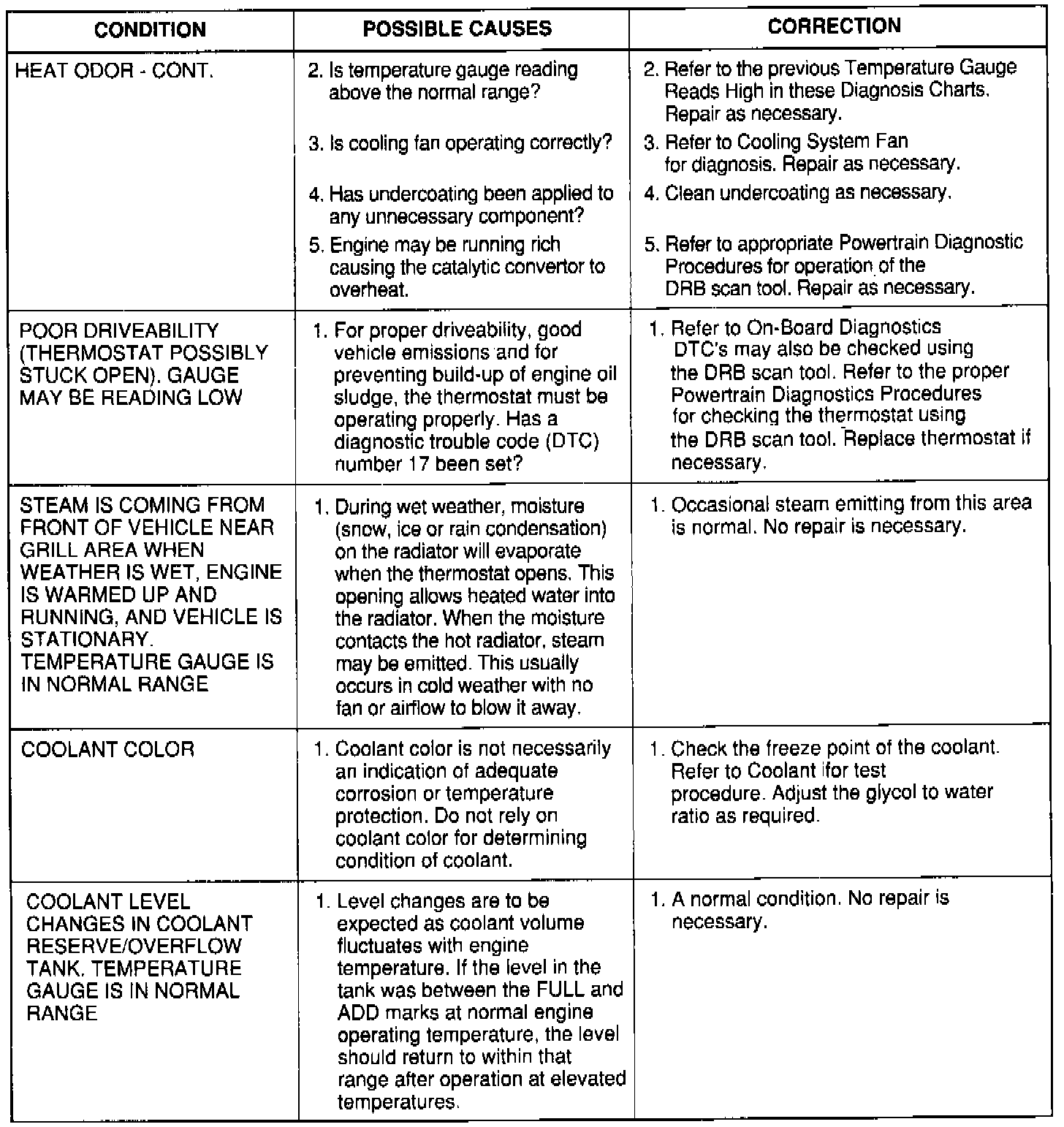

(Part 3 Of 6):

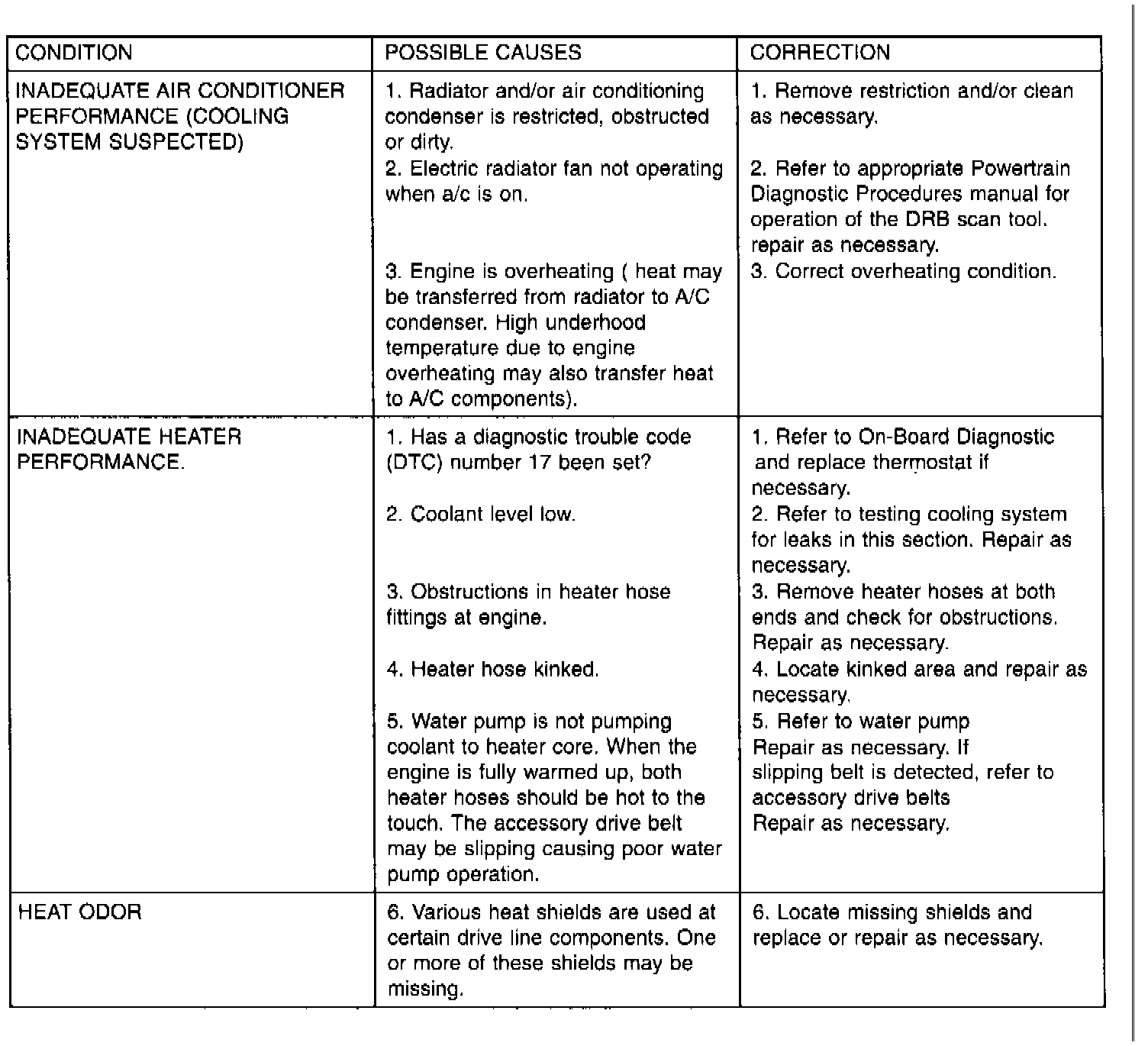

(Part 4 Of 6):

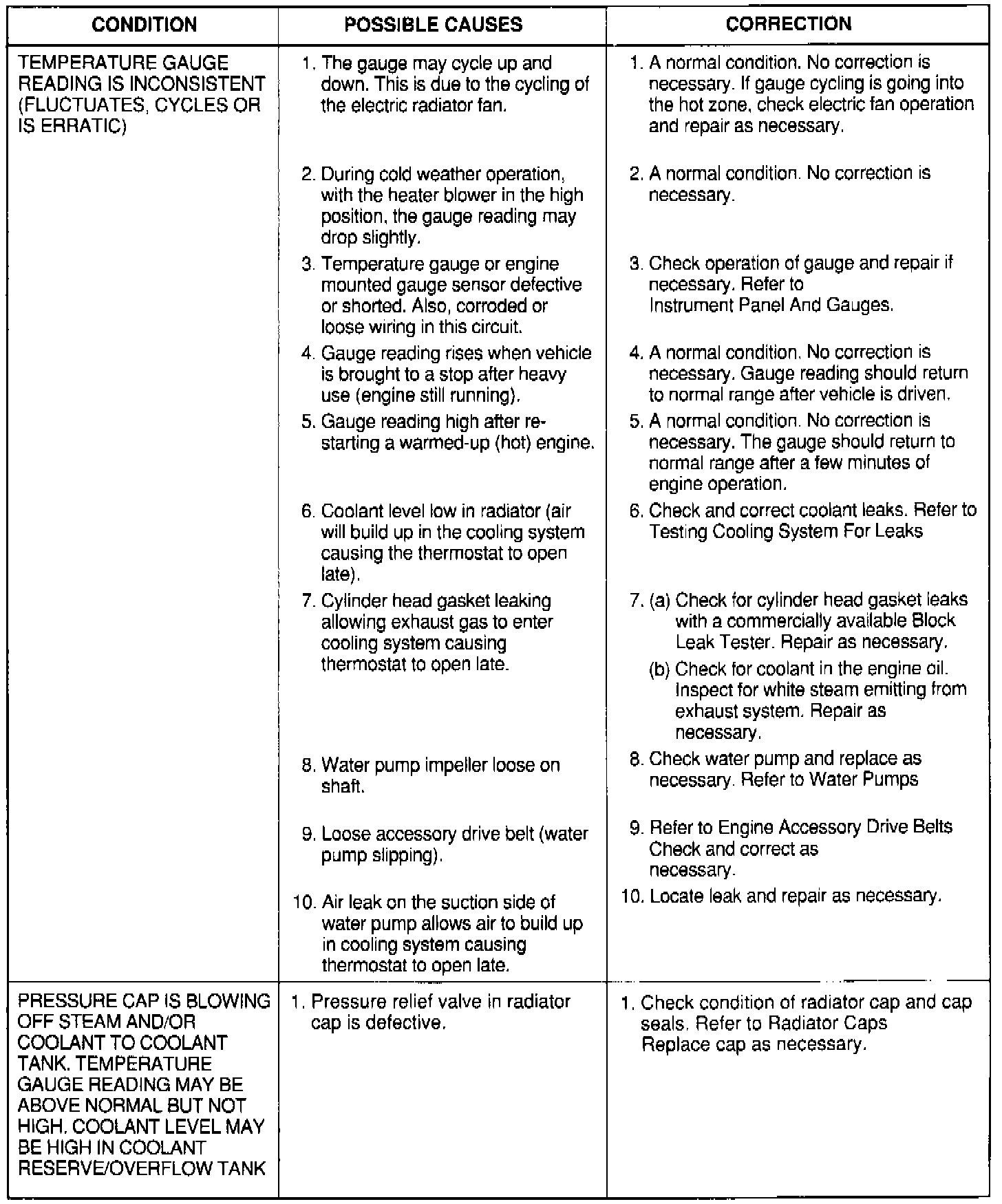

(Part 5 Of 6):



(Part 6 Of 6):
