Windshield Washer Reservoir: Service and Repair

REMOVAL

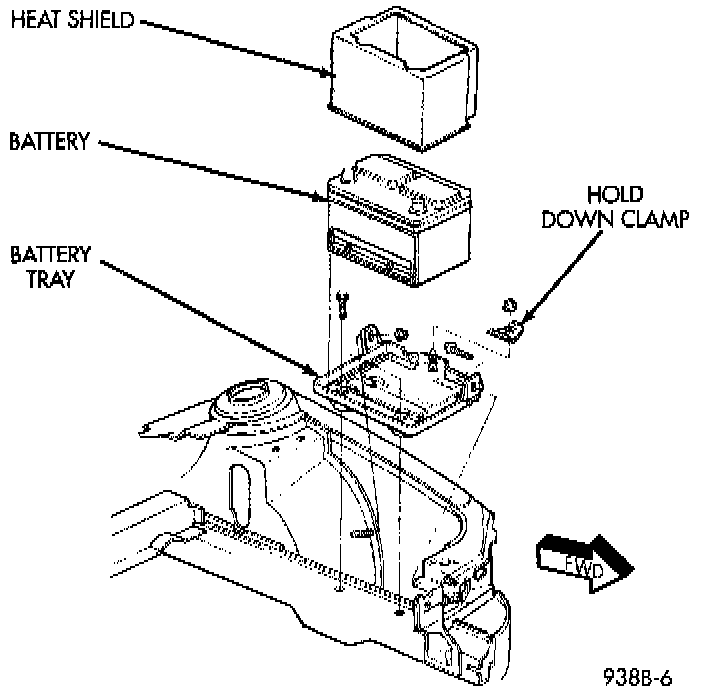

Battery Removal:

1. Disconnect the battery terminals. Remove battery and battery tray.

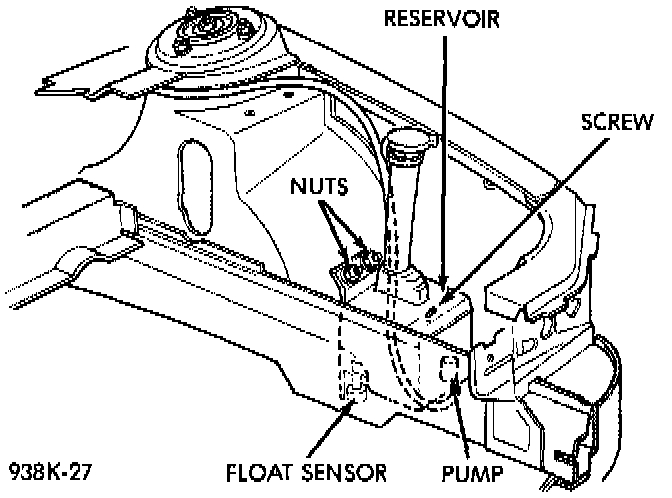

Reservoir Removal:

2. Remove two reservoir retaining nuts and screw then remove reservoir.
3. Disconnect the wire connector from the reservoir pump and float sensor.
4. Disconnect the washer hose and block the liquid outlet to prevent the liquid from running out of the reservoir.

INSTALLATION
1. Connect washer hose and install the reservoir.
2. Connect the wire connectors.
3. Install reservoir retaining nuts and screw. Tighten to 9 to 14 N.m (80 to 124 in. lbs.) torque.
4. Install battery tray and battery. Connect battery terminals.
