Oil Replacement

1. Remove transaxle drain plug.
2. Drain oil.
3. Tighten drain plug to specified torque.

Tightening torque: 30 Nm (22 ft. lbs.)

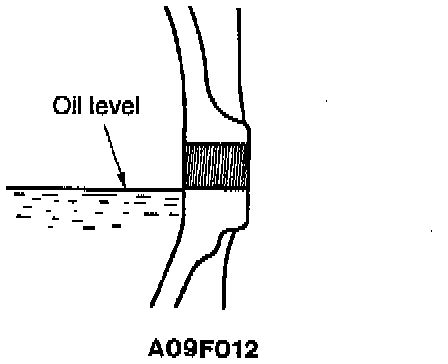

4. Remove filler plug and fill with specified oil till the level comes to the lower portion of filler plug hole.

Specified oil: MOPAR MS9417 MTX FLUID PIN 4773167
Quantity: 2.0 dm3 (2.1 qts.)

5. Tighten filler plug to specified torque.

Tightening torque: 30 Nm (22 ft. lbs.)
