Brakes and Traction Control: Description and Operation

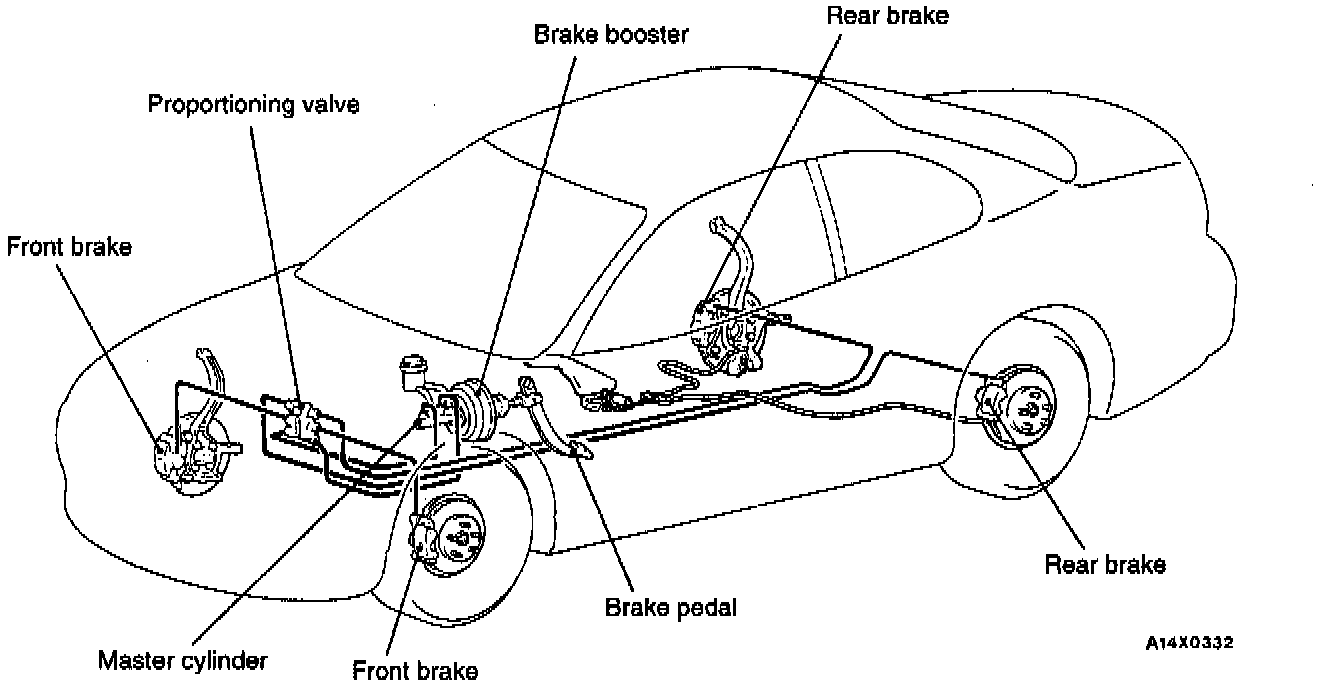

Base Brake System Construction Diagram:

The brake system has high reliability and durability which maintains excellent braking performance. A dual chamber type master cylinder is standard. Both a single type and a tandem type brake booster have been adopted. A disc brake system is used on the front, with a floating, single-piston caliper and ventilated disc. Both disc brakes and drum brakes have been adopted as the rear brakes. The rear disc brakes come with a floating, single-piston caliper and solid or ventilated disc. Drum brakes use a leading-trailing type brake assembly.
