Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 1997 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Lamp >> Stop Lamp Wiring

Stop Lamp Wiring

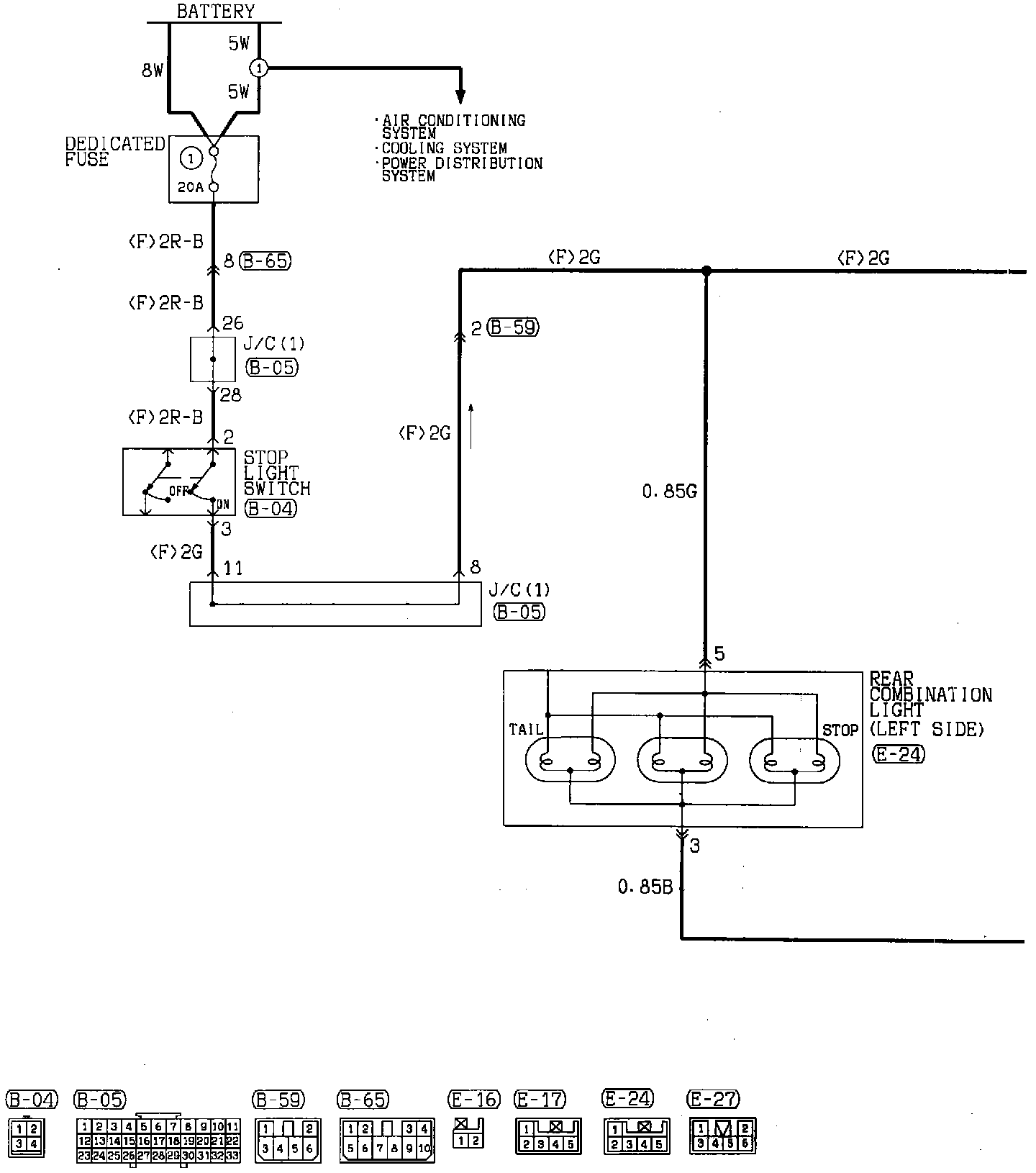

Stop Light (Part 1 Of 2):

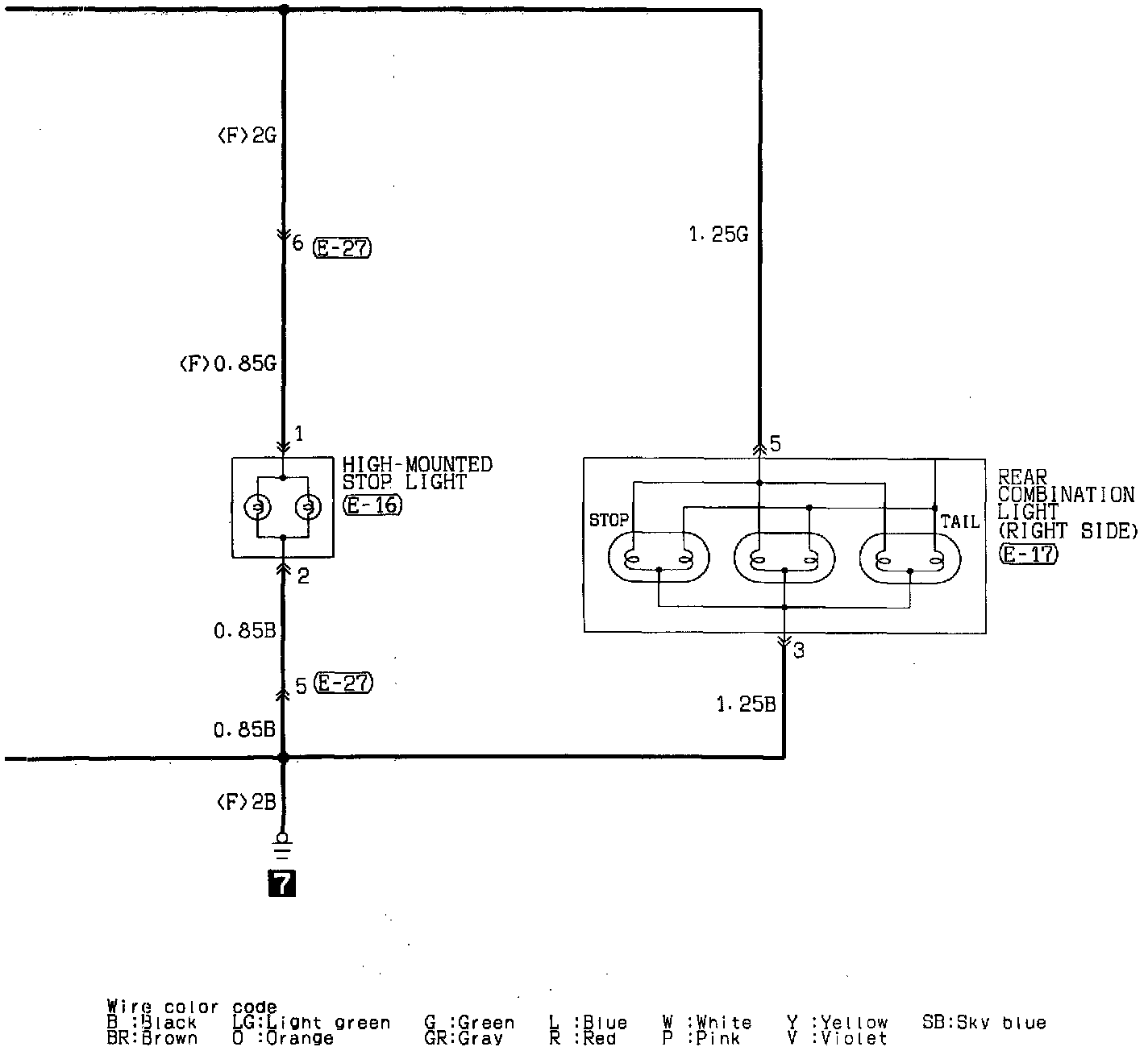

Stop Light (Part 2 Of 2):
