Cooling System
Cooling System

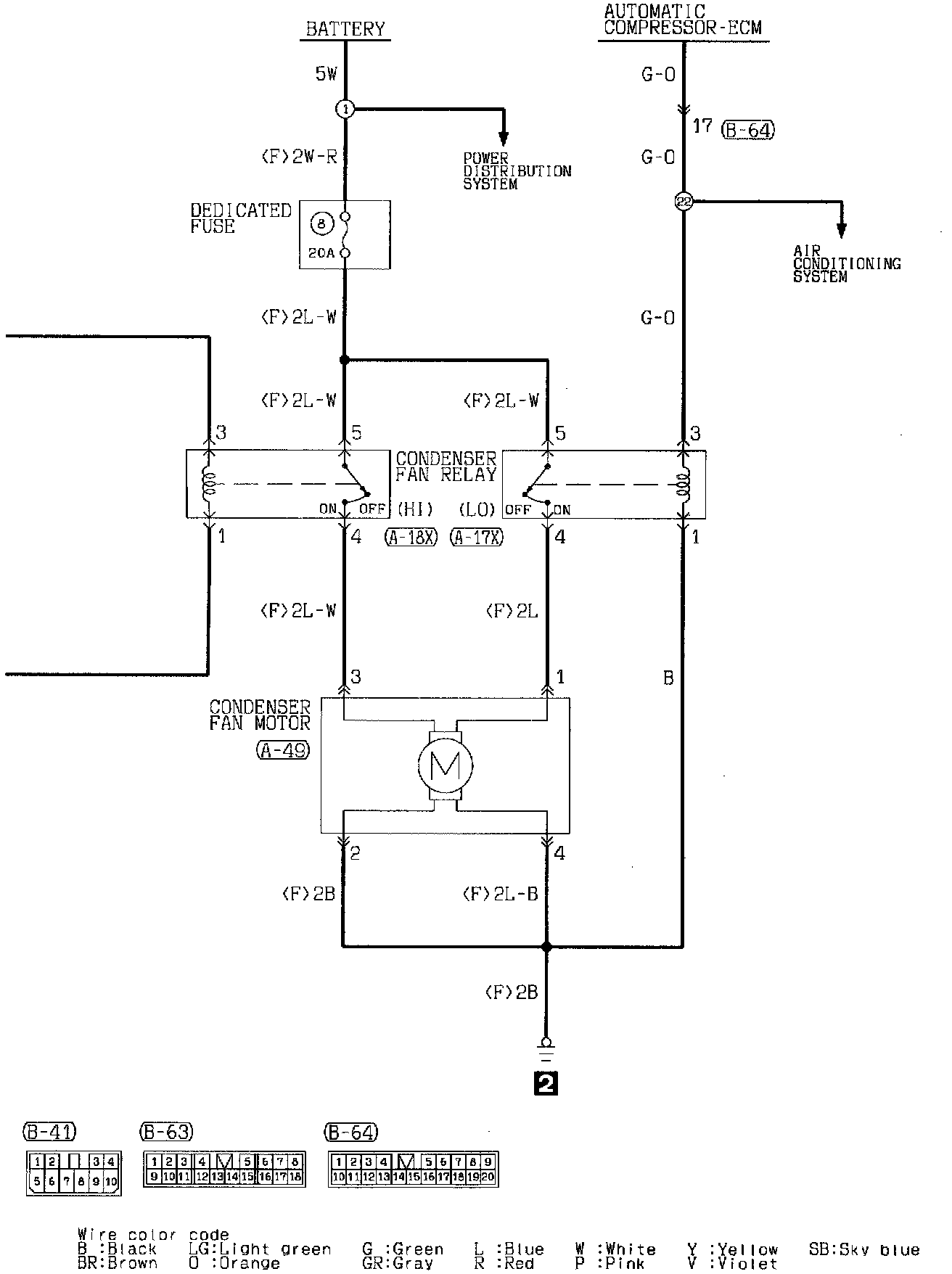

Cooling System (Part 1 Of 3):
Cooling System (Part 2 Of 3):
Cooling System (Part 3 Of 3):
