Home >> Chrysler >> 1997 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Vehicles With Amplifier

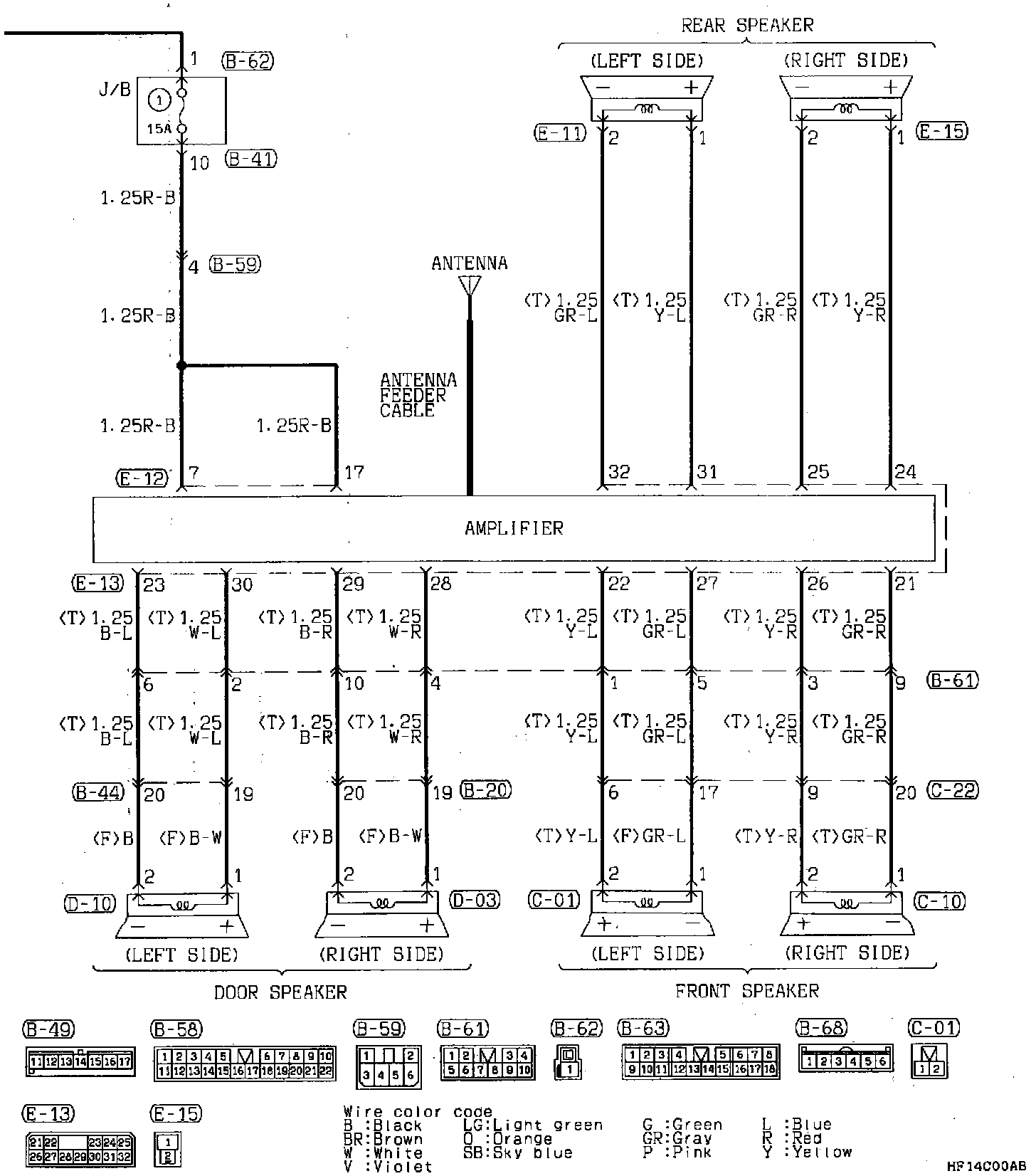

Vehicles With Amplifier

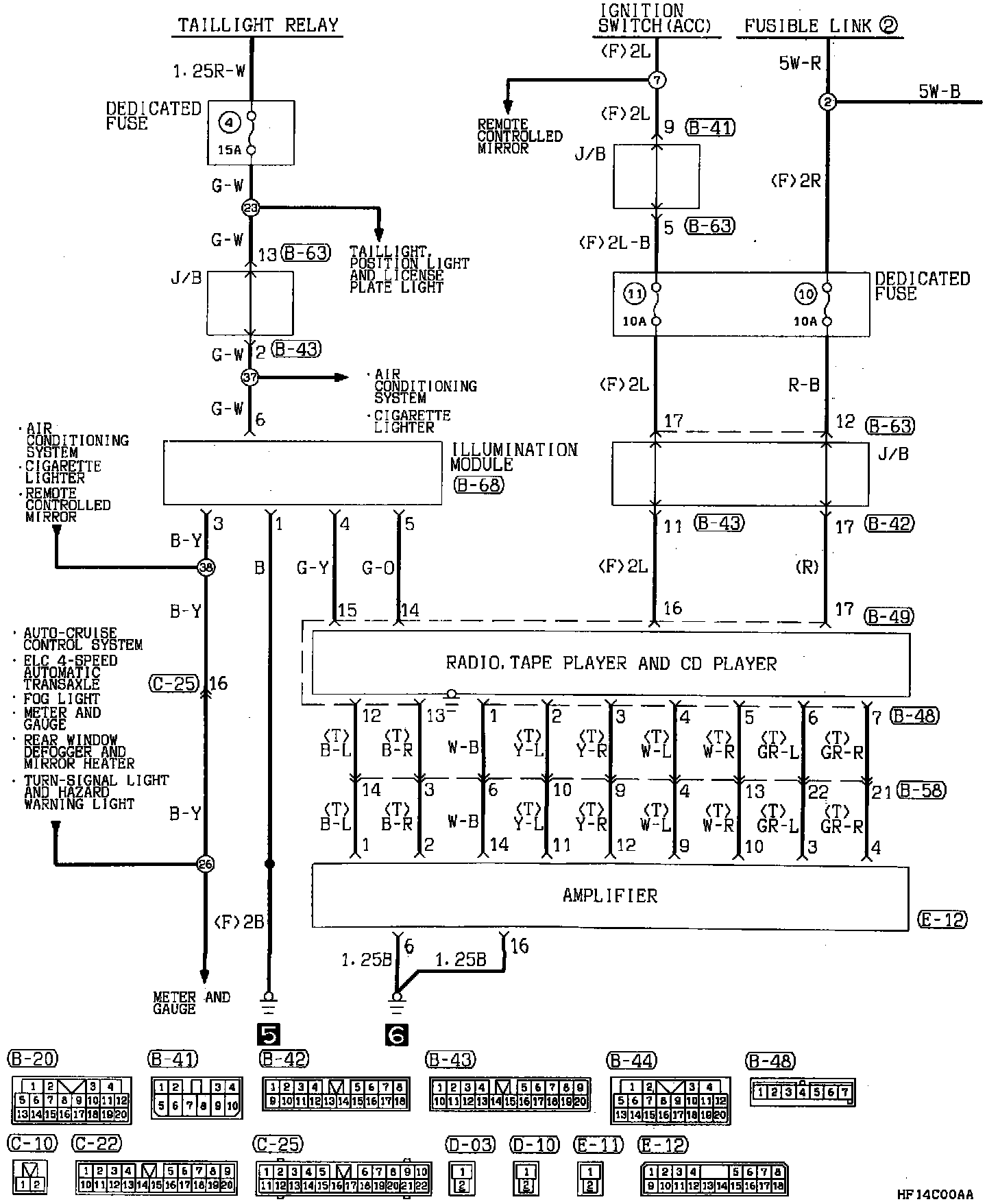

Radio With Tape Player (Part 1 Of 2):



Radio With Tape Player (Part 2 Of 2):
