Steering: Testing and Inspection

STEERING ANGLE CHECK

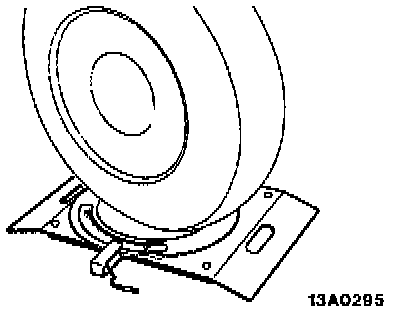

1. Locate front wheels on turning radius gauge and measure steering angle.
- Inside wheel: 32.5 +/-2°
- Outside wheel: 27°
2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
