Trailing Arm: Service and Repair

REMOVAL

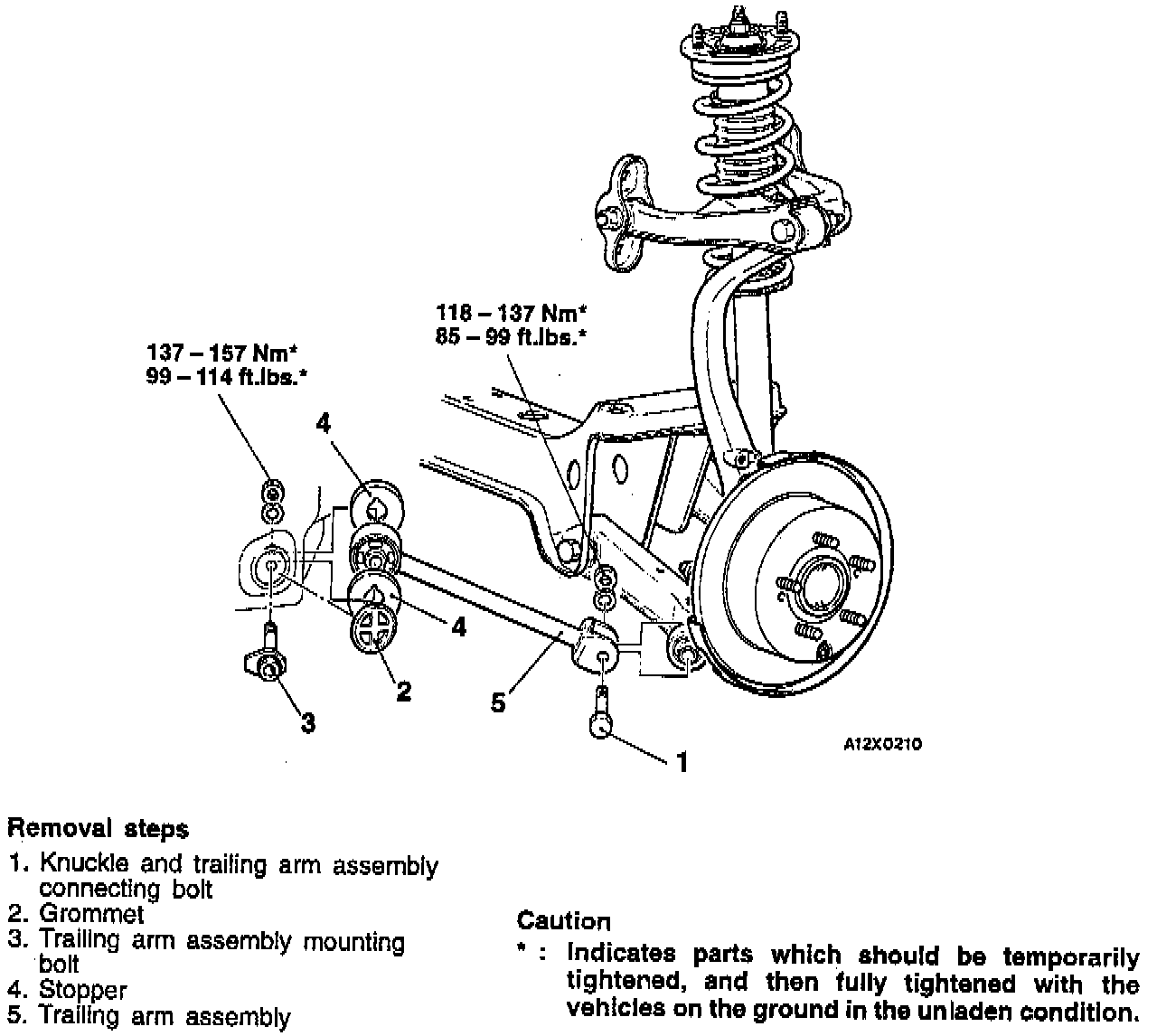

Follow removal procedure outlined in the illustration.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the trailing arm for bends or damage.

INSTALLATION
Follow removal procedure in reverse order for installation, noting the following.
- Perform wheel alignment check and adjustment.
