Rear Cover

Removal
1. Remove front timing belt covers.
2. Remove Timing Belt.
3. Remove timing belt idler pulley.
4. Remove both camshaft sprockets.

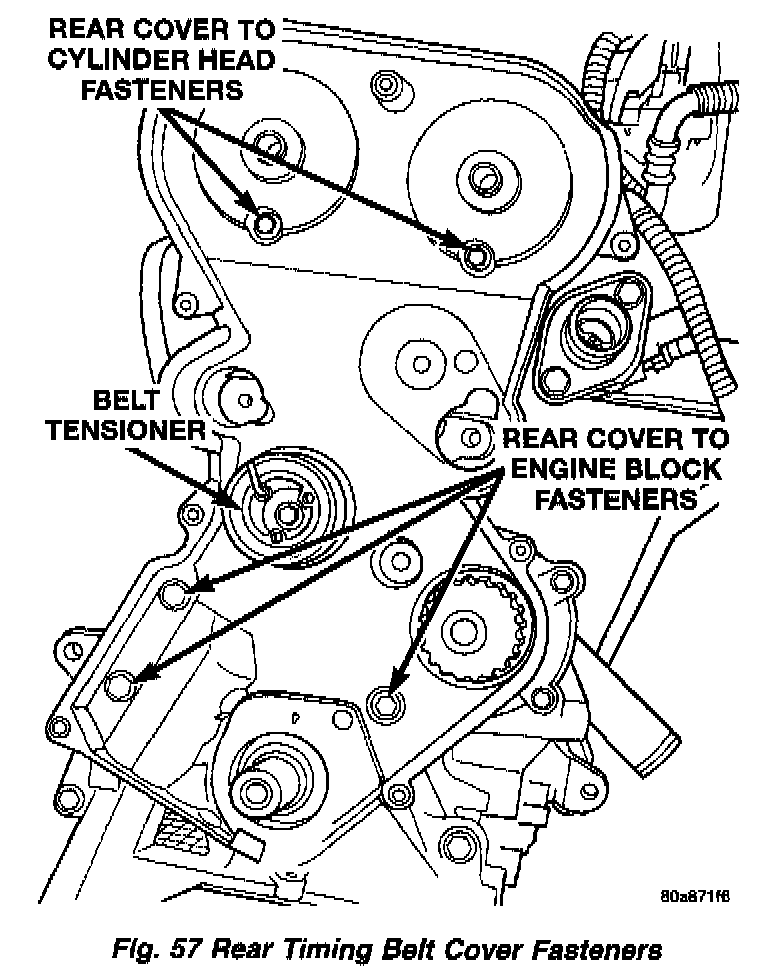

Rear Timing Belt Cover Fasteners:

5. Remove rear timing belt fasteners and remove cover from engine.

Installation
1. Install rear timing belt cover and fasteners.
2. Install timing belt idler.
3. Install camshaft sprocket and timing belt.
4. Install engine mount bracket.
5. Install front covers.
