Transmission Speed Sensor: Locations

Input Speed Sensor/Output Speed Sensor:

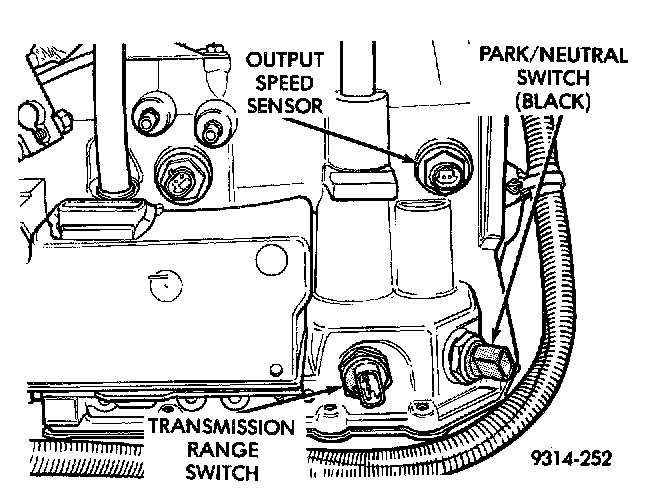

Output Speed Sensor, Park/Neutral Switch (Black), Transmission Range Switch:
