Qualifying A "No Start" Condition

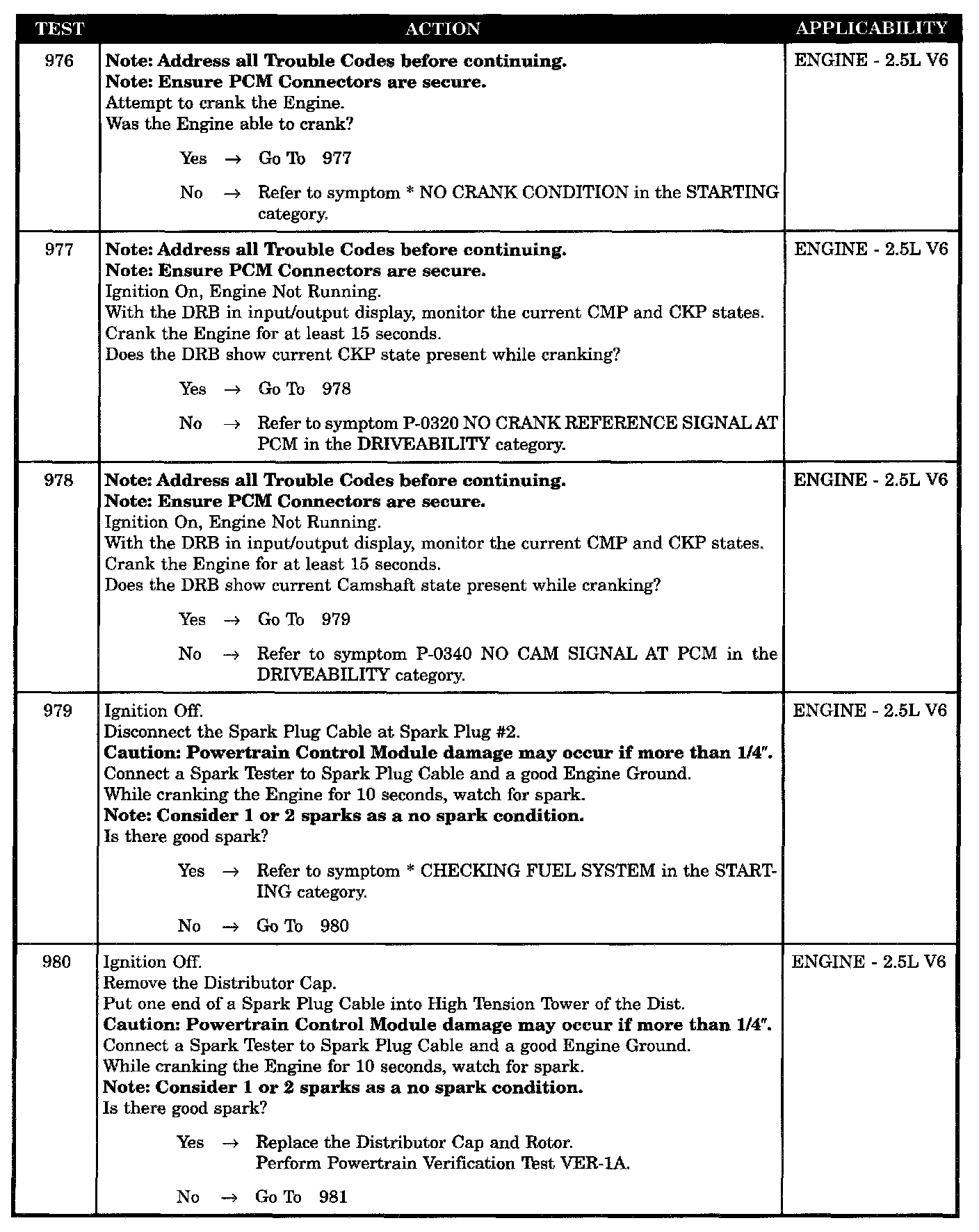

Tests 976 - 980:

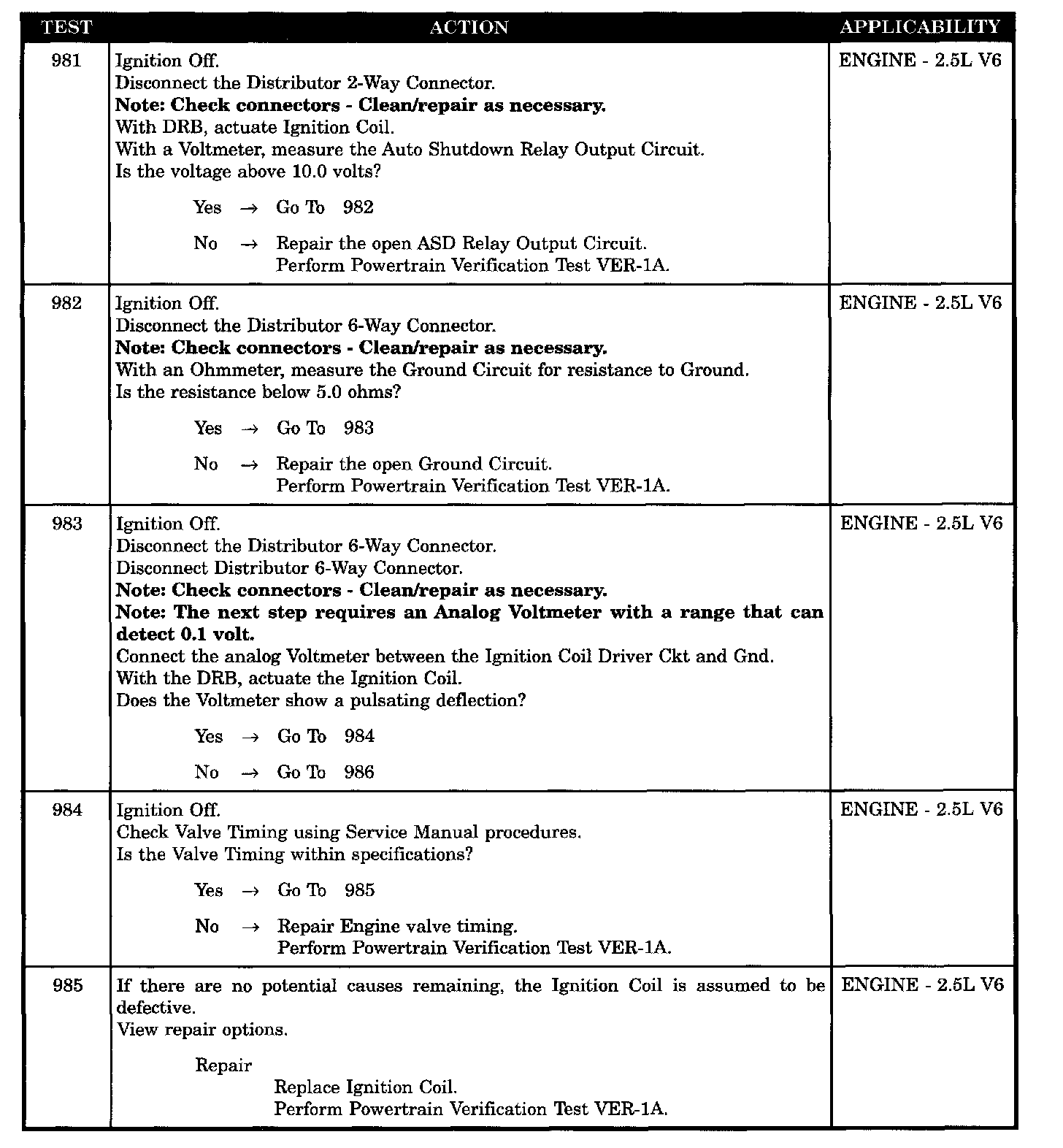

Tests 981 - 985:

Tests 986 - 988:

SYMPTOM: * QUALIFYING A NO START CONDITION

POSSIBLE CAUSES
- ASD relay output circuit open
- Ground circuit open
- Distributor cap and rotor defective
