Lock Cylinder Switch: Service and Repair

REMOVAL

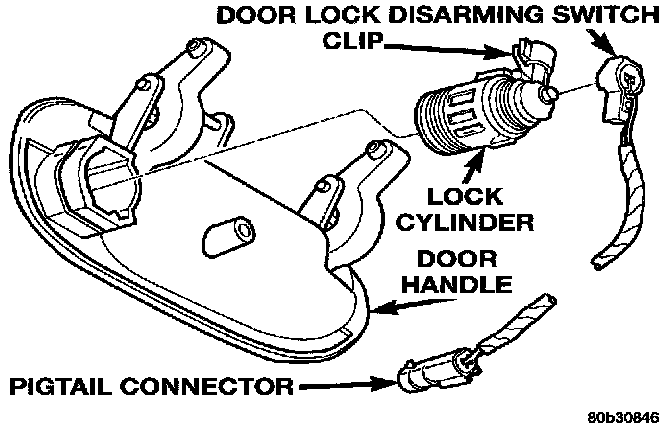

Central Locking Switch:

1. Disconnect wiring clip and pigtail wire connector.
2. Remove the Door Key Cylinder Switch from door lock cylinder.

INSTALLATION
For installation, reverse the above procedures.
