Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
Schematic Diagrams
Schematic Diagrams

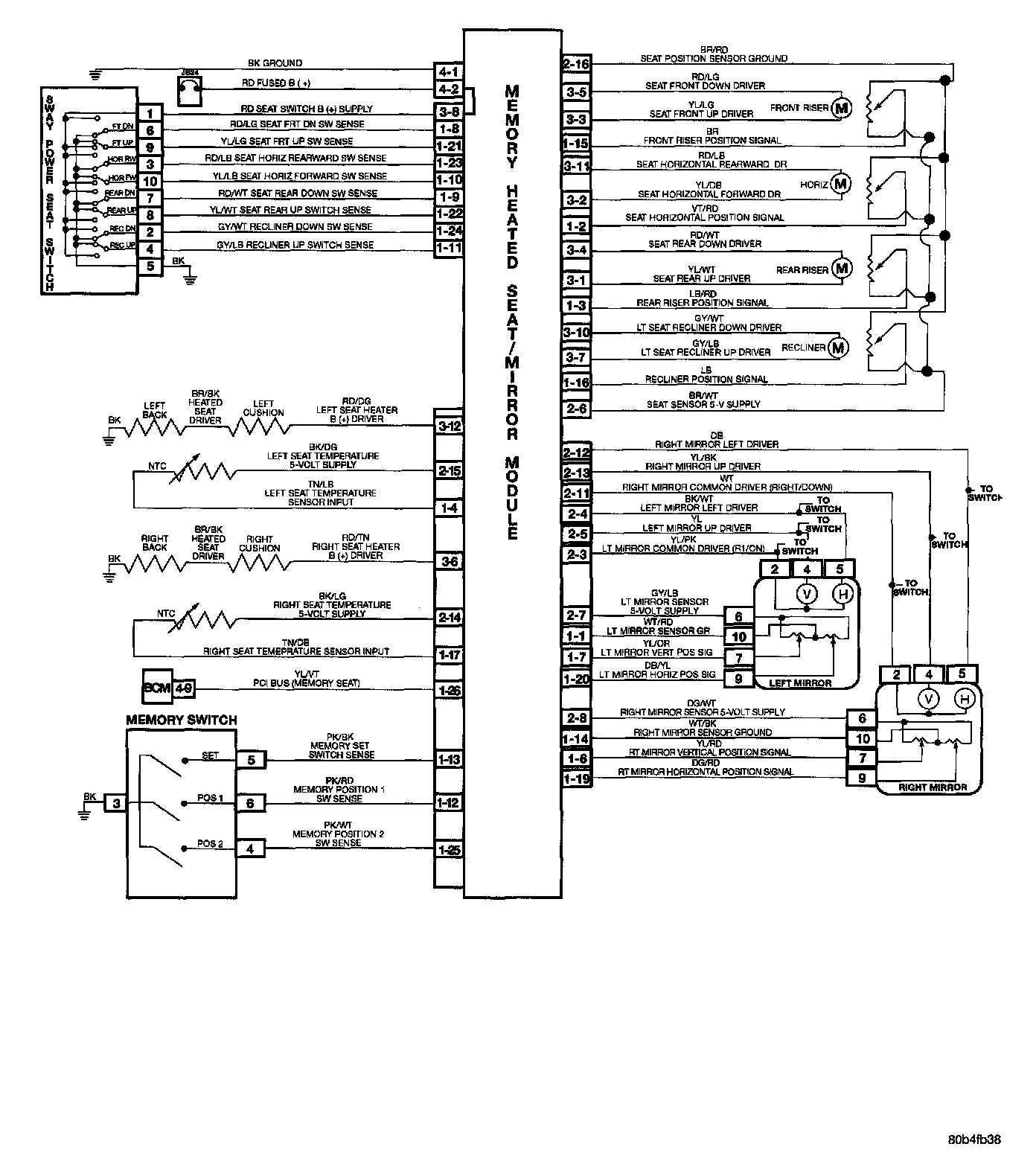

Memory/Heated Seats/Mirror System:
