System Diagram
System Diagram

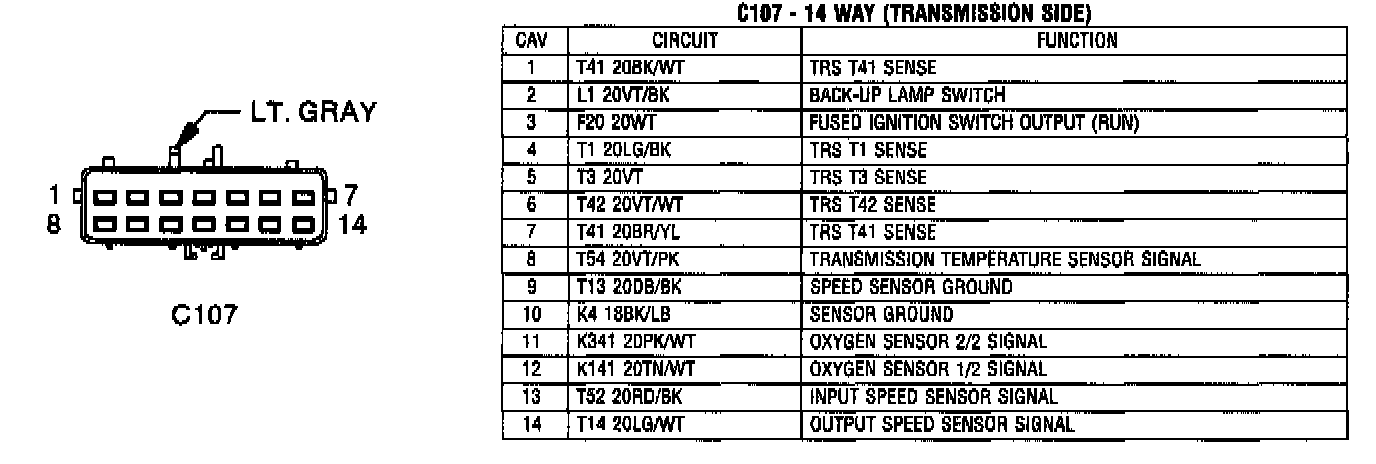

C107 - 14 Way (Transmission Side):
C108 - 10 Way (Transmission Side):
TRANSMISSION SIDE CONNECTOR PIN-OUTS
